34
Version 2.0, Revision I
Instrument Setup
4

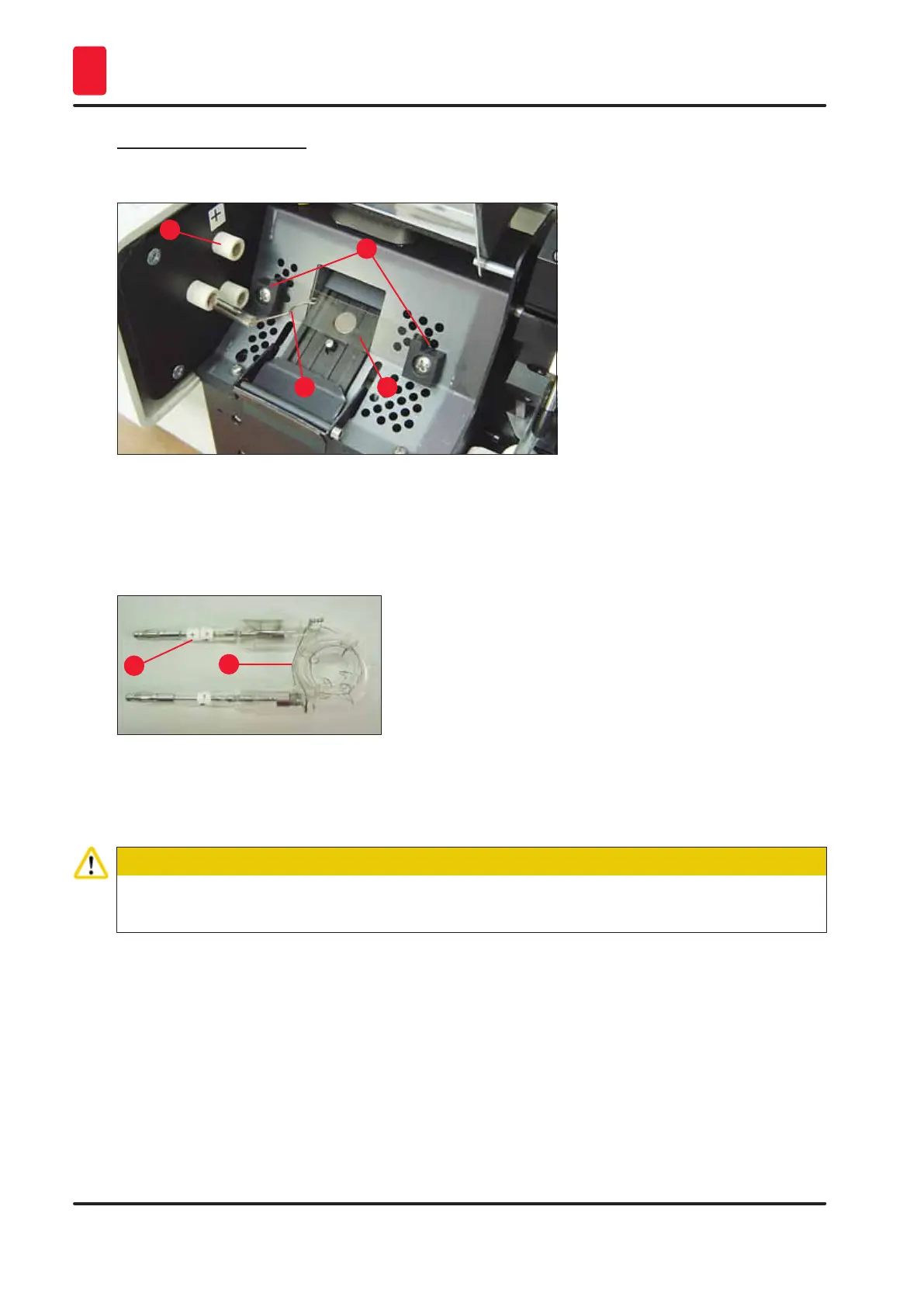

Inserting the new flash bulb
1. First insert a shielding glass (→ "Fig. 21-1") into the two holders (→ "Fig. 21-2").
1
3
2
4
Fig. 21
2. Insert the new flash bulb (→ "Fig. 22") into socket (→ "Fig. 21-3"); then push it carefully
inwards as far as it will go (→ "Fig. 24") (the polarity marker (+) must not be visible any longer).
If necessary, move flash bulb gently up and down.
1
2
Fig. 22
3. Make sure that the bulb is inserted correctly. The electrode marked with + (→ "Fig. 23-1") has
to be inserted into the socket (→ "Fig. 21-3") with the same mark (→ "Fig. 23-2").
Caution
If the bulb electrodes are inserted the wrong way, the flash bulb will still function, but the bulb's life
will be considerably reduced.
