RTJ400 User Guide
Chapter 13
Box Joint Procedures - 3/32"

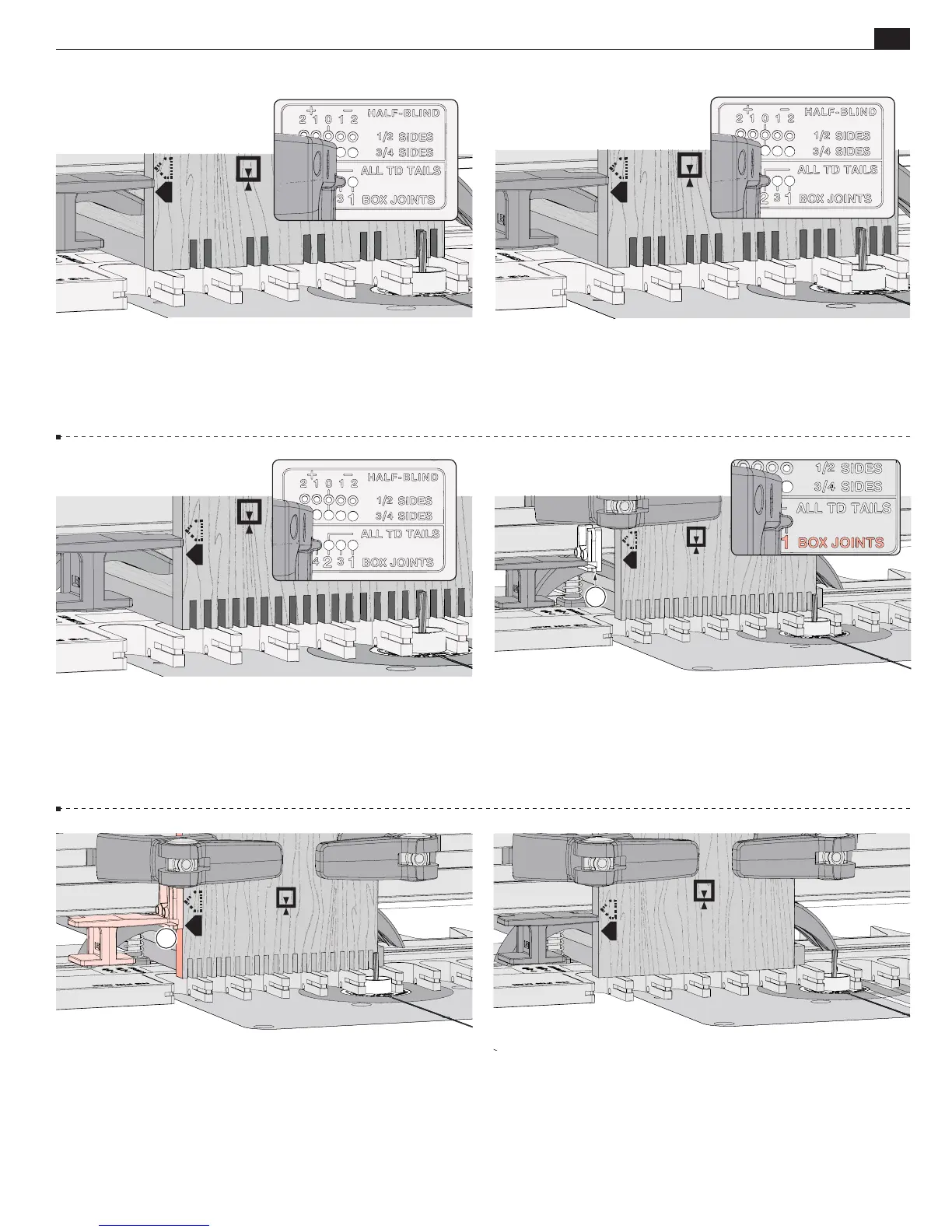

13-25 Remove the routed pin board and the blocker .
Clamp socket board 1 against the repositioned sidestop with its
bottom edge flush on the template.
A
13-20 Leave the board in place. Unlatch the frame and
move the right frame pin to position 3. Rout in every template
opening.
13-21 Leave the board in place. Unlatch the frame and
move the right frame pin to position 2. Rout in all openings.
13-22 Leave the board in place. Unlatch the frame and
move the right frame pin to position 4. Rout in every template
opening. Unclamp and flip the board, keeping the same edge
against the sidestop. Clamp the board. Repeat the steps in reverse
order. Remove pin board 1. Repeat procedure for pin board 2.
13-23 Leave pin board 2 in place and do not unlatch
the frame. Loosen the sidestop and move it away from the
board. Note: The right frame pin should already be in position 1.
Attach one of the blockers to the sidestop. Make sure the blocker
is seated firmly against the sidestop
A
.
13-24 Leave the board in place. Move the sidestop, with
the blocker attached, against the board and tighten it
A
.
