RTJ400 User Guide
Chapter 13
Box Joint Procedures - 3/32"
A
B
OVER FLUSH UNDER FLUSH
13-30

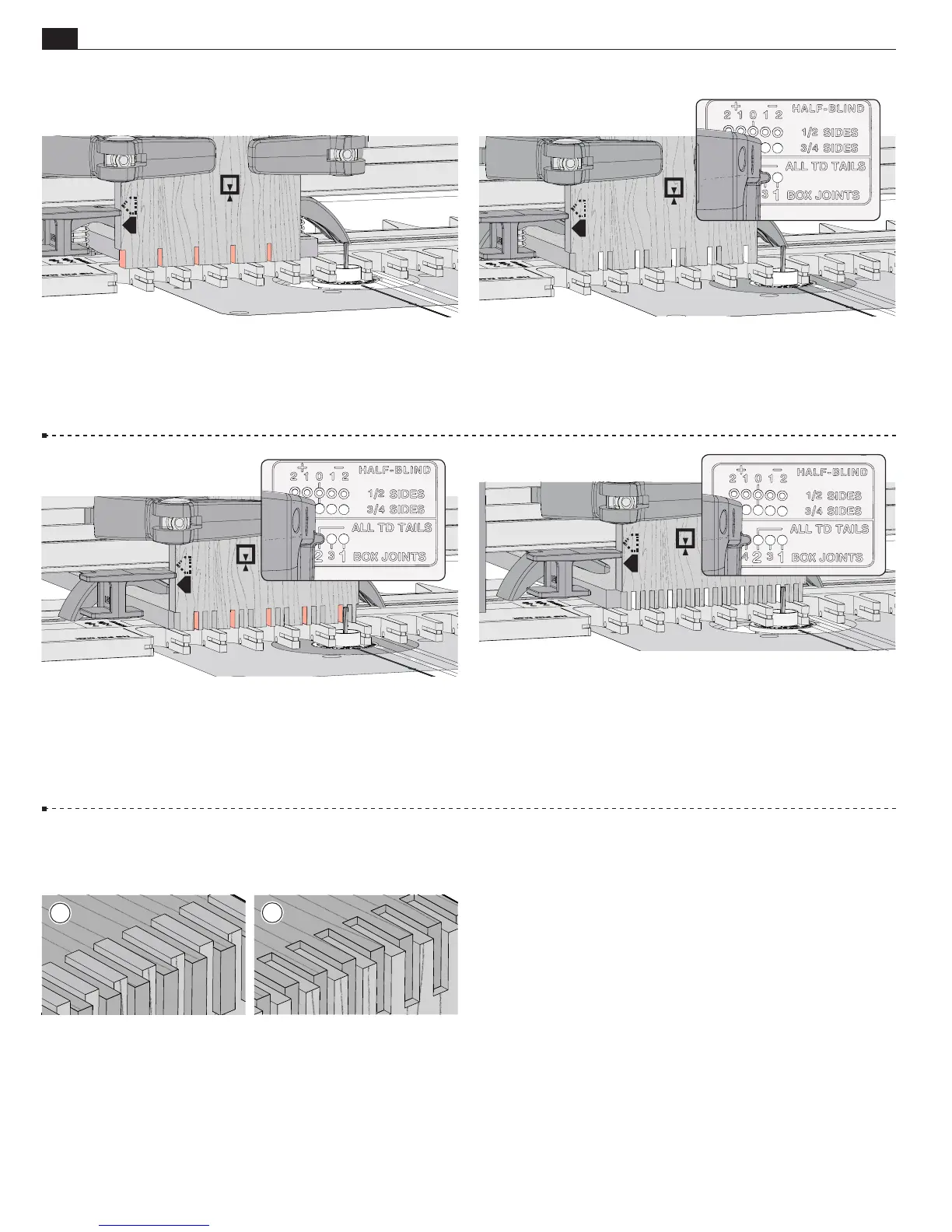

If the joint is over flush
A
, lower the bit to suit. If the
joint is under flush
B
, raise the bit to suit. Rout a fresh test
joint until fit and flushness are perfect before routing the actual
workpieces.
■
13-29 Leave the board in place. Unlatch the frame and
move the right frame pin to position 4. Rout in every template
opening. Unclamp and flip the board, keeping the same side edge
against the sidestop. Clamp it and repeat the steps in reverse order.
Remove socket board 1. Repeat the procedure for socket board 2.
Remove socket board 2. All boards are now complete and ready
for assembly.
13-27 Leave the board in place. Unlatch the frame and
move the right frame pin to position 3. Rout in every template
opening.
13-28 Leave the board in place. Unlatch the frame and
move the right frame pin to position 2. Rout in every template
opening.
13-26 Rout in and out of each template opening.
