Leister DRIVE - Tool description

13

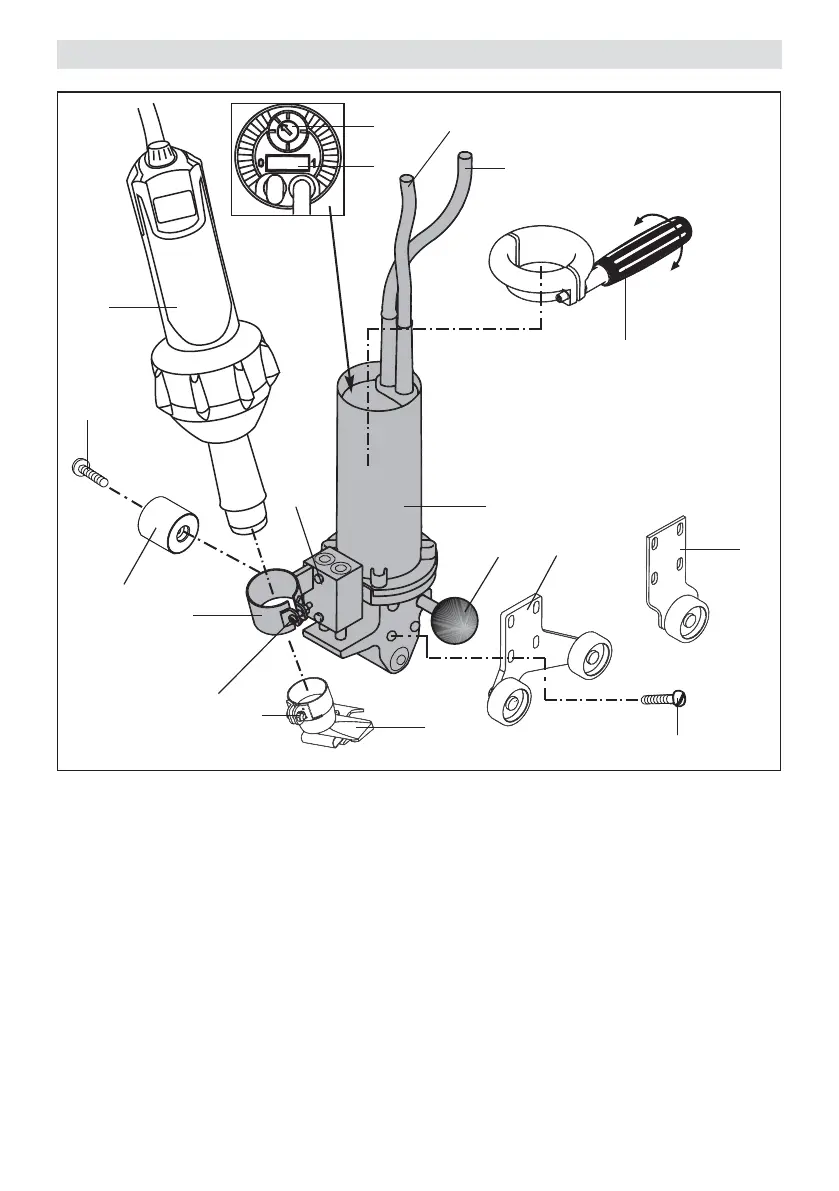

Tool description Leister DRIVE
1 Power supply cord plug
2 Power supply cord coupling
3 Mains switch
4 Potentiometer for welding speed
5 Drive unit
6 Holder for hot air blower
7 Two adjusting screws for holder
8 Double supporting carrier
9 Single supporting carrier
10 Four fixing screws for supporting
carrier
11 Pressure roller
12 Fixing screw for pressure roller
13 Hot air blower, TRIAC AT or TRIAC ST
14 Fixing screw for hot air blower
15 Guide handle
16 Overlap welding nozzle
17 Fixing screw for overlap welding
nozzle
18 Tool stowage bar
For tool description for hot air blower, refer to TRIAC AT or
TRIAC ST operating instructions.
1
2
5
16
9
10
3
4
6
13
17
7
11
14
15
8
18
12
