Adjustments
68
10.2 Lateral draw
The front and rear oblique positioned hollow discs create opposite lateral forces,
which are compensated. If there is still lateral draw noticeable, it can be eliminated
as follows:
Lateral draw to the right => Turn lop link longer
Lateral draw to the left => Turn top link shorter

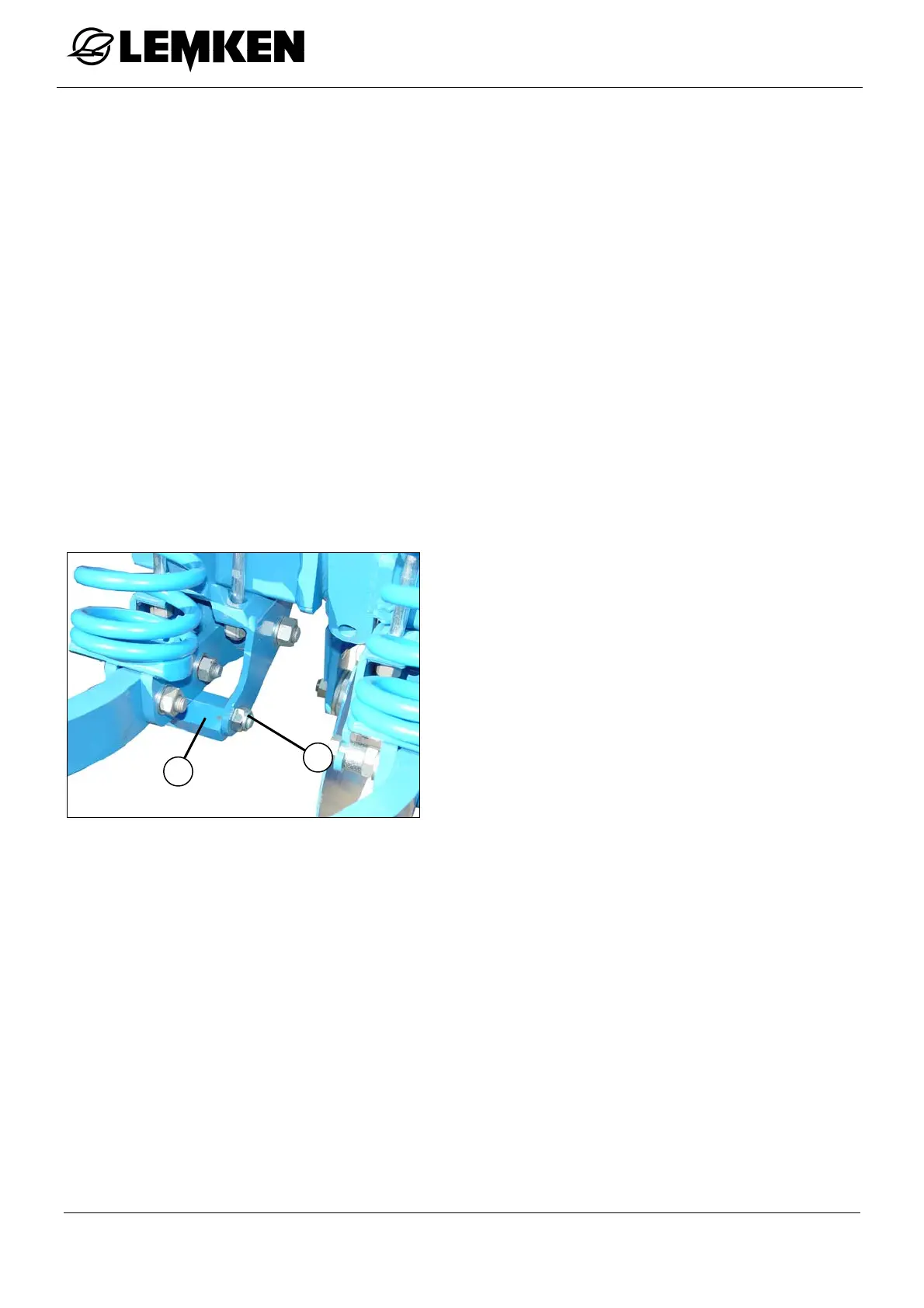

10.3 Working depth of left rear hollow disc
The left rear hollow disc can be set slightly
lower through an eccentric in relation to the
remaining hollow discs as and when requi-
red. This is necessary if these hollow discs
leave a furrow behind them that cannot be
sufficiently levelled.
Release the nut (1).
Rotate the eccentric (2) using a size 41
open end spanner into the required posi-
tion.
Tighten the nut (1) again.
2
1
