Adjustments
71

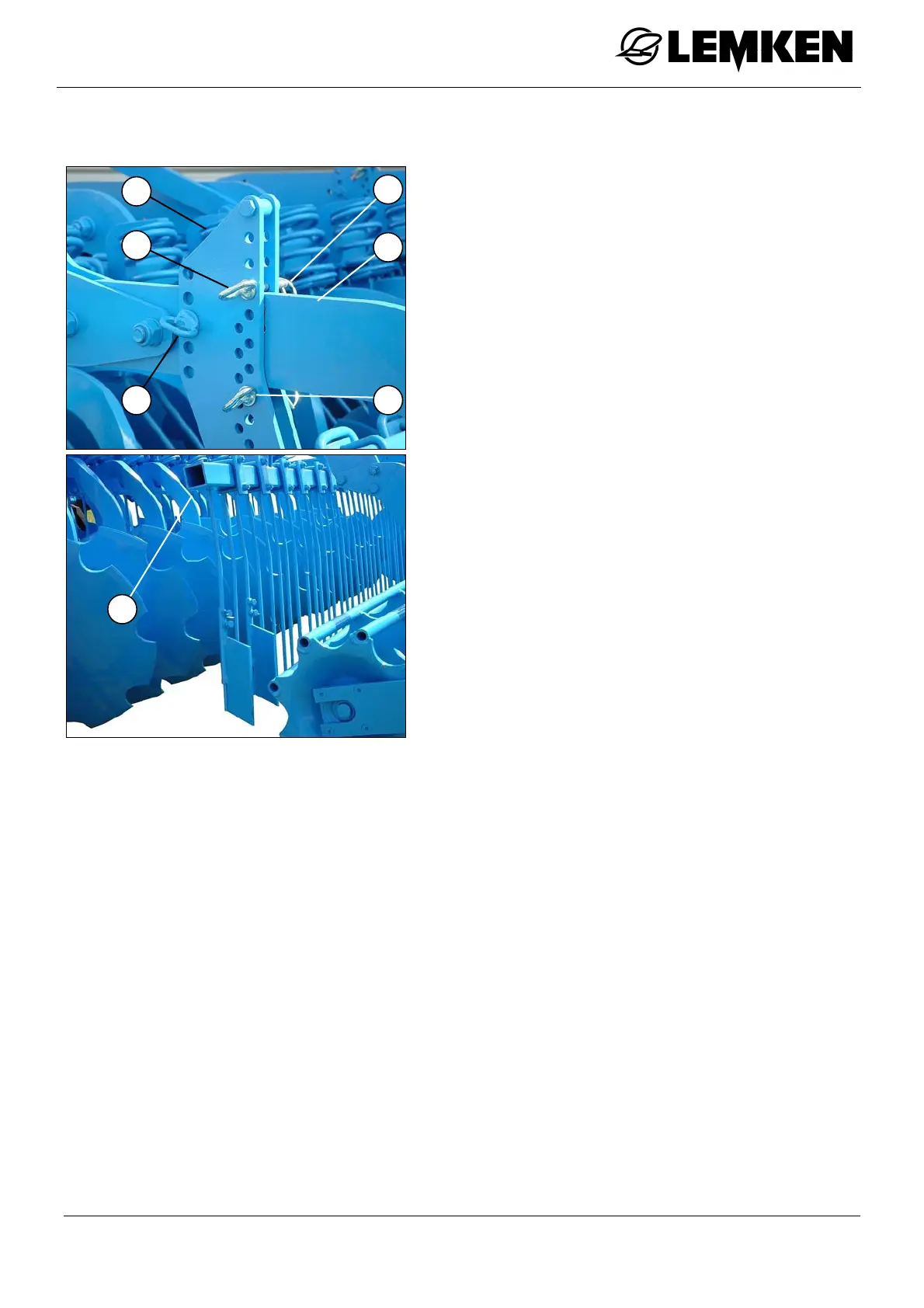

10.5.1 Adjusting the distance
Release the guide pins (2) by removing
the linch pins (5).
Remove the guide pins (2).
The corresponding rebound harrow (1) is
held in place by the guide pins (4).
Move the corresponding rebound harrow
(1) so that the required distance of the
rebound harrow from the hollow discs is
reached and so that a bore of the front
bore line on the console (6) lines up with
a bore in the carrier (7).
Insert the linch pin (2) so that it holds the
rebound harrow in that position.
2
4
5
3
6
7
1
