Adjustments
77

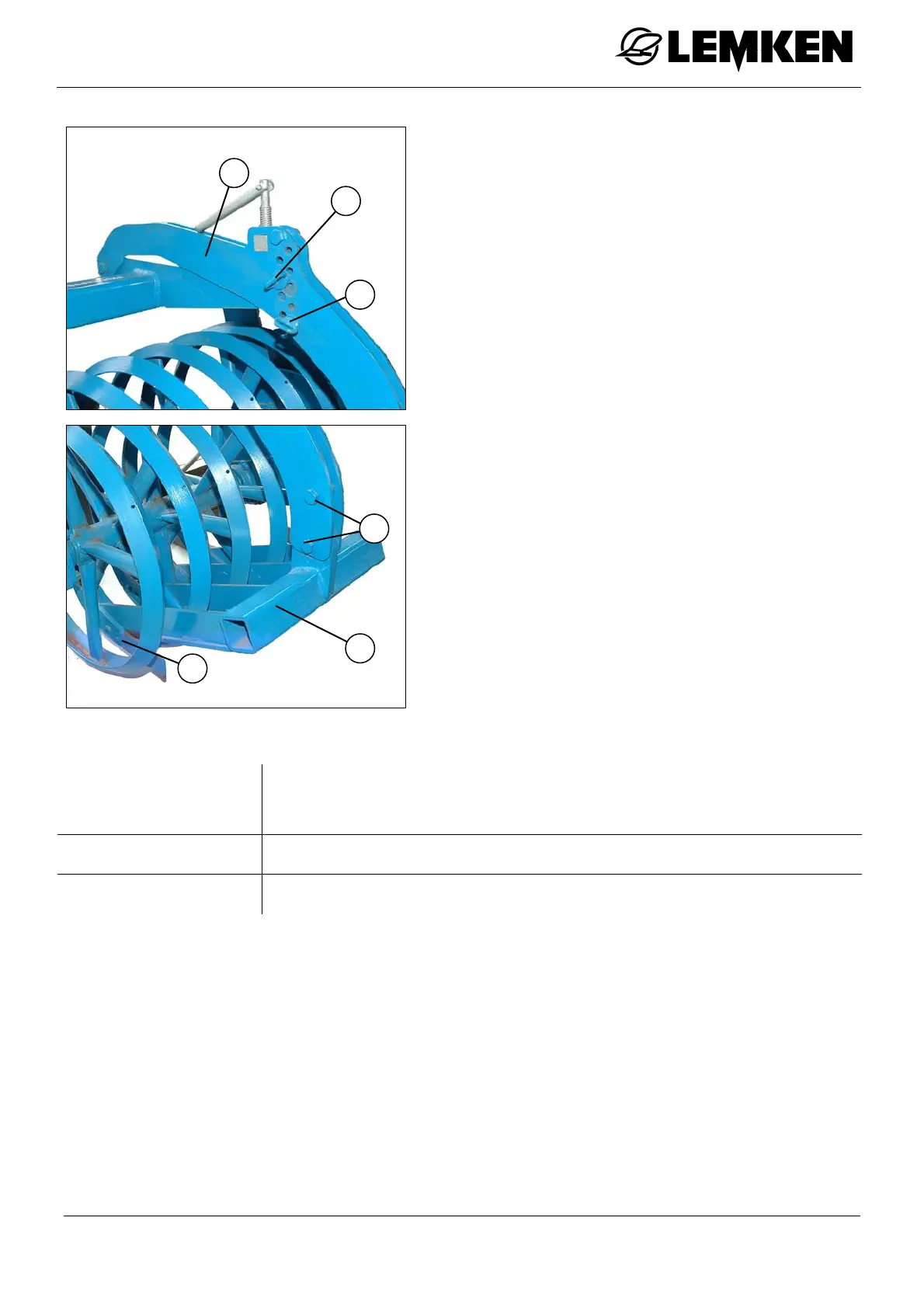

Movement of blades
The upward movement of the blades (6) is
limited using the guide pins (5). If necessa-
ry, slight movement upwards can be per-
mitted.
Position of blades
The blades are generally screwed onto the
blade frame (7) in the front position. In ca-
se of wear, the blades (6) can be moved
backwards.
Adjusting the blade frame
If the adjusting range using the guide pins
(3) is insufficient, the blade frame (7) can
be moved higher in relation to the suppor-
ting arms (4). To do this, remove the
screws from the holes (8) and move the
blade frame (7).
Adjusting positi-
on
High
For extremely sticky or light soil conditions
Low
For greater working intensity
5
4
3
6
8
7
