4
C. This is the location where no system demand will be active. For example, in
gure 1, the system would be off between A and B locations.
NOTE: By default, the system is congured not to allow the heating and
cooling settings to be any closer than three degrees when the system
is running in Heat • Cool mode (auto-changeover).
D. When there is an active call for heating, this area of the dial will have a red
background with yellow and dark red ames animation.
E. When there is an active call for cooling, this area of the dial will have a blue
background with snow akes animation.
F. The yellow line indicates the actual room temperature on the temperature
dial indicator.
Screen Elements
2:31 am
heat−to
cool−to
80
inside
57%
heat/cool
away
0
Ⓒ
Ⓑ
Ⓐ
Ⓔ
Ⓓ
Ⓕ
modes /schedules
78
75
tue | Mar 31, 2015
living room
ⒼⒽ
Ⓘ
Ⓙ
outside
88
o
99
78
o
o
9
Ⓚ
Ⓛ
Ⓜ
Ⓝ

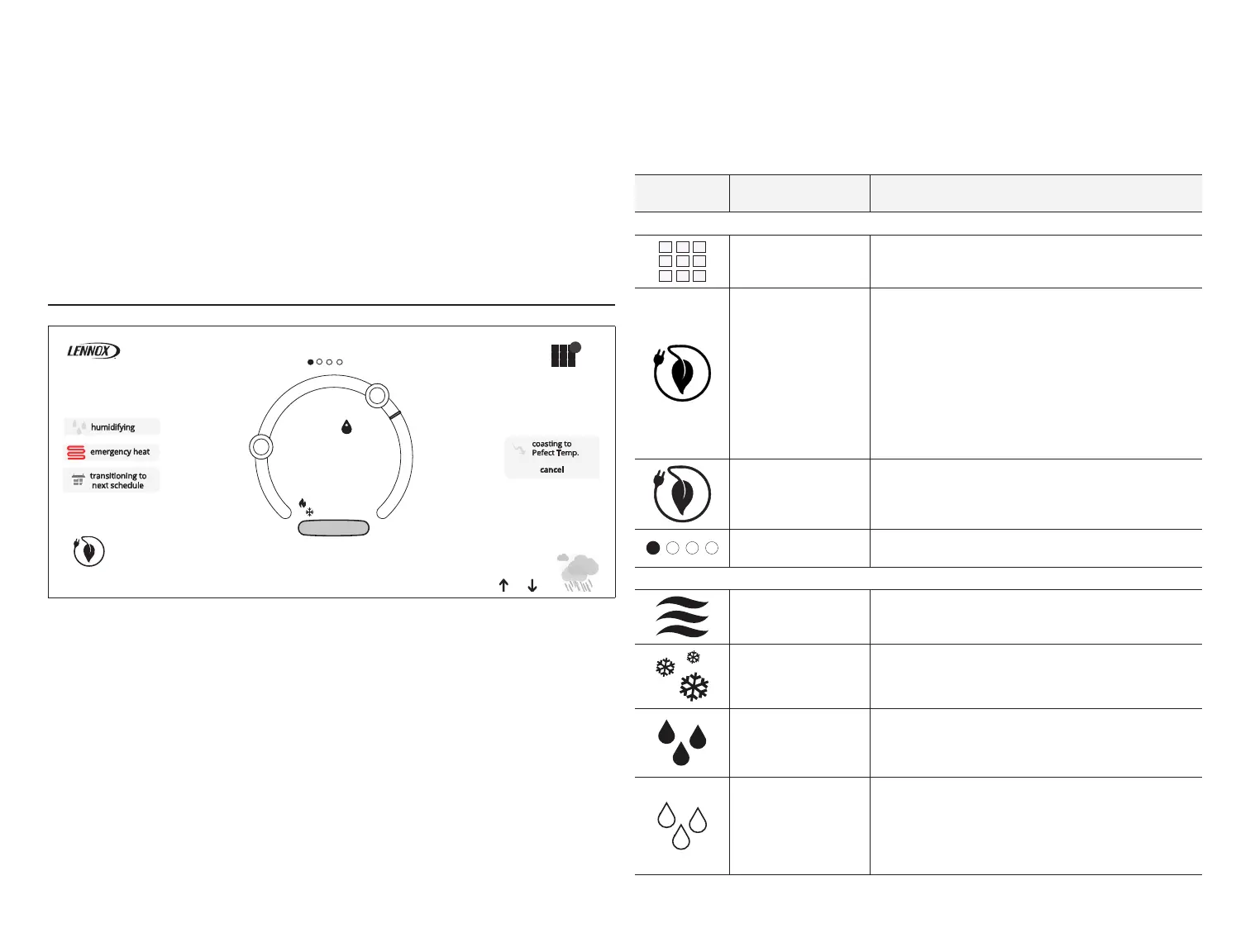

Figure 2. Screen Elements
A. The MENU button is for accessing following options:
• Settings (see “System Settings” on page 8.)
• Notications (also reminders) (see “Notications (Critical, Warnings
and Reminders)” on page 19.)
B. A circle with a number indicates new notications. Touch menu >
notications to display active notications. Types of notications include:
critical, warnings, reminders and general information. This can also be
sorted by last 24 hours, last 30 days, last 12 months or all notications.
C. This is the current time, day of the week and date (month/day/year). This
information can be adjusted from menu > settings > general > date &
time screen.
D. For information on home screen zone navigation, go to “Home Screen Zone
Navigation” on page 21.
E. System Status - Left Side of Screen: This area displays various functions
that are either pending or currently active. Indicators are humidifying,
dehumidifying, cooling, heating, ambient lockout, emergency heat, cleaning
air, transitioning to next schedule, load shedding and fan is running.
Indicators are:
Table 1. Home Screen and System Status Icons
Icon Screen Text Purpose
Home Screen Icons
Menu
Selecting this icon will bring up user and installer
menus.
Away
When the away icon is touched, the system will
automatically use energy saving settings - heat-to 62
(16.5) and cool-to 85 (29.5). Temperatures can be
adjusted by pressing on the available temperature
setting (i.e., heat-to or cool-to). To exit away, press the
cancel icon. In a zoning system, all zones are set to
a single heat-to and cool-too setting. Note that when
manually selecting Away from the home screen, the
Smart Away feature (if enabled under settings) will be
temporally disabled until Away is canceled. See page
10 for additional information.
Smart Away
is Canceled
for Now
If you are enrolled in Energy Savings with your utility
company (California only), this will appear if your
system is in Smart Away mode and a energy savings
event is started.
Available
zones
In a zoning system, indicates up to four zones screens
(S30 only).
System Status - Left Side of Screen
Heating System is heating the home
Cooling System is cooling the home.
Humidifying
If humidication equipment is installed and congured,
the system will display this message when adding
humidity to the air in the home.
Dehumidifying
The system can be used in cooling mode to help
remove excessive humidity as determined by the user
setting. Go to menu > settings > humidity > and turn on
dehumidify. Then adjust the acceptable low and high
humidity levels in the home with the dehumidication
set-point slider.
