5.0. INSTALLATION INSTRUCTIONS
5.1. Installation Location
• Position the unit away from direct sunlight for optimum peormance. Install the unit in a position
away from dust and potential debris.
• Always position the unit away from combustible, flammable and corrosive gas or exhaust gas.
• Never allow children to approach the unit and take measures to prevent children touching the unit.
• Install the unit in a location that can support the weight of the unit. Ensure the unit is correctly
anchored as per national and local regulations, codes and standards.
• Allow the recommended clearances around the unit to optimize heat exchange and service access.
• Keep the indoor and outdoor units as close as possible to minimise pipe length and bends.
5.2. Outdoor Unit Clearances
• When the outdoor unit is surrounded by walls, the installation space of the unit should be allowed
as depicted in Figure 3.

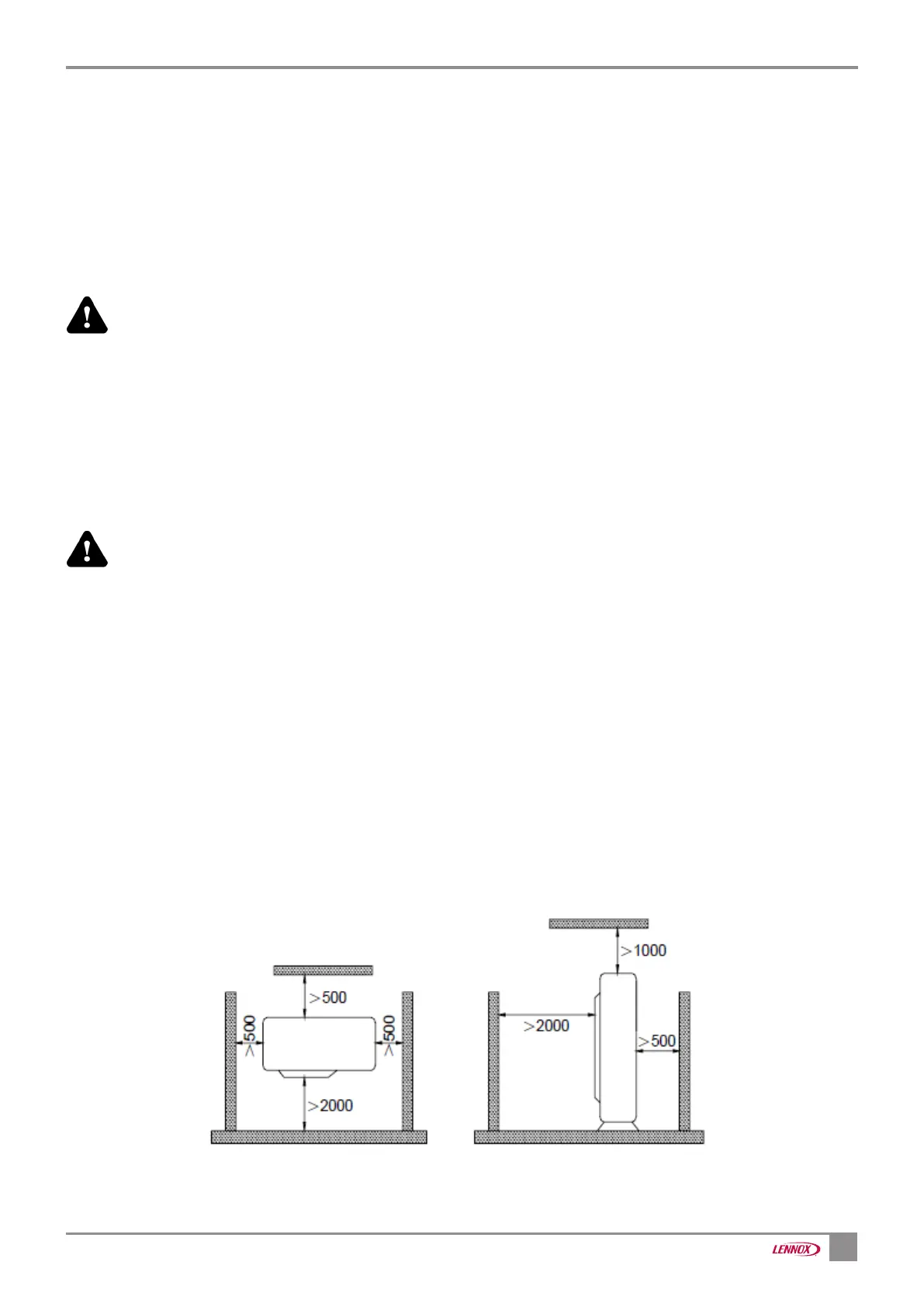

Figure 3: Outdoor Unit Clearances
13 23 50 | lennoxaus.com.au
LENNOX MULTI SPLIT INVERTER
Outdoor Unit
WARNING
CAUTION
