3.2. Combinations for Outdoor and Indoor Units
• See Figure 2 for combinations of outdoor and indoor Units. For the Multi Split System, one outdoor
unit can be connected to up to five indoor units (wall split, cassette, or slim line ducted). The outdoor
unit will run if any one indoor unit receives the running command, and all indoor units stop once
the outdoor unit is turned o.

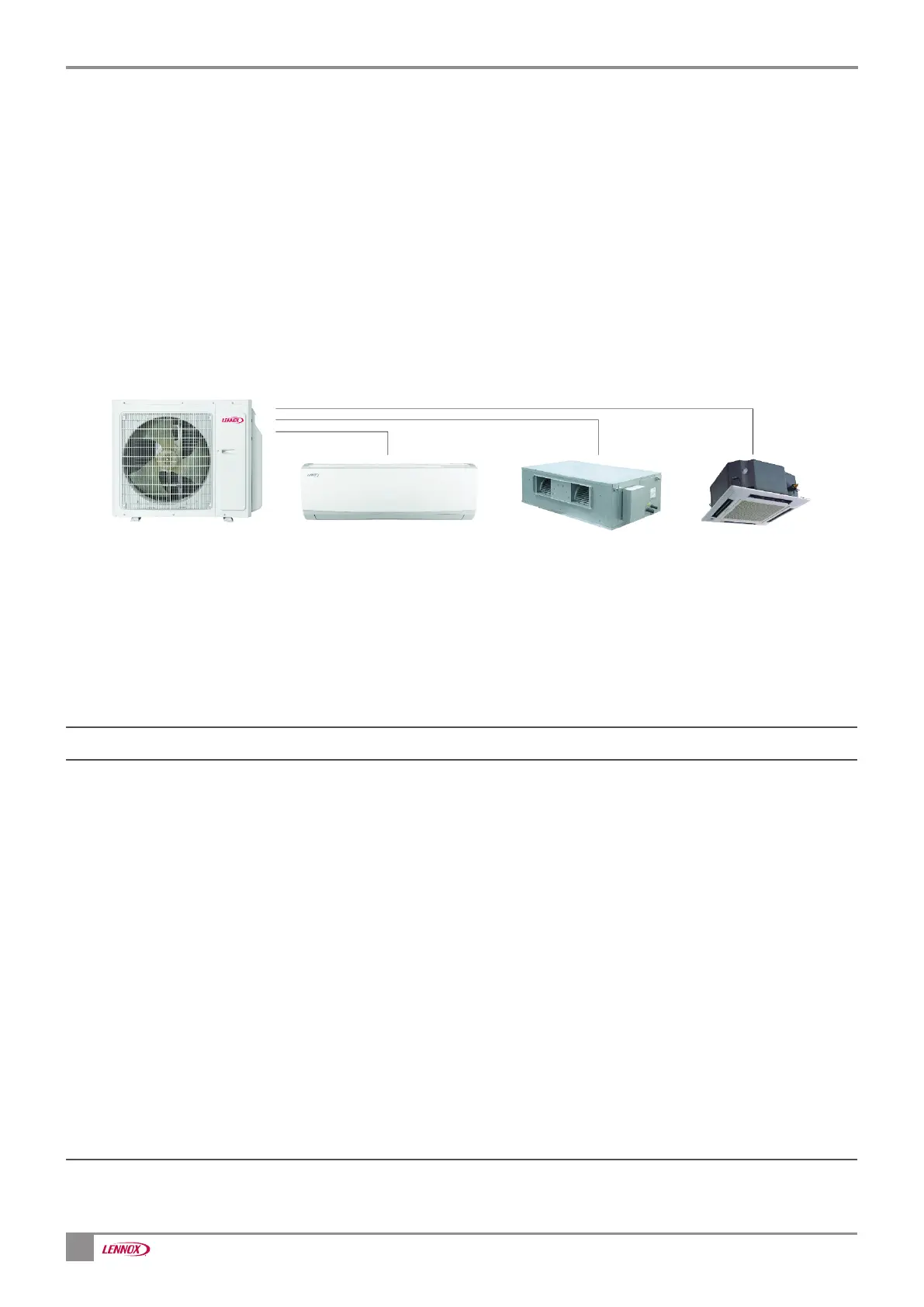

Figure 2: Combinations for Outdoor and Indoor Units
Table 2: Indoor Unit Energy Level and Capacity
Indoor unit Model Capacity (kW) Outdoor unit
Wall Split LNINVE025V4 2.5 LNMT100V4
LNMT114V4
LNINVE035V4 3.5
LNINVE052V4 5.2
LNINVE071V4 7.1
LNINVE085V4 8.5
Cassette LNMTCAS035V4 3.5 LNMT100V4
LNMT114V4
LNMTCAS050V4 5.0
LNMTCAS071V4 7.1
Slim Line Ducted LNMTDSS035V4 3.5
LNMTDSS050V4 5.0
LNMTDSS060V4 6.0
LNMTDSS071V4 7.1
13 23 50 | lennoxaus.com.au
LENNOX MULTI SPLIT INVERTER
Outdoor Unit
Wall Split
Indoor Unit
Cassette
Indoor Unit
Slim Line
Ducted Indoor Unit

Lennox 4 Series Specifications

General

Brand	Lennox
Model	4 Series
Category	Air Conditioner
Language	English
