507621-01Issue 1720Page 6 of 23
Right-Hand Air Discharge
For horizontal right-hand air discharge, the following eld
modications are required.
1. Remove and set aside blower and coil access panels.
2. Remove brackets securing pan to unit. See gure 4.

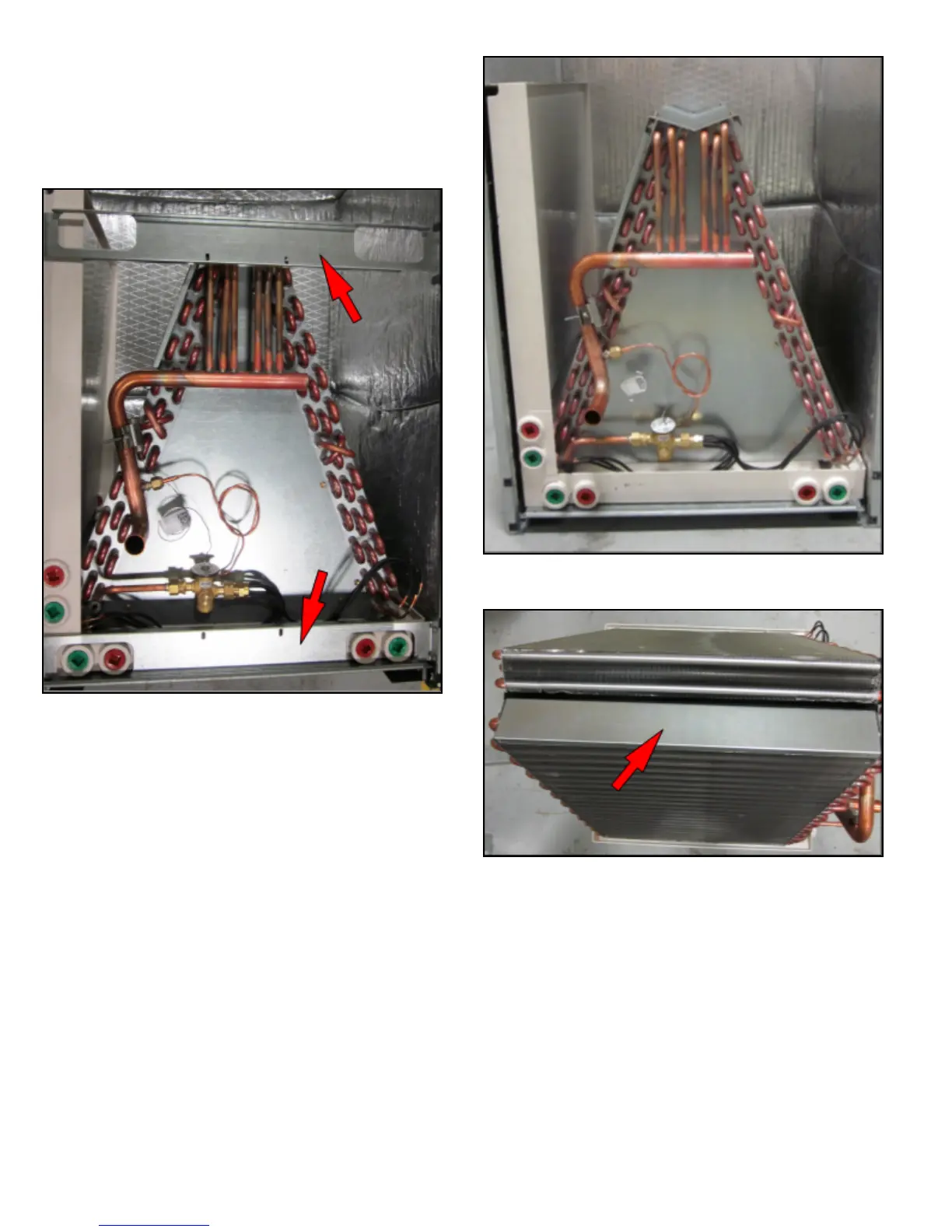

Figure 4
3. Remove coil assembly, bottom drain pan and
horizontal drain pan as one unit from the air handler.
See gure 5.
4. Remove the blow-off prevention brackets, top cap and
drip pan between slabs. Move the horizontal drain pan
to the opposite side of the coil. See gure 6.
NOTE: The 1.5- and 2-ton units do not have or require
blow-off prevention brackets or drip pan.
Figure 5
Figure 6
