Lennox BCE3M*C SERIES - Cover the Hairpins. See Figure

507621-01 Issue 1720 Page 7 of 23
5. Reinstall the top cap. Rotate the blow-off prevention
brackets 180º and reinstall using the same screws.
Use the correct mounting holes; the brackets must
cover the hairpins. See gure 7.

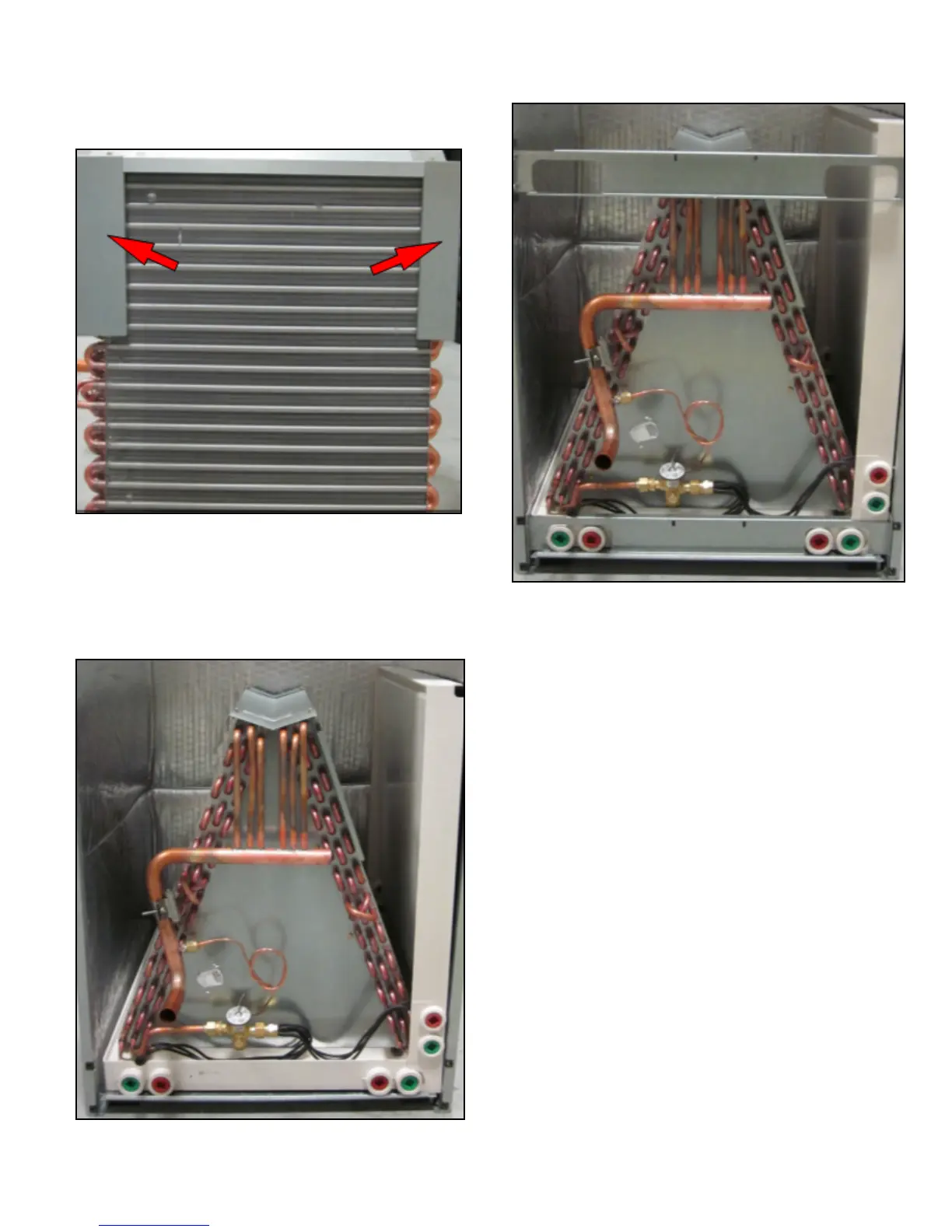

Figure 7
6. Slide coil assembly, bottom drain pan and horizontal
drain pan as one unit back into the air handler. See
gure 8.
Figure 8
7. Reinstall the brackets that hold the coil and horizontal
drain pan in place. See gure 9.
Figure 9
8. Reinstall the blower and coil access panels.
