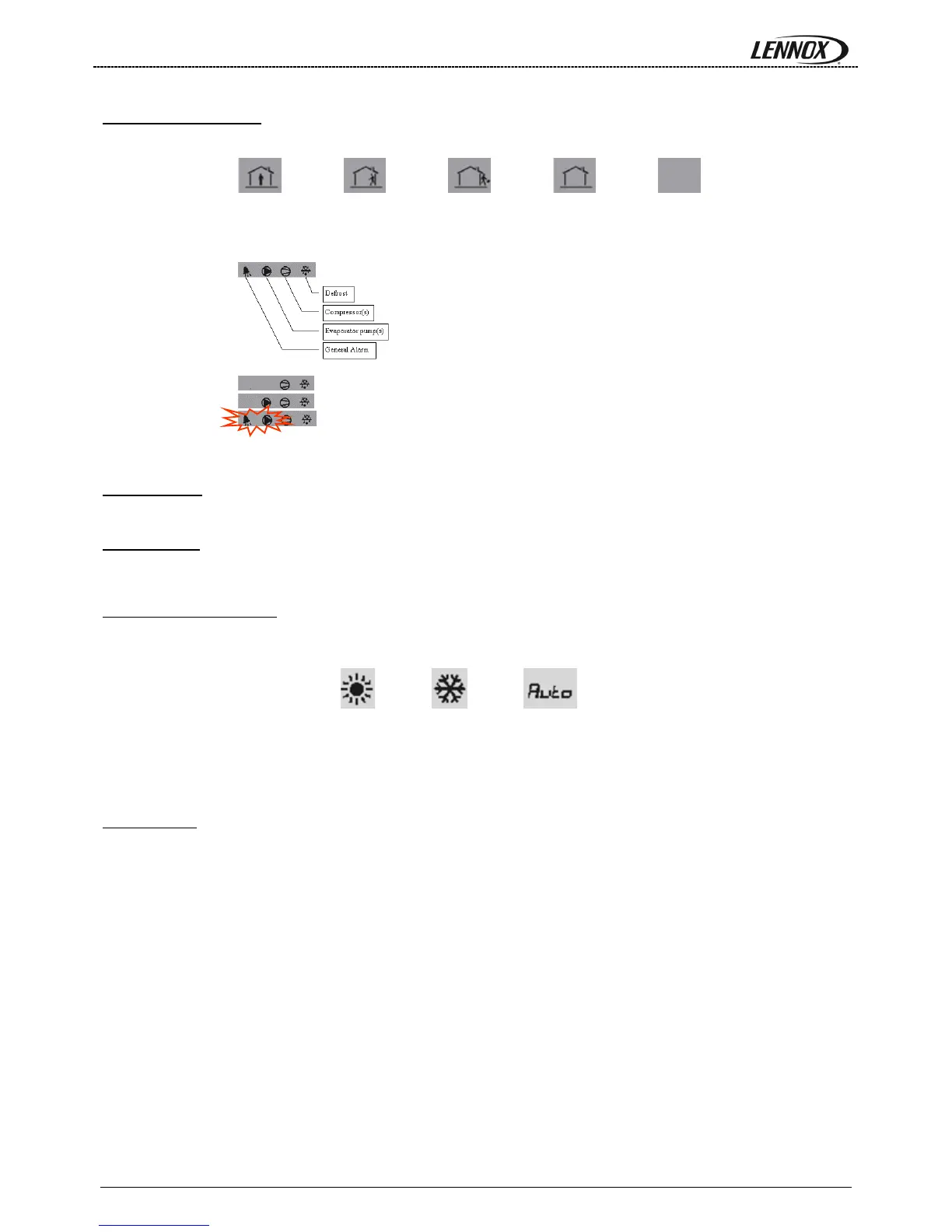

MUL41E-0610/06-2011 Page 37
22.2.13 - Schedule zone
specify the schedule operating zone.
Mode A, Mode B, Mode C, Mode D, Mode GTC.
The terminal DC60 also displays the status of the main component of the unit in the status area. The icons can
take different appearance according to the status of the component.
Pump OFF (icon hidden),
Pump ON (icon visible),
Pump alarm (icon blinking).
22.3 - Settings
The CLIMATIC™ 60 offers possibilities of override operations.
22.3.1 - On/Off
When the “power” button is pressed during few seconds, the unit is ordered to start or stop. When the unit is
“OFF”, the clock is displayed.
22.3.2 - Changeover mode
The changeover mode (cool / heat) can be modified by the terminal DC60 by pressing the “mode” button.
Heat Cool Auto
When the “Auto” mode is selected, the icon “Cool” or “Heat” is displayed to signal the actual operating mode of the
unit. Due to the communication delay, after pressing the “mode” button, it is well advised to wait few seconds, the
time to refresh of th icon on the display.
22.3.3 - Clock: There is two way to modify the clock hour:
a. Press the “clock” button during few seconds. When the hour blinking turn the wheel button to select
the desired hour and validate by pressing the wheel button. Once the hour validate, repeat the
procedure for the minute and the weekday.
b. Press the “On/off” and “Fan” buttons simultaneously during few seconds. When the terminal displays
“CODE” select the password “22” and validate by pressing the wheel button. Then select the item to
modify (“year” Year, “mont Month, “nday” day of the month, “uday” weekday, “hour” Hour,
“minS”Minute.
