23 - DISPLAY DS60
23.1 - Function
The DS60 terminal is a plug and play display, designed for maintenance and service people who want to access to
advanced functionalities.
23.2 - Description
The terminal address must be assign to establish the communication with the CLIMATIC™ 60. The procedure to
configure the DS60 is:

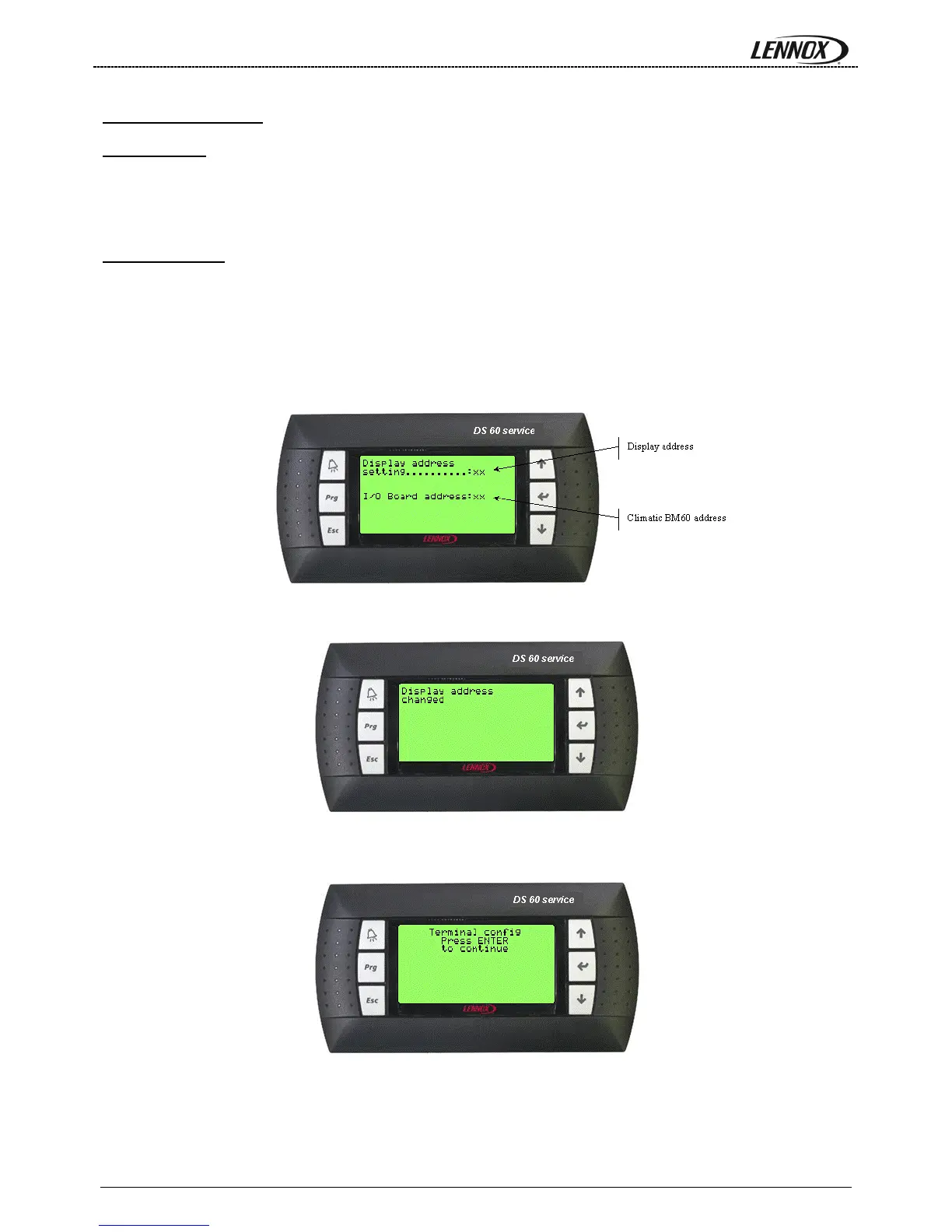

1) Press the buttons “↓”, “↑”, “←” keys at same time during 5 seconds,
2) Use the “←” key to move the cursor on the address number,
3) Use the “↓”, “↑” keys to select the value “31” for the DS60 (“32” for the DS50) and confirm with the “←” key
(The cursor go directly to the next data).
4) If the address has been modified, the next screen is displayed. In this case restart to the step 1).
5) Use the “↓”, “↑” keys to select the desired address of the CLIMATIC™ 60. The CLIMATIC™ 60 address
must be at the address “1” except if there is several units linked. The next screen is displayed.
6) Press the “←” key to go to the next step.
