CLIMATIC™ 60 AIRCOOLED CHILLERS
Page 12 MUL41E-0610/06-2011

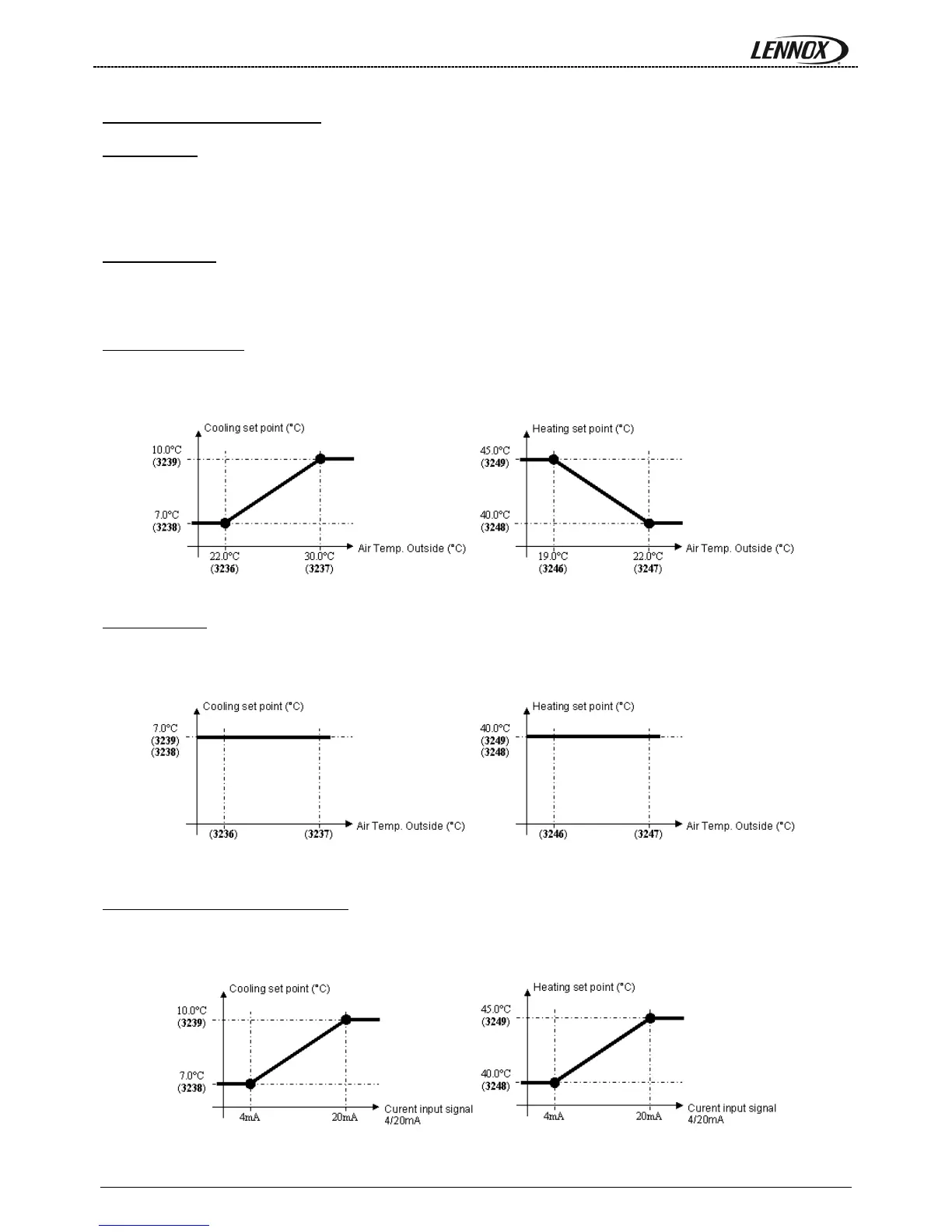

8 - WATER EVAPORATOR
8.1 - Function
The CLIMATIC™ 60 controls the chilled or heat temperature according to the specifyd set point. The desired set
point can be set by different solutions:
8.2 - Description
The CLIMATIC™ 60 offers various possibilities to specify the water evaporator set point.
8.2.1 - Dynamic value
The CLIMATIC™ 60 determines the appropriate water set point according to the outside temperature in order to
optimise the energy consumption. This method requires pre-defining 2 different water set points corresponding to 2
outside temperatures.
8.2.2 - Fix value
In this case the outside temperature has no effect on the water set point and the set point (3238) and (3239) must
be set at the same value.
8.2.3 - External current 4/20mA signal
In this case the actual set point is calculated according to the analog input current. The set point (3238) and (3239)
specifyd the corresponding set point for 4mA and for 20mA.
