MUL41E-0610/06-2011 Page 39

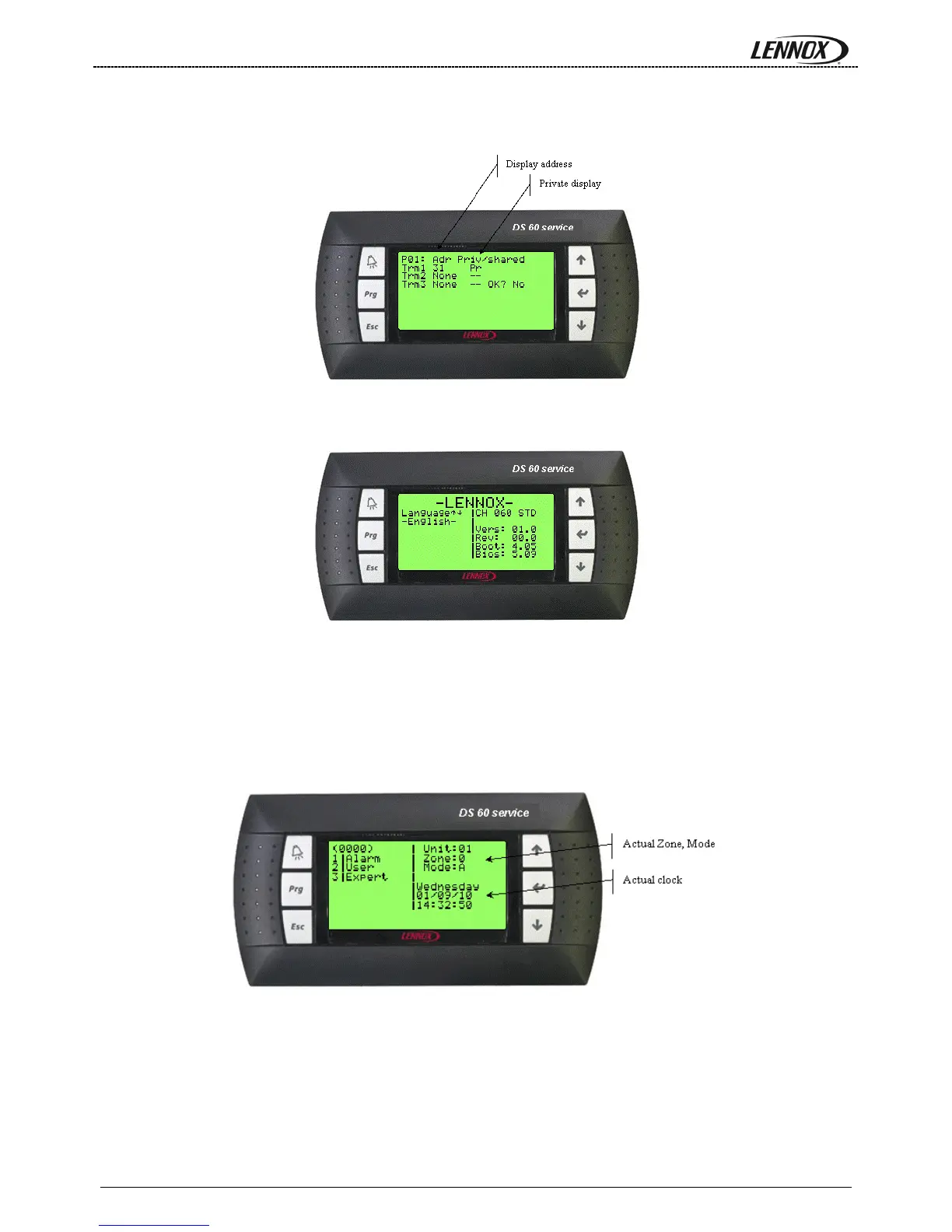

7) The following screen describe the type of connection used. Set the display as a Private “Pr” terminal. The
other terminals (Trm2 and Trm3) are not used. So their addresses must be adjusted to “None”. Finally
confirm the modifications and swapping the text “No” to “Yes” and validate with the“←” key.
The first screen after a start up contains the main information about the CLIMATIC™ 60‘s software.
The DS60 is organised in 3 menus:
• (1000): Historic of alarms,
• (2000): User menus for maintenance people,
• (3000): Expert menus for service people (restricted area).
To access to the historic of alarms, press the “ALARM” key when you are in the main menu (0000). The
CLIMATIC™ 60 saves up to the last 32 alarms. An alarm active is signal by the symbol “*” whereas an alarm
inactive is symbolized by the “=”.
