KP02 DIGITAL CONSOLE

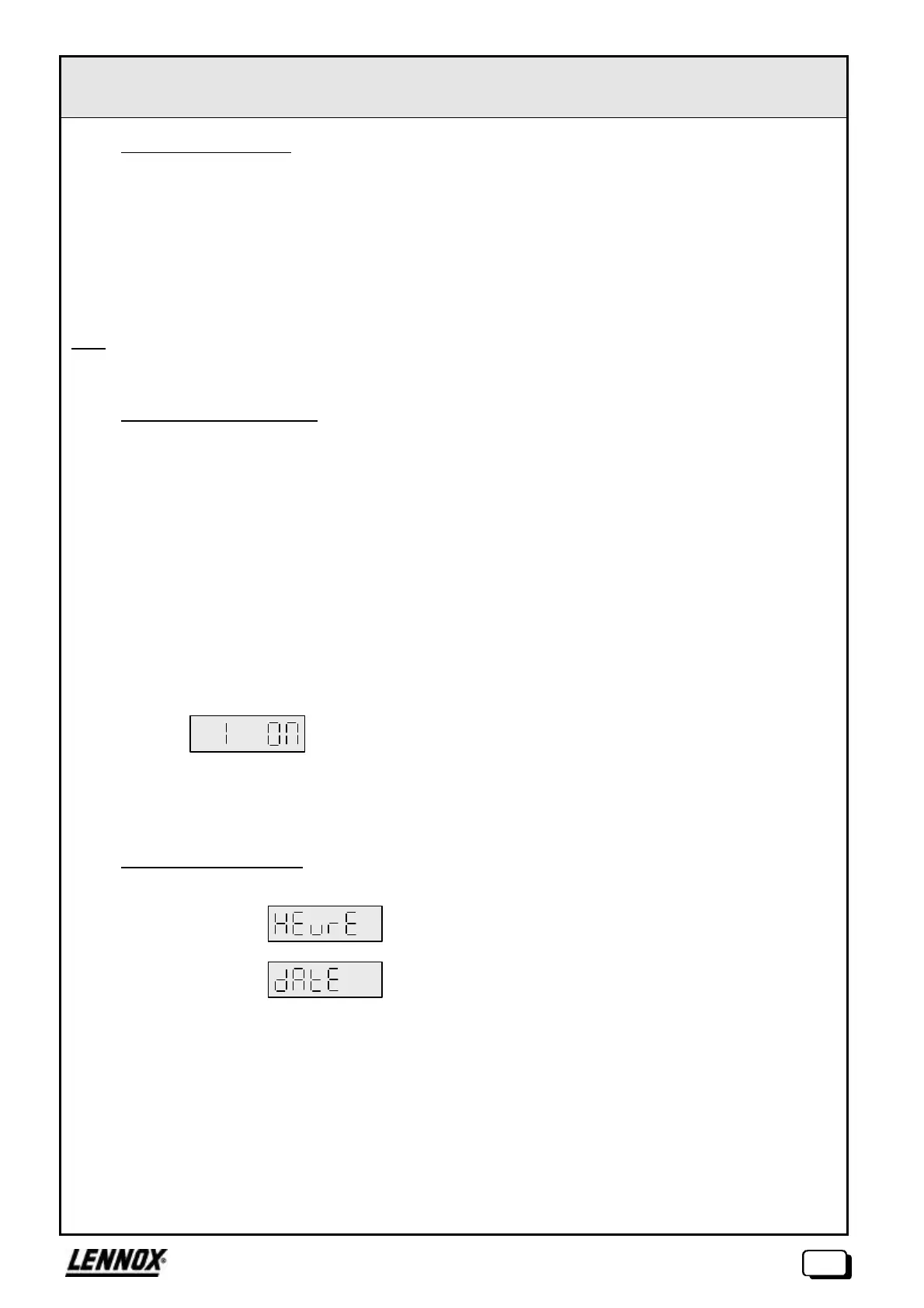

III.1. VARIABLES mode
Pressing on "A" displays the address of the variable currently being read.
The address is incremented by pressing keys "A" and "+" simultaneously. The address is incremented slowly if
"+" is pressed briefly, or faster if it is pressed continuously.
The address is decremented in a similar manner, using keys "A" and "-".
When the required address is selected, pressing key "V" displays the value of the corresponding variable.
Variables are updated cyclically every n seconds.
Note: When an address is selected, if the user does not enter a value request, this takes place automatically
after 1 minute.
III.2. INSTRUCTIONS mode
The address of the instruction to be modified is selected as for VARIABLES mode (see § III.1.).
The value of the instruction is increased by pressing keys "V" and "+" simultaneously. The value increases
slowly if "+" is pressed briefly, and faster if it is pressed continuously. Slow incrementation is by 0.1 for
temperatures and pressures and 1 for other values. Fast incrementation starts with the rightmost digit then
moves to the left.
Decrementation is in a similar manner, using keys "A" and "-".
As soon as key "V" is released, the value displayed is sent to the CPU.
Access to instructions other than CONSEA, CONSEB, DELTAT, MAARCn and RESET is restricted. For access
to all instructions, a password must be entered in the reserved instruction at address no.0. If the password is
correct, the following message is displayed when key "V" is released:
After 5 minutes of keypad inactivity, the console automatically cancels unlimited access to instructions. To
modify a protected instruction the password must be re-entered.
III.3. READ DATER mode
Read accessible dater elements are :
. Time ⇔
. and date ⇔
The element is selected by holding key " A " pressed down and pressing briefly on " + " or " –" .
