KP07 VDU CONSOLE

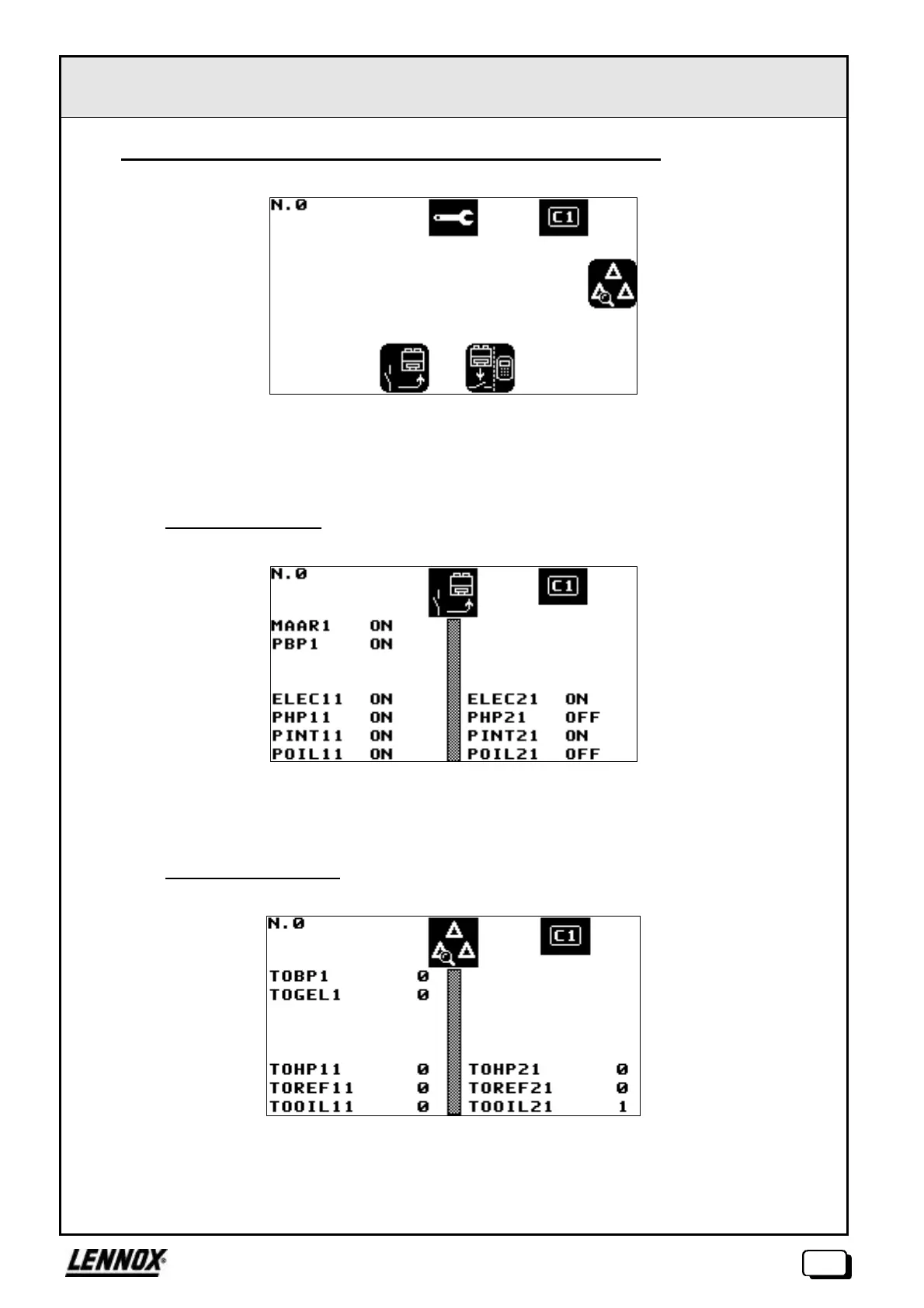

III.6. Tables of variables associated with refrigeration circuits
This screen gives access to the values of logic inputs, fault counters, TOR output and other variables
describing the selected refrigeration circuit. Each variable is identified by its mnemonic.
III.6.a. Logic inputs
This screen shows the state of all the logic inputs associated with the circuit and its compressors.
III.6.b. Fault counters
This screen shows the values of counters for all faults on the circuit and its compressors.
