CBX32MV / Page 23

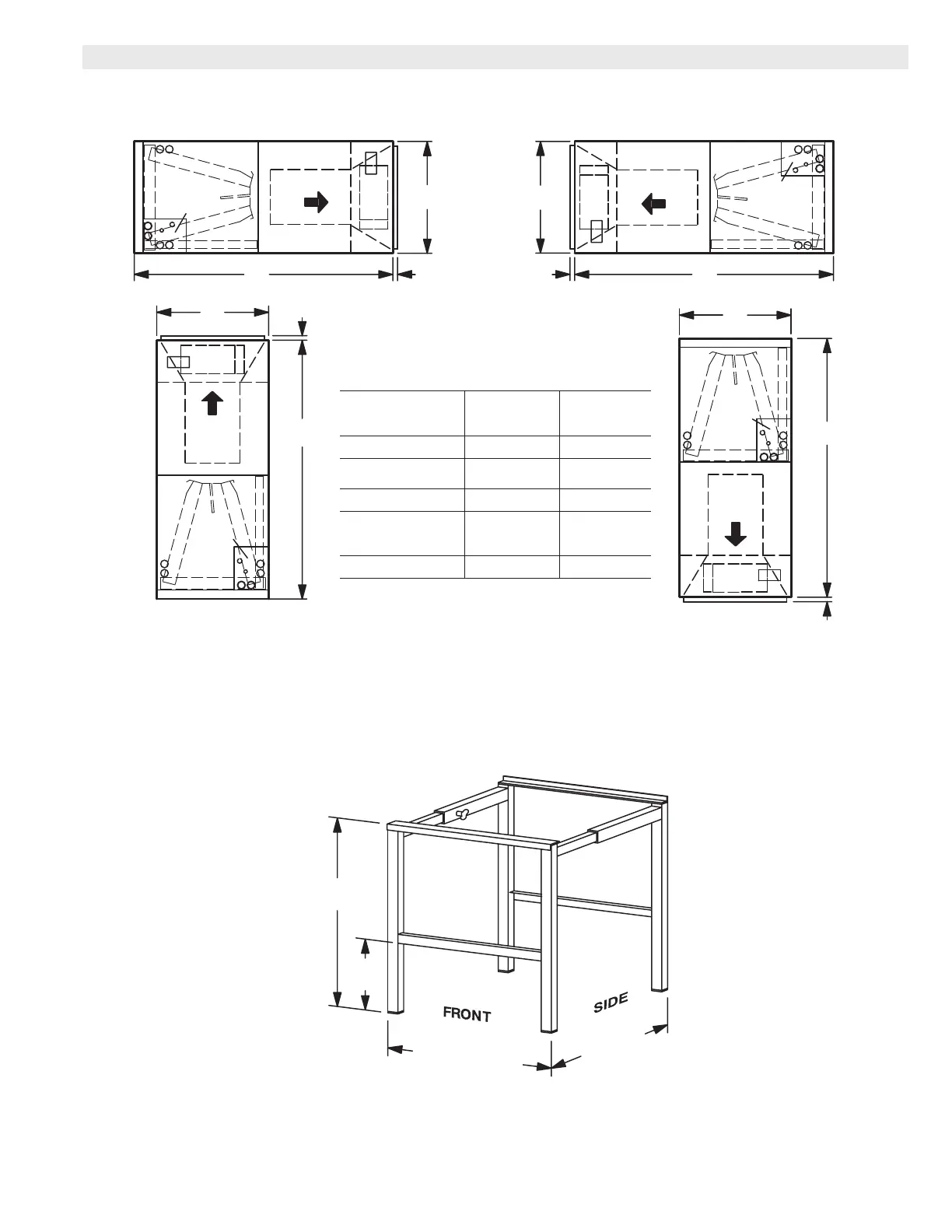

AIR FLOW
A
B
PIPING
PLATE
5/8
(16)
AIR FLOW
PIPING
PLATE
B
A
5/8
(16)
AIR FLOW
B
PIPING
PLATE
A
5/8
(16)
AIR FLOW
B
PIPING
PLATE
A
5/8
(16)
RIGHT-HAND AIR FLOW LEFT-HAND AIR FLOW
UPFLOW DOWNFLOW
AIR FLOW
ADJUSTABLE
20 (508) to
25 (635)
ALL UNITS
16
(406)
6
(152)
SIDE RETURN UNIT STAND
(Upflow Only)
21-1/4
(540)
DIMENSIONS - INCHES (MM)
Model
No.
A B
in. mm in. mm
CBX32MV-018/024 45-1/4 1149 16-1/4 413
CBX32MV-024/030 49-1/4 1251 21-1/4 540
CBX32MV-036 51 1295 21-1/4 540
CBX32MV-048
CBX32MV-060
58-1/2 1486 21-1/4 540
CBX32MV-068 65 1651 21-1/4 540
-018/024
- 16-1/4 (413)
-024/030 thru -060
- 21-1/4 (540)
23 of 44 B17-0056
01/19/2017

Lennox DAVE LENNOX SIGNATURE CBX32MV Specifications

General

Type	Variable Speed Air Handler
Refrigerant	R-410A
Airflow	Up to 2000 CFM
Warranty	10-Year Limited Warranty
Nominal Cooling Capacity	1.5 - 5 Ton
Nominal Heating Capacity	Match with heat pump or furnace
Blower Motor	Variable Speed ECM
Filter	MERV 16
