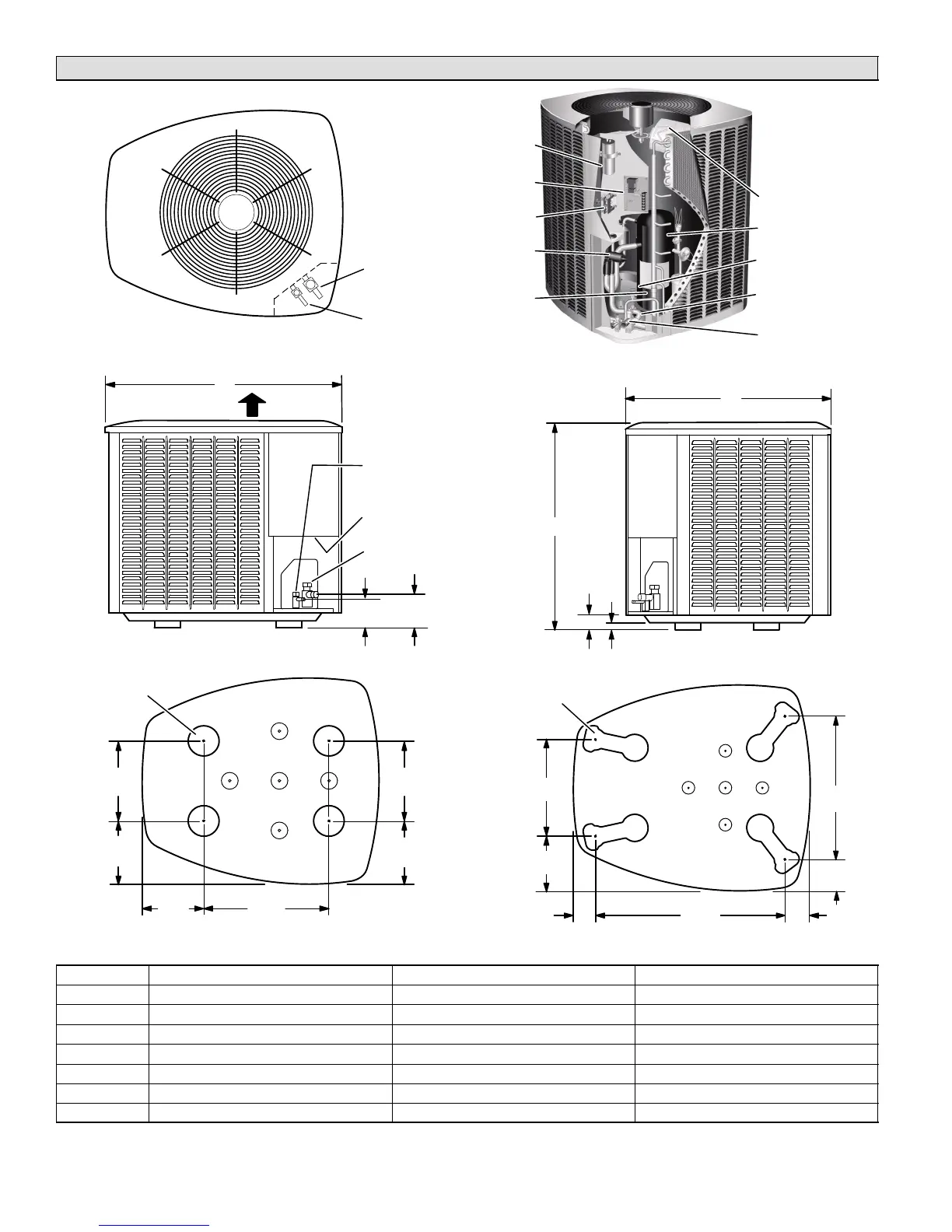

Unit Dimensions − Inches (mm) and Parts Arrangement
RUN
CAPACITOR
DEFROST
BOARD
CONTACTOR
REVERSING
VALVE
FILTER DRIER/
LIQUID LINE
CONNECTIONS
OUTDOOR FAN
COMPRESSOR
HIGH PRESSURE
SWITCH
VAPOR LINE
VAPOR VALVE AND
GAUGE PORT/SUCTION
LINE CONNECTIONS
XP13 PARTS ARRANGEMENT
UNIT SUPPORT
FEET
8−1/2
(216)
XP13−018, 024, 030 AND 036 BASE SECTION
8−3/4
(222)
5−1/2
(140)
9−1/2
(241)
8−1/4
(210)
13−1/2
(343)
ELECTRICAL
INLETS
SIDE VIEW
DISCHARGE AIR
VAPOR LINE
CONNECTION
LIQUID LINE
CONNECTION
4−1/4(1
08)
4−3/4
(121)
1 (25)
2 (51)
SIDE VIEW
C
B
A
13−7/8
(352)
K
J
UNIT SUPPORT FEET
XP13 BASE WITH ELONGATED LEGS
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
TOP VIEW
7−3/4
(197)
3−1/4
(83)
27−1/8
(689)
3−5/8
(92)
4−1/2
(114)
20−5/8
(524)
XP13 A B C
−018
31 (787) 27 (686) 28 (711)
−024
31 (787) 27 (686) 28 (711)
−030
31 (787) 27 (686) 28 (711)
−036
35 (889) 27 (686) 28 (711)
−042
35 (889) 30−1/2 (775) 35 (889)
−048
35 (889) 30−1/2 (775) 35 (889)
−060
45 (1143) 30−1/2 (775) 35 (889)
