Lennox Elite series Installation Instructions

Page 14

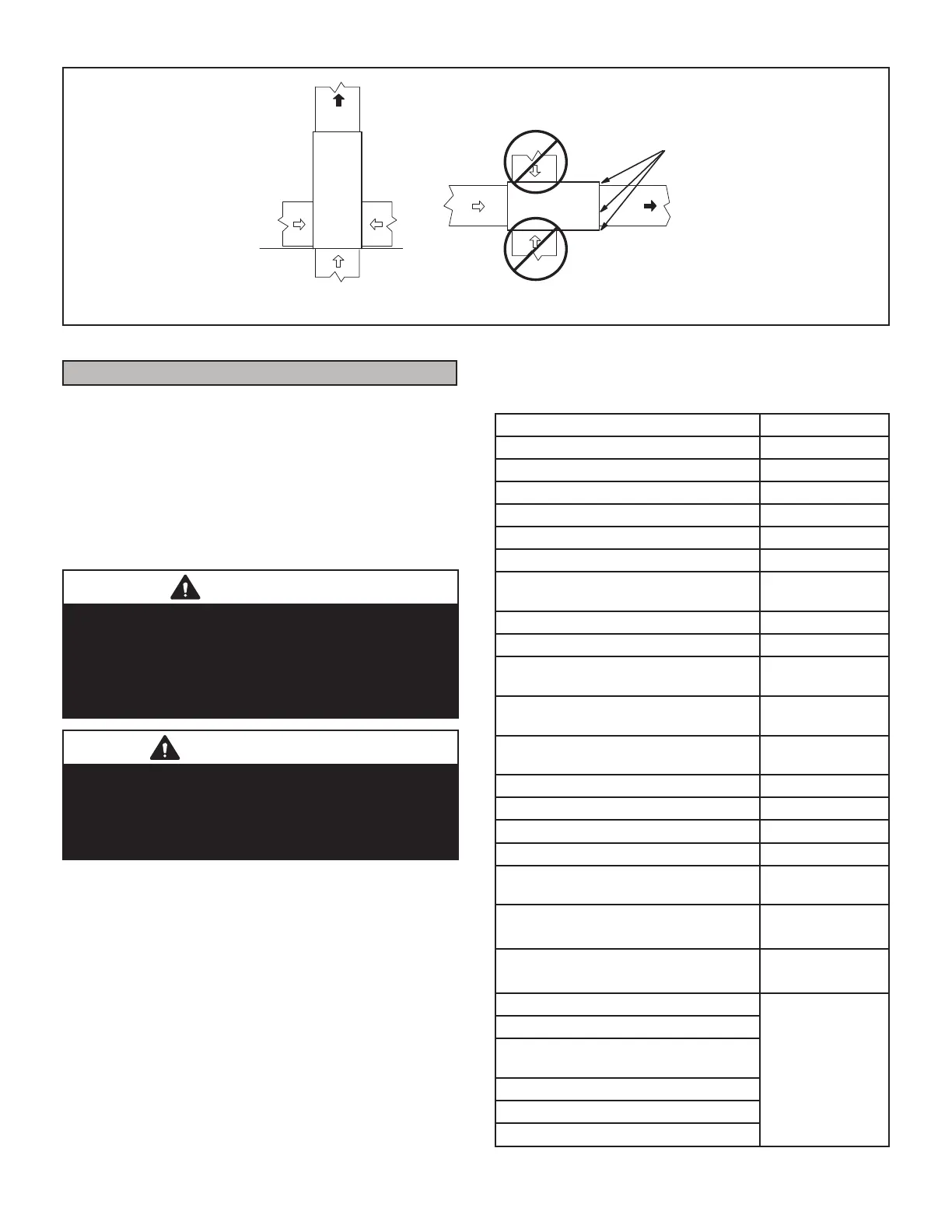

HORIZONTAL UNIT
SUPPLY
AIR
SUPPLY
AIR
Install self tapping screws
to seal any potential air
leaks
UPFLOW UNIT
Figure 20
3LSH)LWWLQJV6SHFL¿FDWLRQV
$OOSLSH¿WWLQJVSULPHUDQGVROYHQWFHPHQWPXVWFRQIRUP
with American National Standard Institute and the Ameri-
can Society for Testing and Materials (ANSI/ASTM) stan-
GDUGV 7KH VROYHQW VKDOO EH IUHH ÀRZLQJ DQG FRQWDLQ QR
lumps, undissolved particles or any foreign matter that
DGYHUVHO\DႇHFWVWKHMRLQWVWUHQJWKRUFKHPLFDOUHVLVWDQFH
of the cement. The cement shall show no gelation, strati-
¿FDWLRQRUVHSDUDWLRQWKDWFDQQRWEHUHPRYHGE\VWLUULQJ
5HIHUWRWKH7$%/(IRUDSSURYHGSLSLQJDQG¿WWLQJPD-
terials.
CAUTION
6ROYHQWFHPHQWVIRUSODVWLFSLSH DUH ÀDPPDEOH OLTXLGV
and should be kept away from all sources of ignition.
Do not use excessive amounts of solvent cement when
making joints. Good ventilation should be maintained to
UHGXFH¿UHKD]DUGDQGWRPLQLPL]HEUHDWKLQJRIVROYHQW
vapors. Avoid contact of cement with skin and eyes.
IMPORTANT
EL196UHE exhaust and intake connections are made
of PVC. Use PVC primer and solvent cement when
using PVC vent pipe. When using ABS vent pipe, use
transitional solvent cement to make connections to the
39&¿WWLQJVLQWKHXQLW
TABLE 2
PIPING AND FITTINGS SPECIFICATIONS
Schedule 40 PVC (Pipe) D1785
Schedule 40 PVC (Cellular Core Pipe) F891
Schedule 40 PVC (Fittings) D2466
Schedule 40 CPVC (Pipe) F441
Schedule 40 CPVC (Fittings) F438
SDR-21 PVC or SDR-26 PVC (Pipe) D2241
SDR-21 CPVC or SDR-26 CPVC (Pipe) F442
Schedule 40 ABS Cellular Core DWV
(Pipe)
F628
Schedule 40 ABS (Pipe) D1527
Schedule 40 ABS (Fittings) D2468
ABS-DWV (Drain Waste & Vent) (Pipe &
Fittings)
D2661
PVC-DWV (Drain Waste & Vent) Pipe &
Fittings)
D2665
PRIMER & SOLVENT CEMENT
ASTM
SPECIFICATION
PVC & CPVC Primer F656
PVC Solvent Cement D2564
CPVC Solvent Cement F493
ABS Solvent Cement D2235
PVC/CPVC/ABS All Purpose Cement
For Fittings & Pipe of the same material
D2564, D2235,
F493
ABS to PVC or CPVC Transition Solvent
Cement
D3188
CANADA PIPE & FITTING & SOLVENT
CEMENT
MARKING
PVC & CPVC Pipe and Fittings
ULCS636
PVC & CPVC Solvent Cement
ABS to PVC or CPVC Transition
Cement
POLYPROPYLENE VENTING SYSTEM
PolyPro® by Duravent
InnoFlue® by Centrotherm
