Energence
®
Packaged Gas / Electric 45.7 to 88 kW - 50 Hz/ Page 35
1

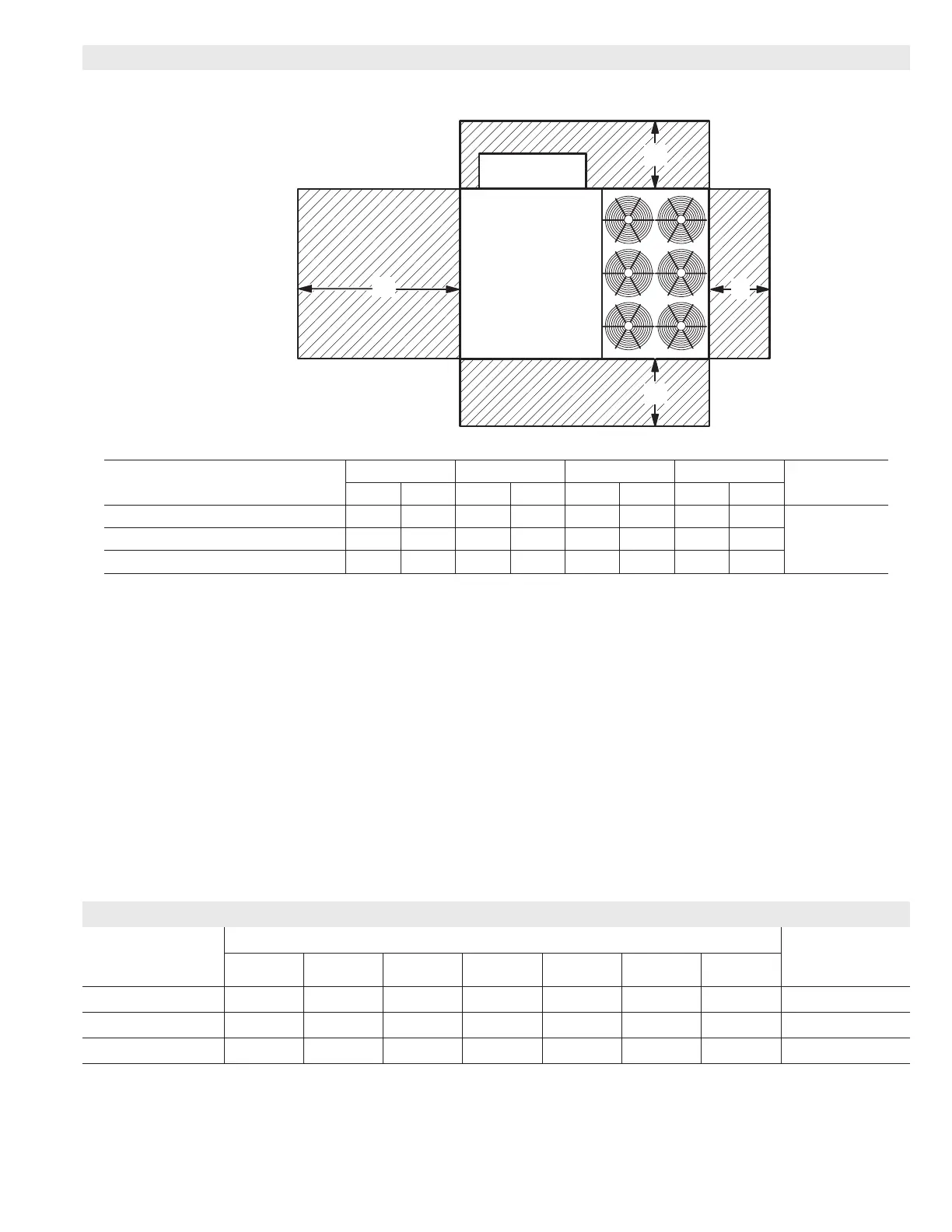

Unit Clearance
A B C D
Top
Clearance
mm in. mm in. mm in. mm in.
Service Clearance 1524 60 914 36 914 36 1676 66
UnobstructedClearance to Combustibles 914 36 25 1 25 1 25 1
Minimum Operation Clearance 1143 45 914 36 914 36 1041 41
1
Service Clearance - Required for removal of serviceable parts.
Clearance to Combustibles - Required clearance to combustible material.
Minimum Operation Clearance - Required clearance for proper unit operation.
Note: 210-240-300 sizes show
D
OUTDOOR
AIR HOOD
B
C
A
OUTDOOR SOUND DATA
Unit
Model Number
Octave Band Linear Sound Power Levels dB, re 10
-12
Watts - Center Frequency - Hz
1
Sound Rating
Number (SRN)
(dBA)
125 250 500 1000 2000 4000 8000
156 71 78 81 81 76 71 63 86
180 80 83 87 88 84 80 71 93
210, 240, 300 79 84 88 89 85 82 73 94
1
10,000 Hz).
UNIT CLEARANCES
