Page 8 - IOM / ROOF-TOP FLEXY™ Series

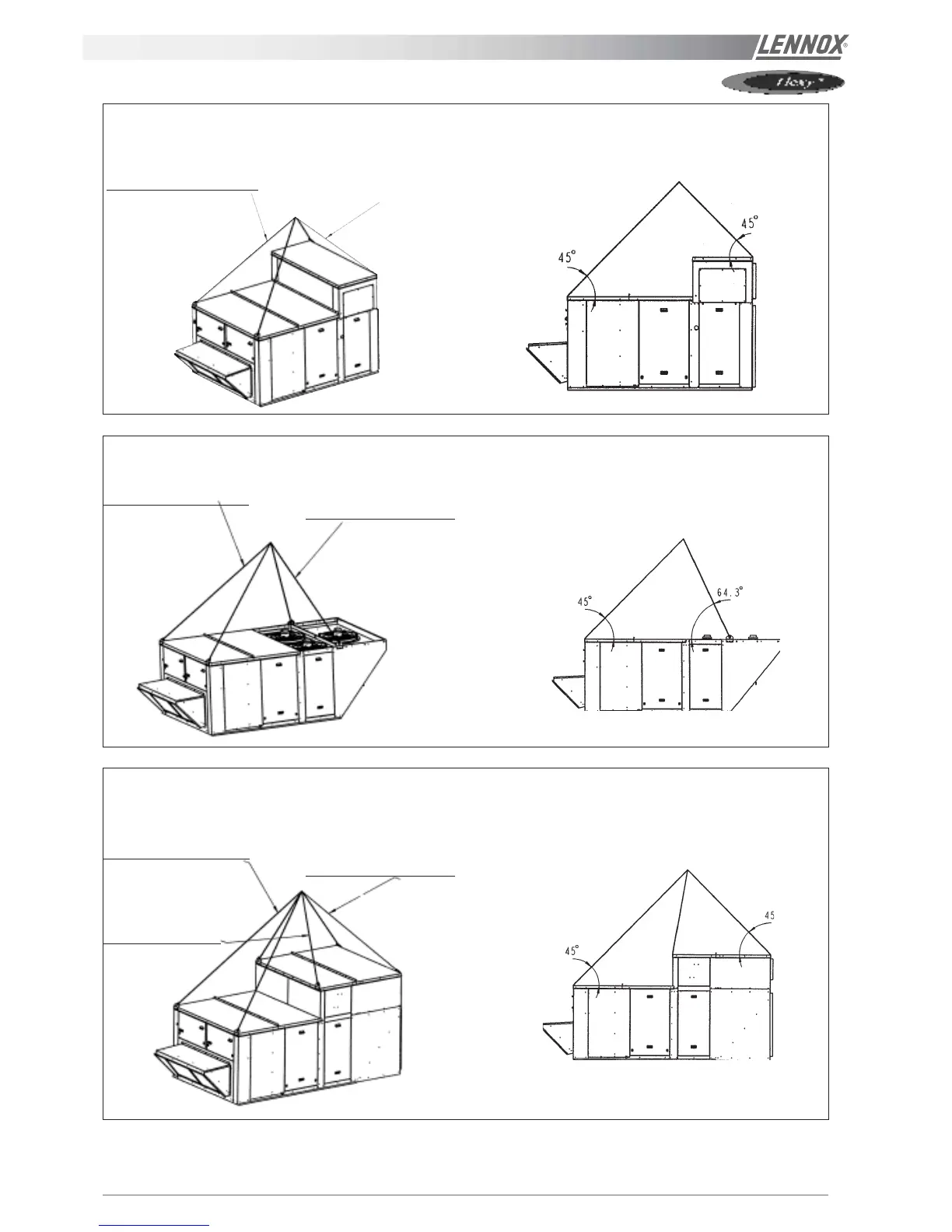

TRANSPORT - HANDLING

FC.../FH.../FD.../FG... 060 & 070 with centrifugal fans

Sling length = 2590 mm

for angle = 45°C

Sling length = 2330 mm

for angle = 64,5°C

FC.../FH.../FD.../FG... 085 & 100

Sling length = 2430 mm

for angle = 45°C

FC.../FH.../FD.../FG... 085 & 100 with centrifugal fans

Sling length = 3230 mm

for angle = 45°C

Sling length = 2830 mm

for angle = 45°C

Sling length = 1870

for angle = 45°C

Figure 3 for all handling drawings - pages 7 to11
