IOM / ROOF-TOP FLEXY™ Series - Page 7
TRANSPORT - HANDLING
HANDLING
The equipment can be moved using the lifting holes on the
top of the unit.

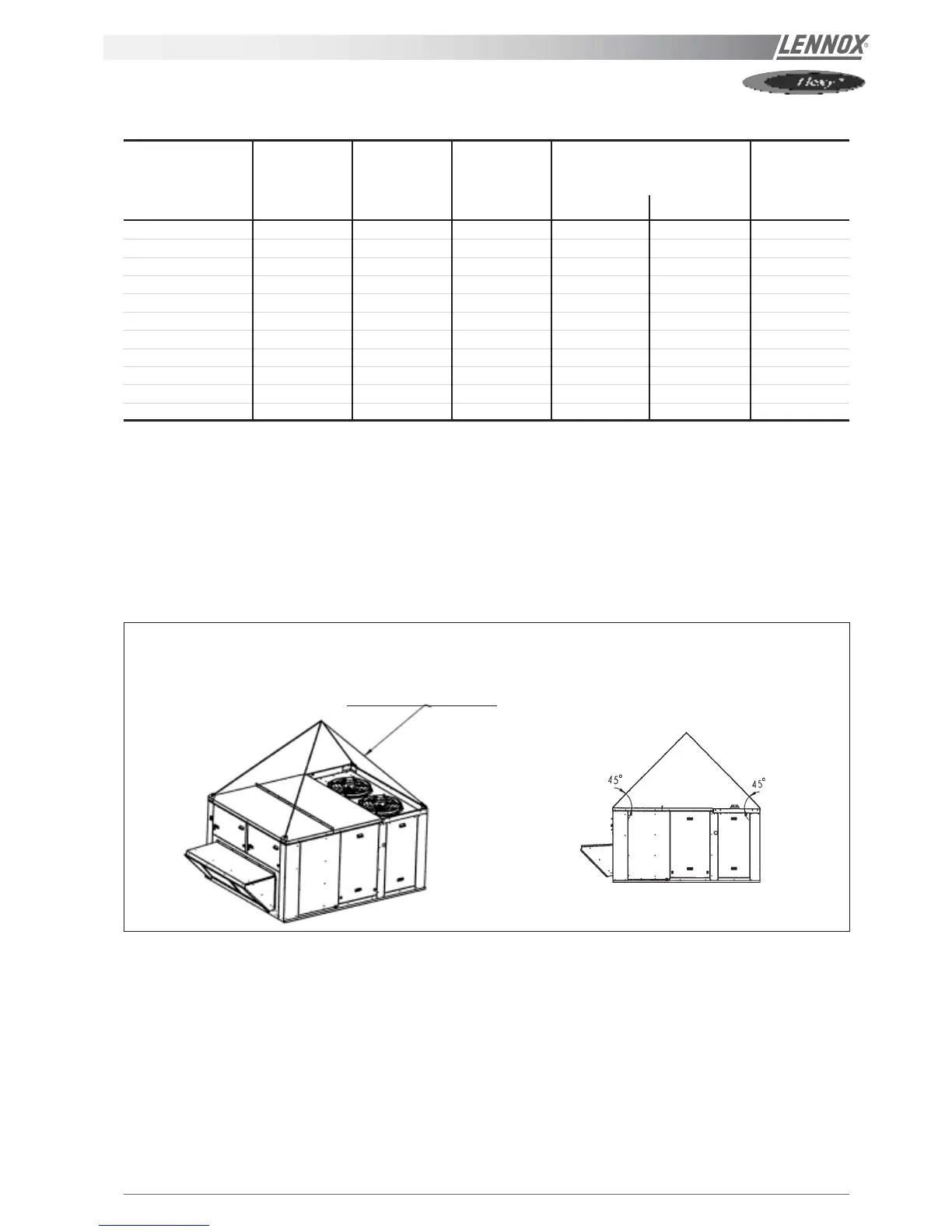

The "sling" length is the value that we recommend for safe
handling of the equipment.
Some units can only be supported by four slings at right-
angles. Others require different lengths (see figures 4).
It is essential that all lifting holes are used and that the slings
are all of the same size to avoid damaging the equipment.
Sling length = 2210 mm
for angle = 45°C
FC.../FH.../FD.../FG... 060 & 070
LENGTH HEIGHT WIDTH AUVENT WEIGHT (kg)
lateral ventil standard
MODELS mm mm mm mm mm k g
FX 025 4070 1635 1055 490 600 950
FX 030 4070 1635 1055 490 600 980
FX 035 4750 2255 1290 490 600 1400
FX 040 4750 2255 1290 490 600 1450
FX 055 4750 2255 1290 490 600 1600
FX 070 5050 2255 1725 890 600 1800
FX 085 5050 2255 1725 890 600 1900
FX 100 5050 2255 1725 890 600 2000
FX 110 5650 2255 2000 860 - 2620
FX 140 5650 2255 2000 860 - 2620
FX 170 5650 2255 2000 860 - 2650
DIMENSIONS AND WEIGHTS
Figure 4 for all handling
drawings - pages 7 to11
