IOM / ROOF-TOP FLEXY™ Series - Page 113

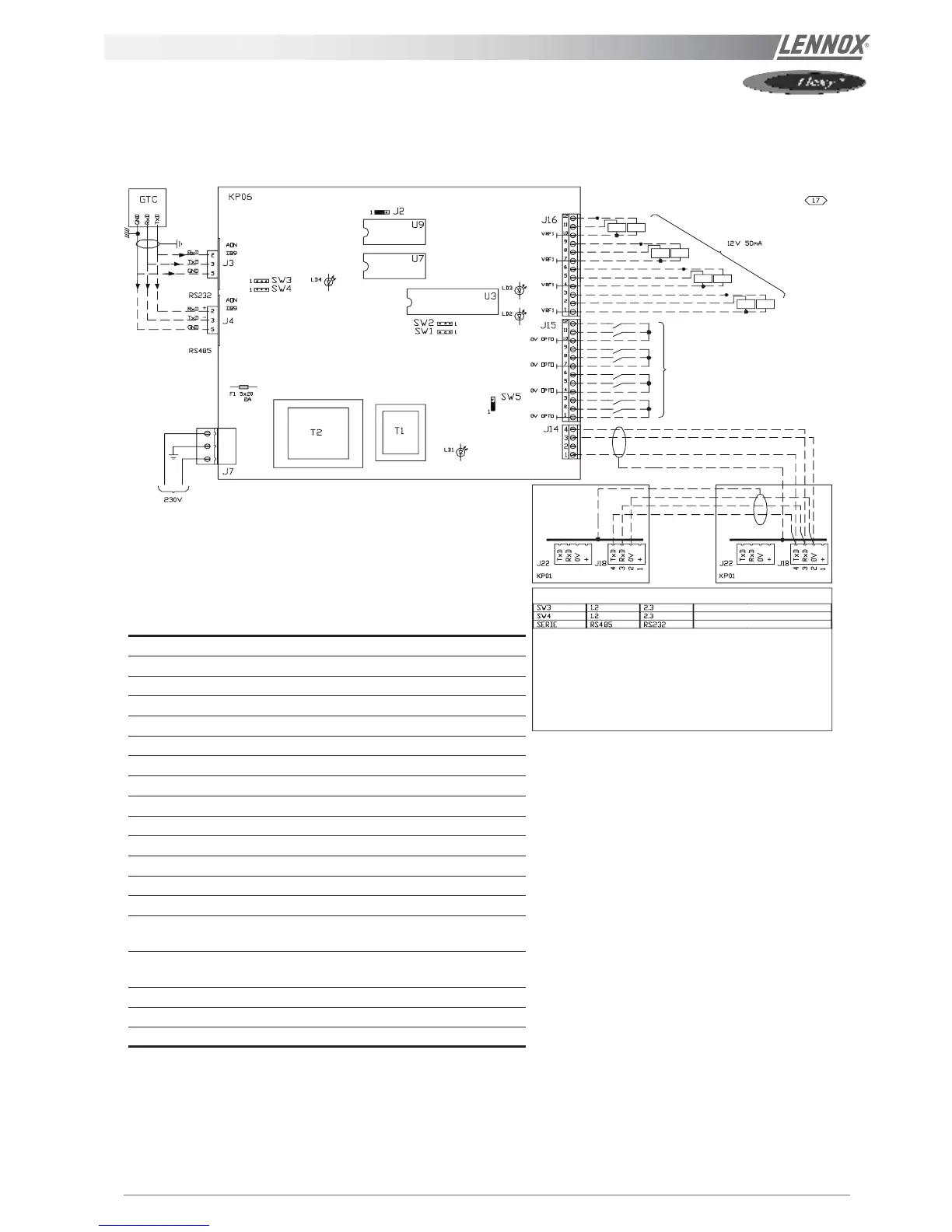

ELECTRICAL WIRING DIAGRAMS
KP 06 (J-BUS INTERFACE)
Relais SPST
Hard Contacts
Liaison
Liaison
F1 Fuse 1A
J2 Unit size 8k (position 1-2) 32k (position 2-3)
J3 SUBD 9-point connector RS232 link
J4 15. SUBD 9-point connector RS485 link
J7 PHENIX 3-point connector supply 230 V
J14 CLIMATIC link 4-point connector
J15 ADN Inputs 12-point connector
J16 ADN Outputs 12-point connector
LD1 Monitoring LED power 6V link
LD2 Dialogue monitoring LED
LD3 Power Fell monitoring LED
LD4 Monitoring LED power 5V link
SW1 Speed configuration (9600, 4800 ,2400 or 1200 baud)
SW2 Speed configuration (9600, 4800 ,2400 or 1200 baud)
SW3 TXD signal configuration RS232 (position 2-3) / RS485
(position 1-2)
SW4 RXD signal configuration RS232 (position 2-3) / RS485
(position 1-2)
SW5 +10V Converter (Position 1-2)
U7 Programmable EPROM CL06
U9 Configurable EPROM
Serial link RS232
The link is used for short distances
Only a master control can be connected to this link
Serial link RS485
This link is used for long distances (maximum 100 metres)
Up to 31 controls can be connected (including 1 master)
