RECOMMENDATIONS FOR DUCTS CONNECTIONS
Some rules must be complied with for the connections between ducts and unit done on site.
Whatever the supply configuration is, respect a minimal duct’s length (D) of 2m before any elbow or any duct’s diameter
change.
These recommendations are imperative in the case of 2 independent turbines (sizes from 150kW to 230kW and all units
equipped with gas module)

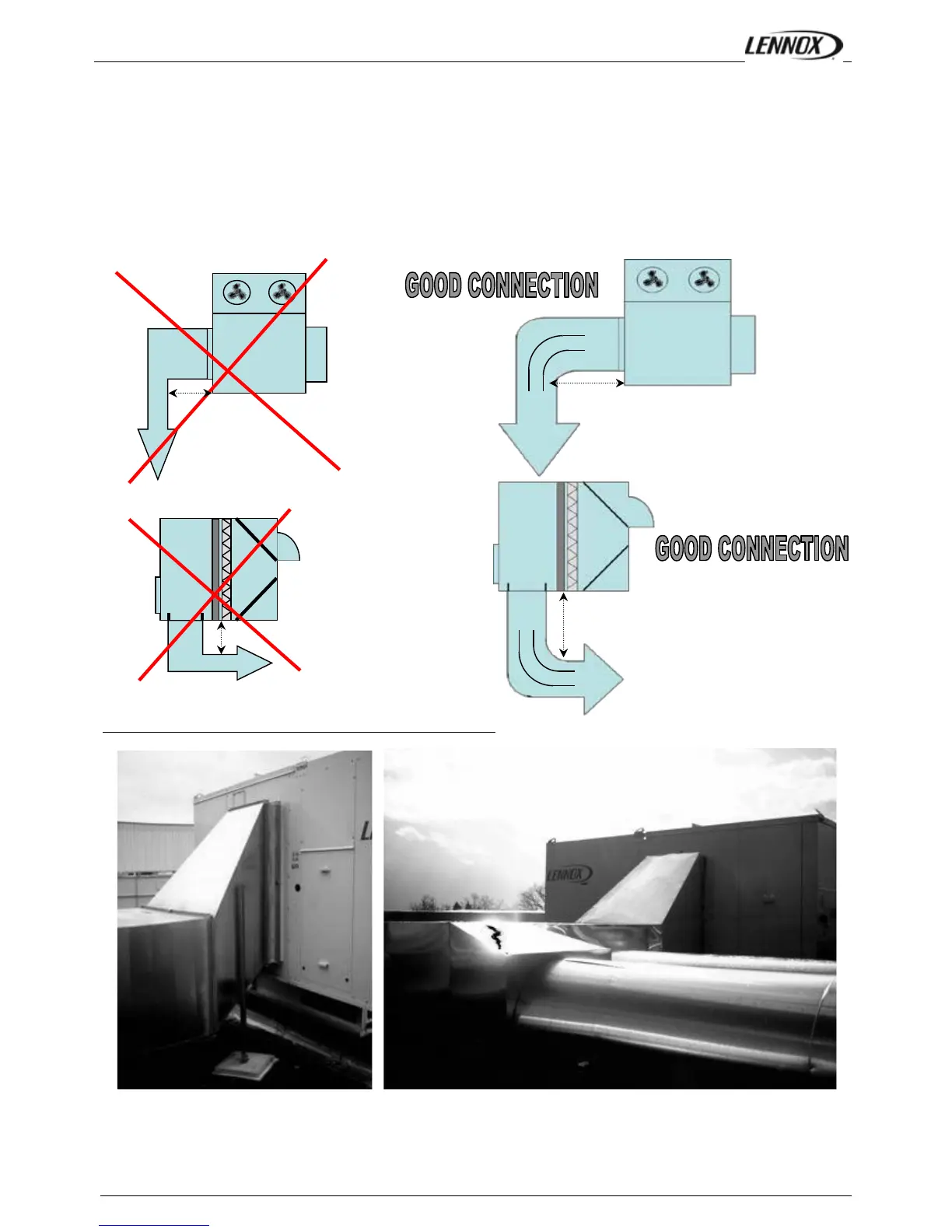

Horizontal supply
Vertical supply
Here are obvious bad examples of ducts connections noted on site:
