FLEXYII_WSHP-IOM-1307-E - 56 -

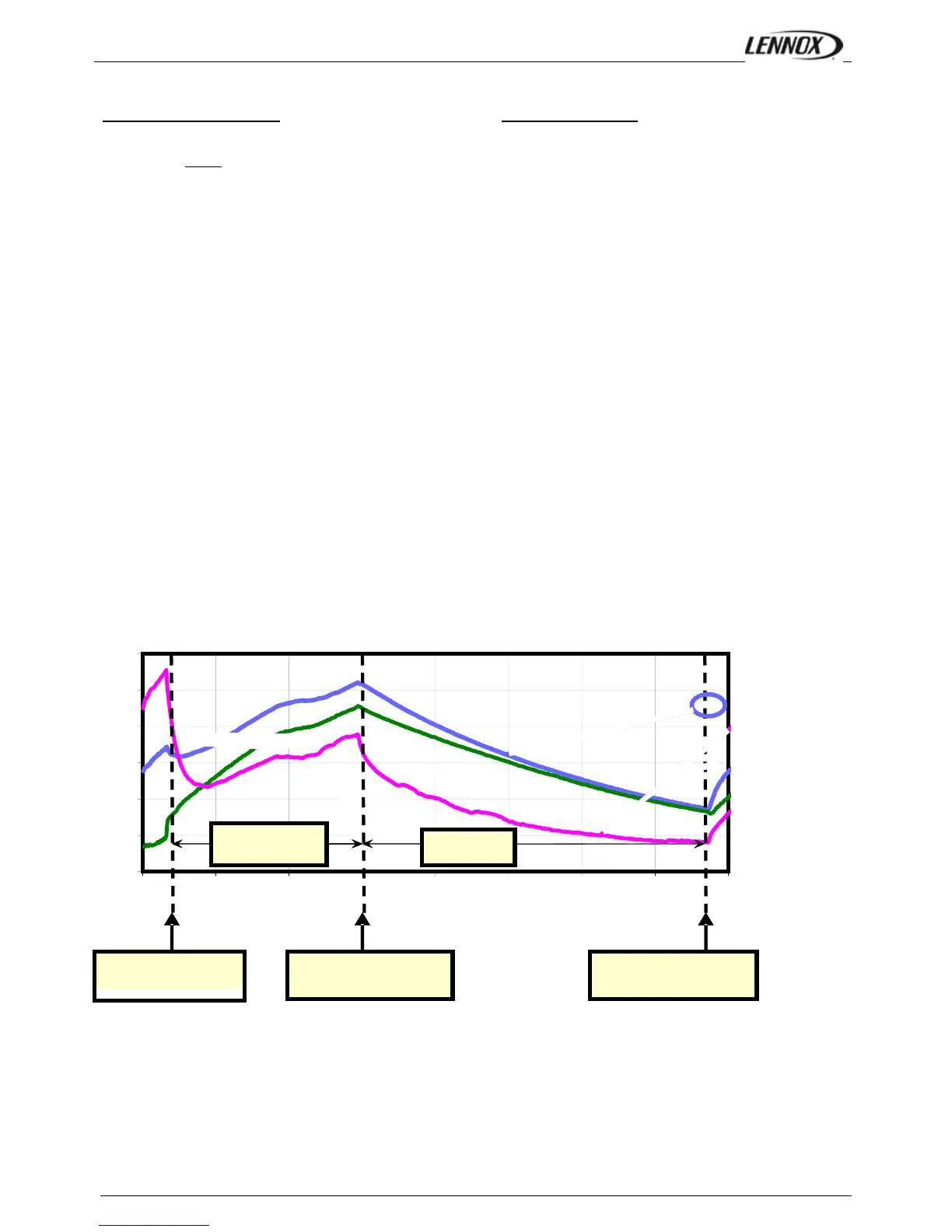

OPERATION MODE EXPLANATION
v Protection is activated when Scroll Discharge Port.
Reaches 150°C (+/- 17K)
v Compressor is protected as « Unloaded » but
continues to run
• Protection mode balances discharge/suction
pressure
- Motor heat builds inside compressor
- No refrigerant flow to carry motor heat away
v Motor protector opens (Klyxon)
• Compressor turns off, cools
v Motor protector resets, compressor restarts
• Bi-metal disk resets before motor protection
• Cycle will continue until cause of overheat is fixed
SERVICE A COMPRESSOR
v What to do?
• If a protected compressor is identified
- Stop the compressor
- Allow to cool thoroughly
- Restart pump & check for normal operation
v DO NOT ASSUME A COMPRESSOR RUNNING
UNLOADED (BALANCE PRESSURE) IS A FAILURE
v Likely situations where protection may activate :
• Initial system charging (or recharging after servicing)
- Compressor is run with too little system charge
§ Very common on split system
§ Will result in very low suction pressures (<1.7
Bars)
§ Do not disable low pressure cutouts while
charging
§ Charge high-side with liquid first
• Field servicing (system problem causes overheating)
- Technician will observe « Balanced pressures »
- Risk of misdiagnosis as failed compressor
- Must stop pump, cool thoroughly, reset
