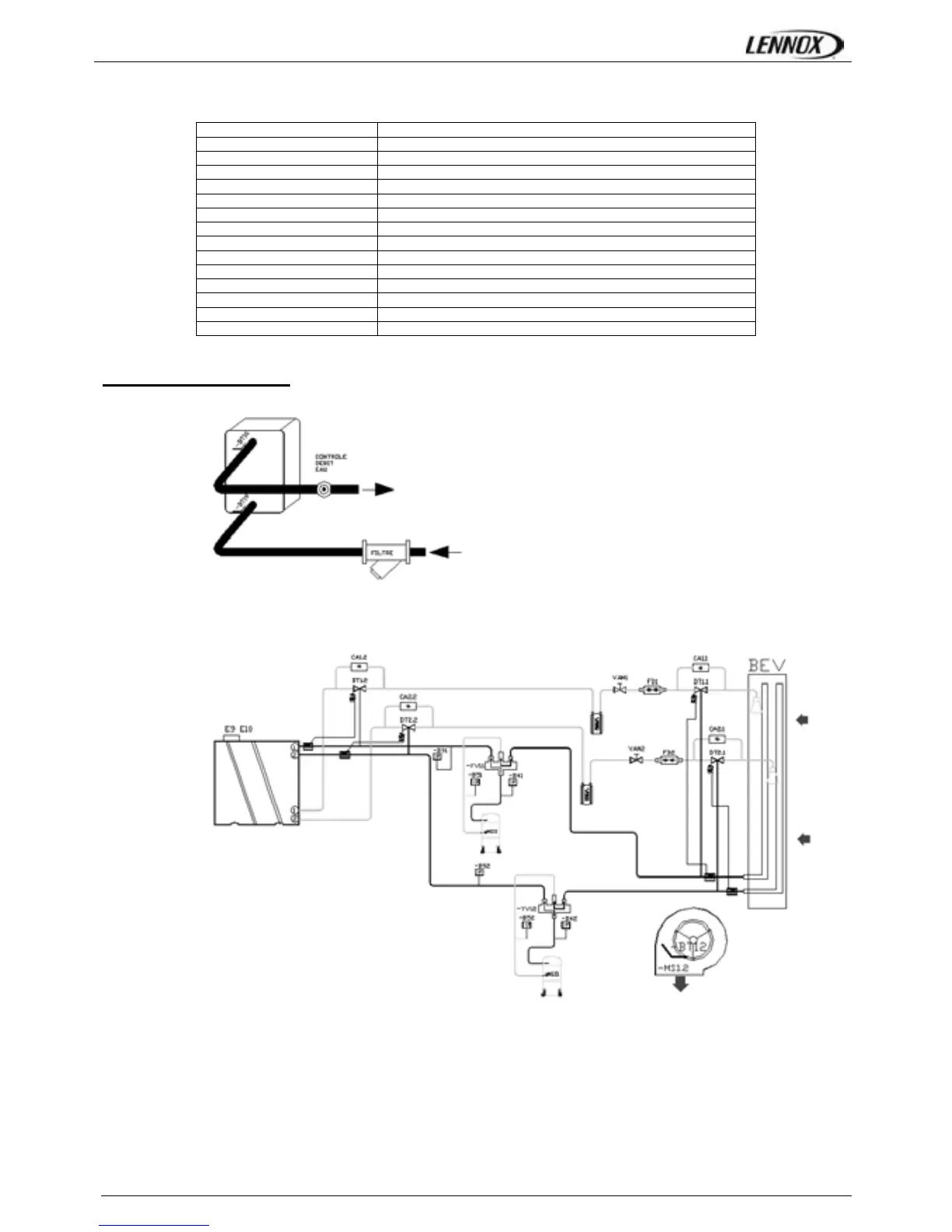

PRINCIPLE SKETCHES
FLEXYII_WSHP-IOM-0909-E Page 105
BEV EVAPORATOR COIL
CA1.1 CA1.2 CA2.1 CA2.2 CHECK VALVE
DT1.1 DT1.2 DT2.1 DT2.2 THERMOSTATIC EXPANSION VALVE
FD1 FD2 FILTER DRIER
BT16 BT19 WATER LOOP TEMPERATURE PROBE
- BT12 BLOWER TEMPERATURE PROBE
- BT17 RETURN REGULATION TEMPERATURE SENSOR
- B41 - B42 COMPRESSOR -MG1 - MG2 HIGH PRESSURE SAFETY SWITCH
- B51 - B52 COMPRESSOR -MG1 - MG2 LOW PRESSURE SAFETY SWITCH
- B61 - B62 COMPRESSOR -MG1 - MG2 HIGH PRESSURE CONTROL SWITCH
- MG11 - MG12 COMPRESSOR -MG1 - MG2
- MG21 - MG22 COMPRESSOR -MG3 - MG4
- MS1 - 2 BLOWER FAN MOTOR -MS1
VAM1 VAM2 MANUAL CHECK VALVE
- YV11 - YV12 COMPRESSOR -MG1 - MG2 REVERSAL CYCLE VALVE
FWH - FWM 085 to 120
