HEATING : MODULATING GAS BURNER 180 & 240 kW
FLEXYII_WSHP-IOM-0909-E Page 78
MODULATING GAS (UNDER PATENT INPI May
2004)
The actuator
The actuator receives an information 0-10V from the
regulation for the positioning of the air shutter; then the
actuator transmits its position to the printed-board which
will order the valve.
Check position and operation of the actuator
STARTING UP THE GAS BURNER
Purge the pipe-work near the connection on the ignition
control Valve for a few seconds.
- Check that the unit's Treatment Fan Blower is
running.
- Set the control to “ON” This will priorities the gas
burner.
- Increase the set temperature (room set point
temperature) to a temperature higher than the actual
room temperature.

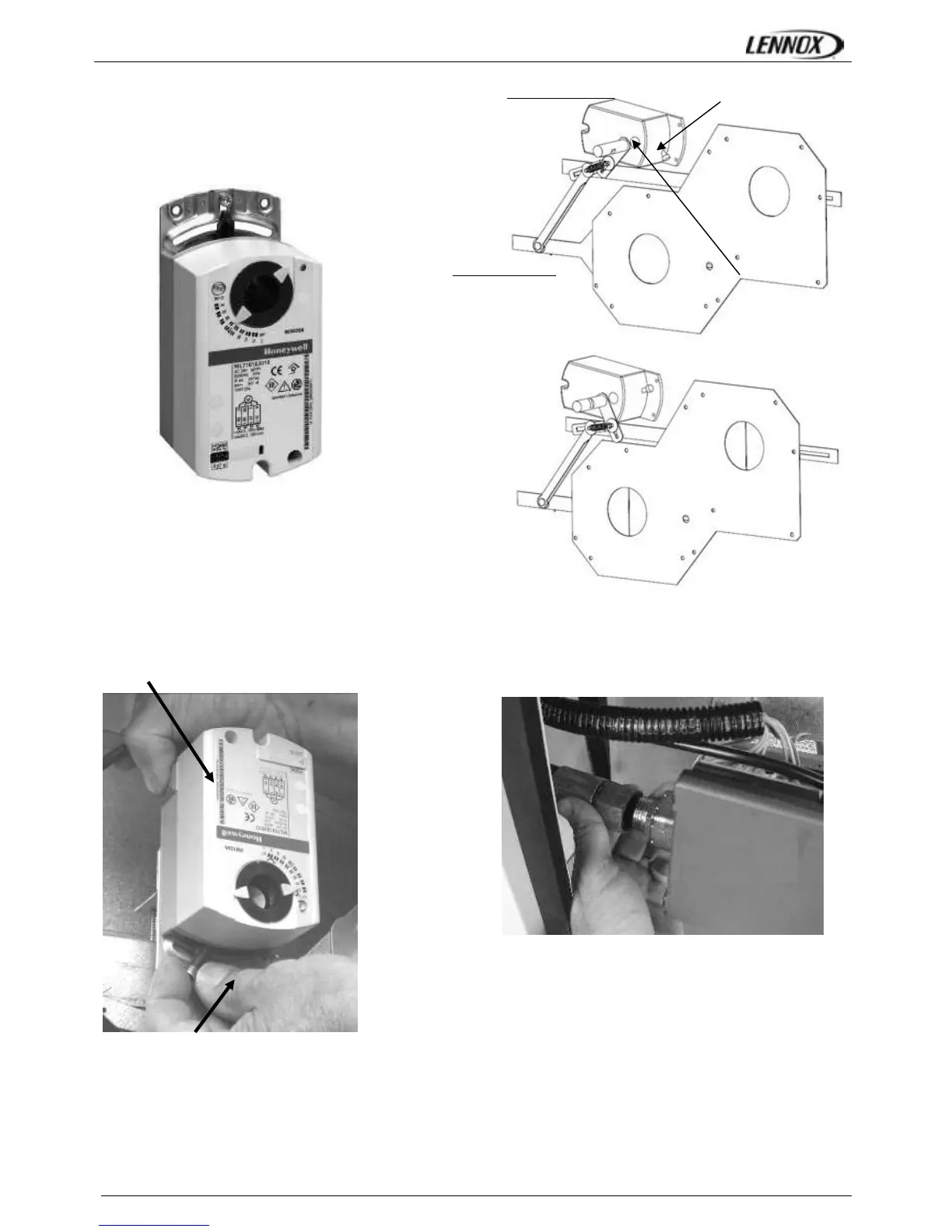

Manual rotation
of the actuator
Disengaging for
hand drive operation
Actuator screw
Maximum opening
Minimum opening
