Lennox GAH 020S

• 19 •
GAC/H 020S ņŹ 045S
GAC/H 055S ņŹ 080S
GAC/H 090S ņŹ 125D
GAC/H 140D ņŹ 185D
140
120
100
80
60
40
20
0
0 5 10 15 20 25 30 35 40 45 50 55
GAC/H 185D GAC/H 140D - 160D
GAC/H 110S - 125S
GAC/H 110D - 125D
GAC/H 070S - 080S - 090S
GAC/H 055S - 060S
GAC/H 020S - 025S
GAC/H 030S - 035S
GAC/H 040S - 045S
-
0
0
20
40
60
80
100
120
140
160
180
5 10152025303540455055
Installation manual /eCOMFORT-MIL150E-0916 / 05/2017
1.- GENERAL CHARACTERISTICS

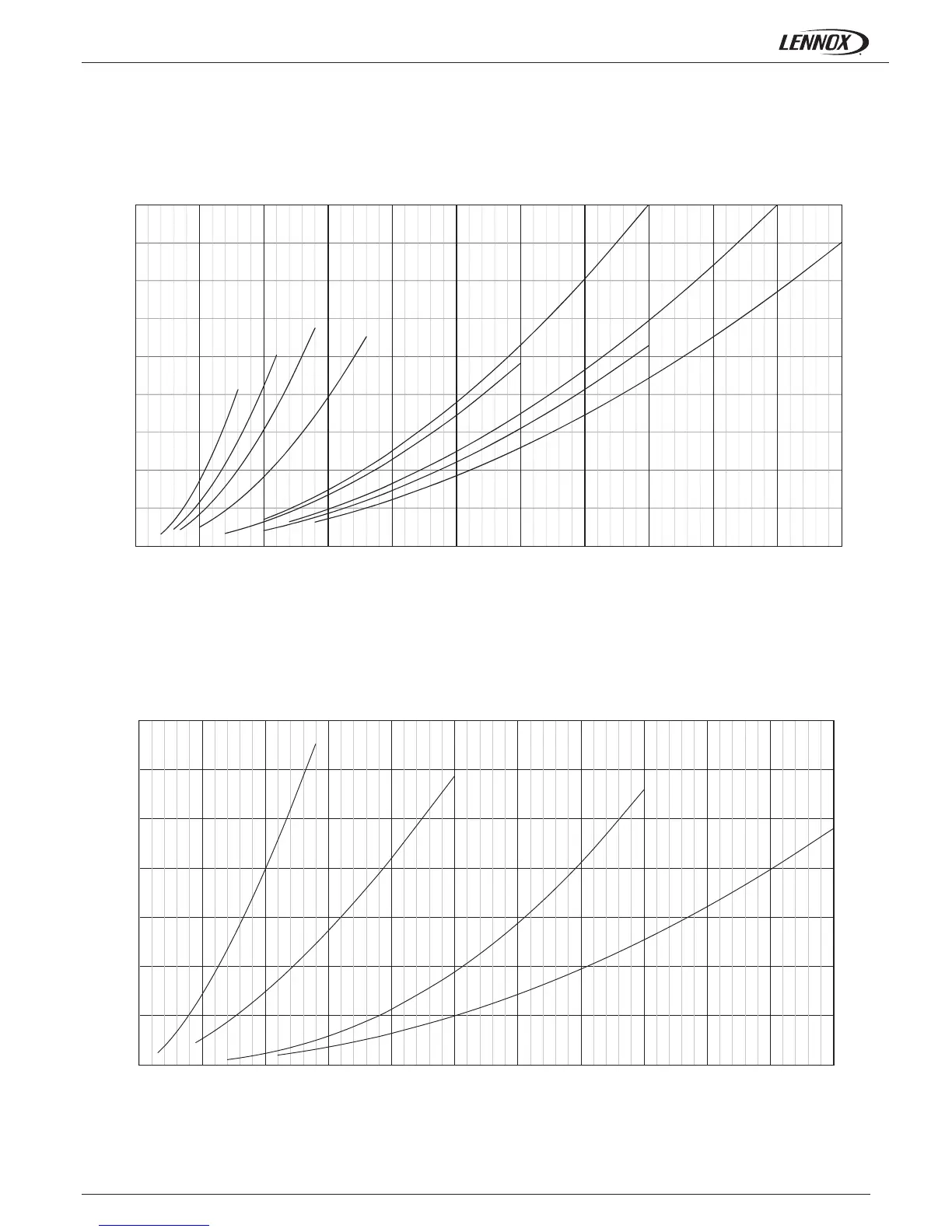

1.6- PRESSURE DROP IN THE WATER SYSTEM
Water fl ow rate (m
3
/h)
Water fl ow rate (m
3
/h)
Pressure drop (kPa)Pressure drop (kPa)
Pressure drop of the unit without water filter
Pressure drop for option water filter
