2.- INSTALLATION
2.6.- INSTALLATION CLEARANCES

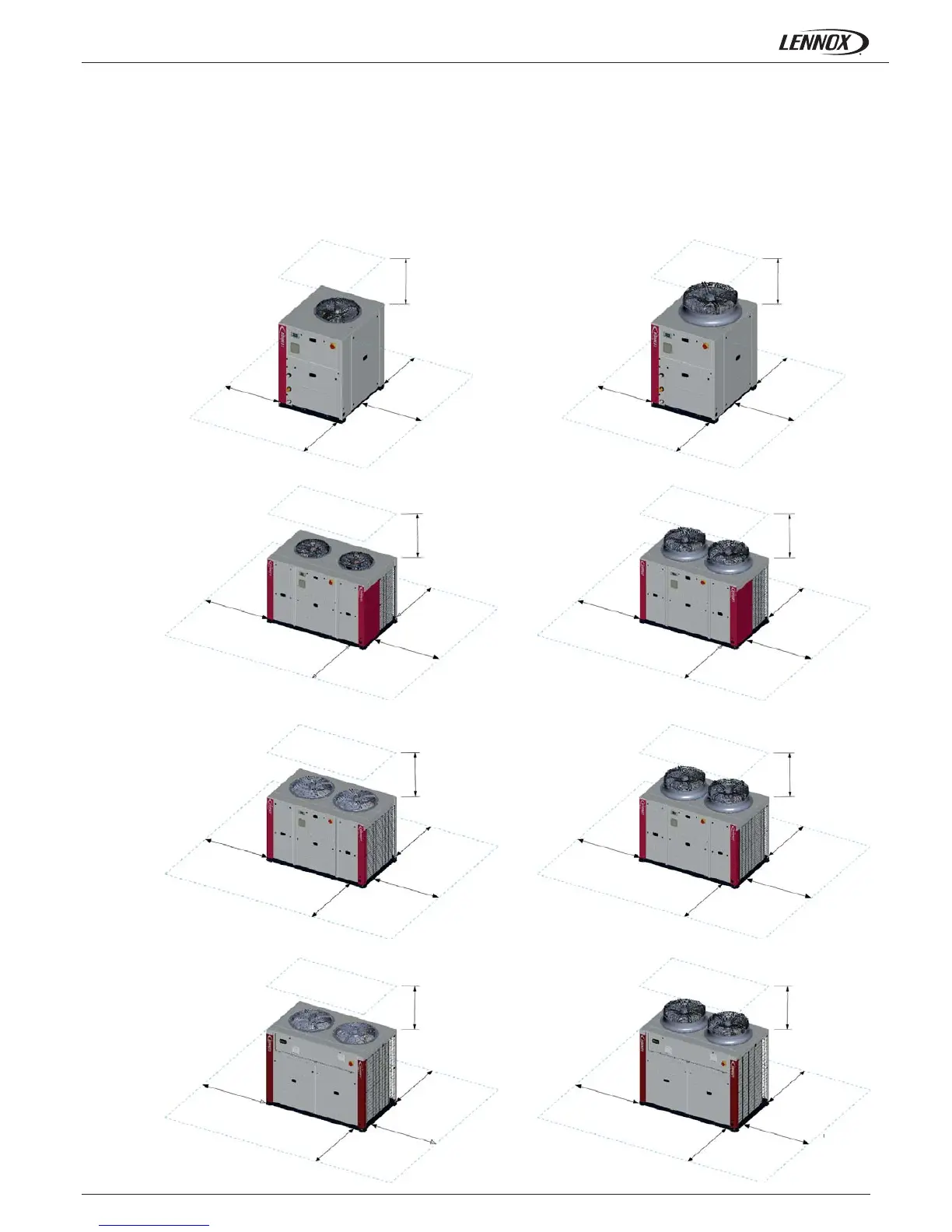

Clearance around the unit, for any unit version. Keep this space free around the unit for installation.
Failure to install the units as shown will impact performance and reliability.
3
meters
3
meters
3
meters
3
meters
3
meters
5
meters
5
meters
3
meters
1
meter
1
meter
1
meter
1
meter
1
meter
1,5
meters
1,5
meters
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
1,5
meters
1,5
meters
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
1,5
meters
1,5
meters
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
1,5
meters
1,5
meters
1
meter
STANDARD VERSION
UNIT WITH STANDARD EC FANS (SEAS)
OR HIGH PRESSURE EC FANS (HIPF)
