COMPRESSOR DIAGNOSTICS
Motor Winding Resistance at 77°F (+/-7%)
U
T1
V
T2
W
T3
Unit Size
036
048
060/074
U-V
0.64
0.70
0.62
V-W
0.63
0.70
0.62
W-U
0.63
0.70
0.62

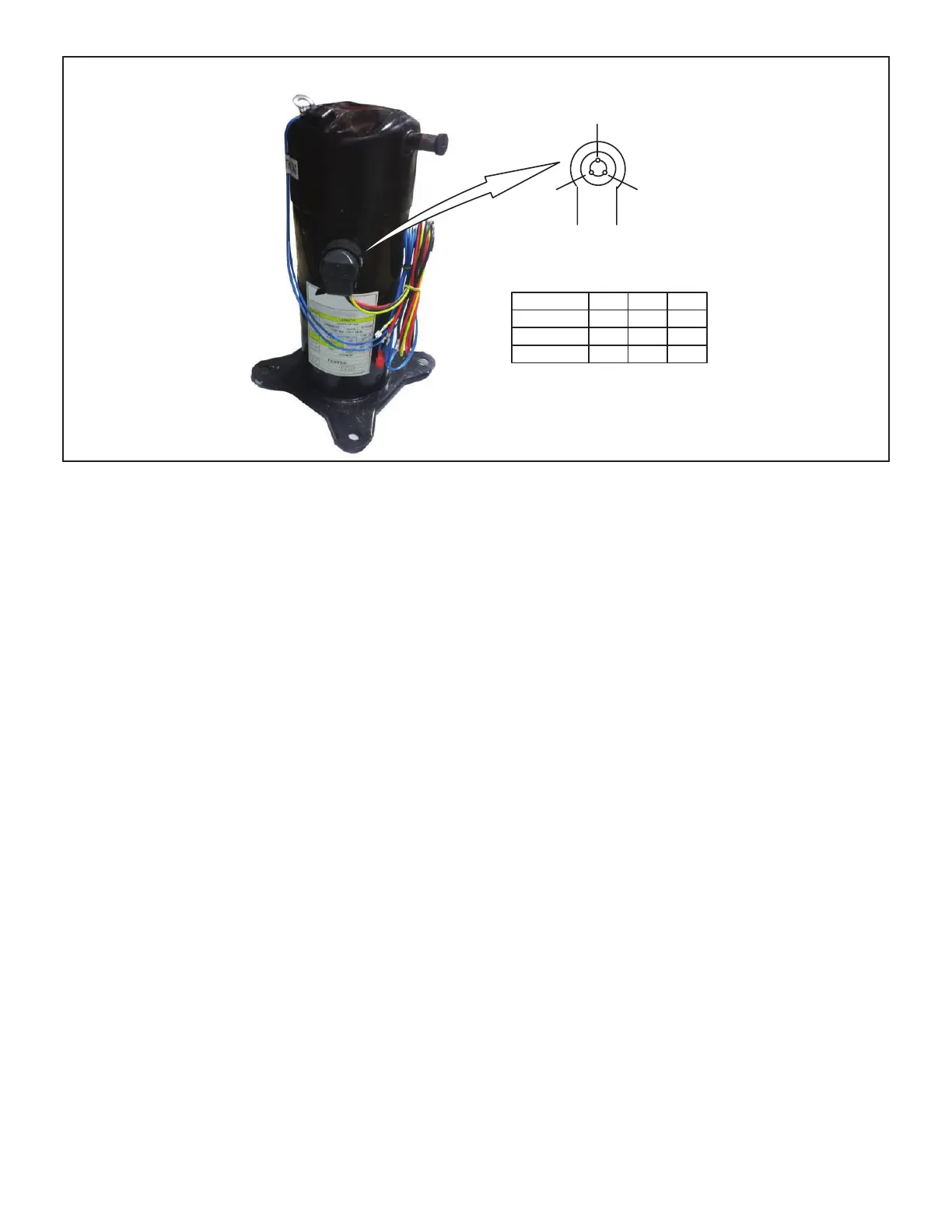

FIGURE 10
