Page 20

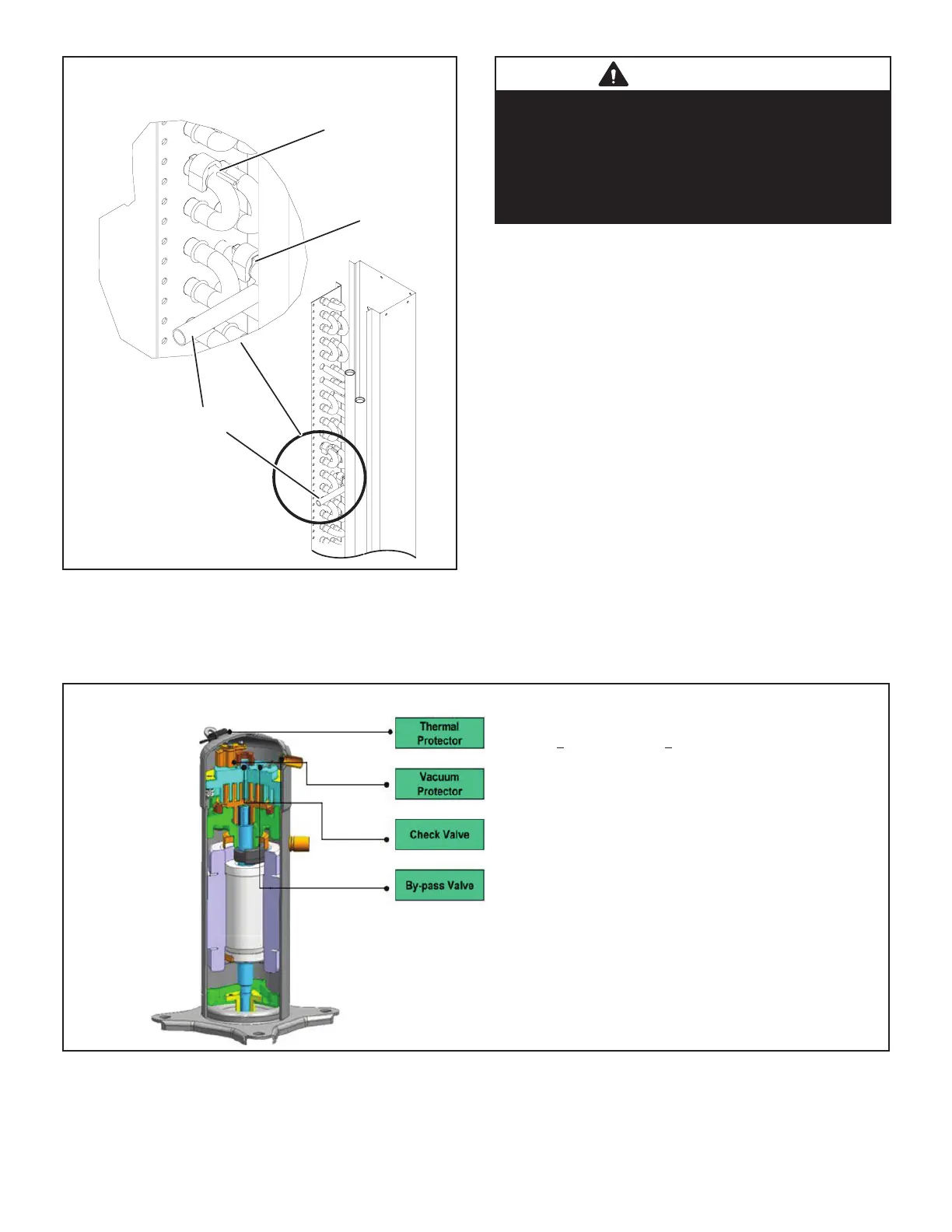

THERMISTOR LOCATION RT44 & RT48
036-048 CONDENSER COIL
(VIEW FROM FRONT SIDE OF UNIT)
RT48
RT44
LIQUID LINE
EXIT
FIGURE 8
WARNING
Electrical shock hazard. Compressor must be
grounded. Do not operate without protective cover
over terminals. Disconnect power before removing
protective cover. Discharge capacitors before
servicing unit. Failure to follow these precautions
could cause electrical shock resulting in injury or
death.
5-Variable Speed Compressor B1
All units use one variable speed scroll compressor. See
“SPECIFICATIONS” and “ELECTRICAL DATA” (table of
contents) or compressor nameplate for compressor spec-
COMPRESSOR SAFETY DEVICES
Temperature protection:
Opens 248+
9°F; Closes 168.8 +18°F
Low suction pressure protection:
Opens below 20 psig
Prevents reverse rotation after stop and increased Cd value
By-passes liquids during compression.
FIGURE 9
