Lennox MCA Series Service Manual

6
2. Indoor/Outdoor Matches
Indoor Unit Type Outdoor Unit Indoor Unit
Cooling
Capacity
SEER EER
AHRI
Reference
Wall-Mounted
Ductless
MCA009S4S-1P MWCA009S4-1P 9,000 19.00 11.10 202515503
MCA012S4S-1L MWCA012S4-1L 12,000 16.50 10.00 202515502
MCA012S4S-1P MWCA012S4-1P 11,500 19.00 11.10 202515504
MCA018S4S-1P MWCA018S4-1P 17,000 20.00 10.80 202515505
MCA024S4S-1P MWCA024S4-1P 22,000 19.00 10.90 202515506
RatingsareAHRIcertiedtoAHRIStandard210/240(with25ft.ofconnectingrefrigerantlines);95°Foutdoorairtemperature,80°Fdb/67°Fwbenteringevaporatorair.

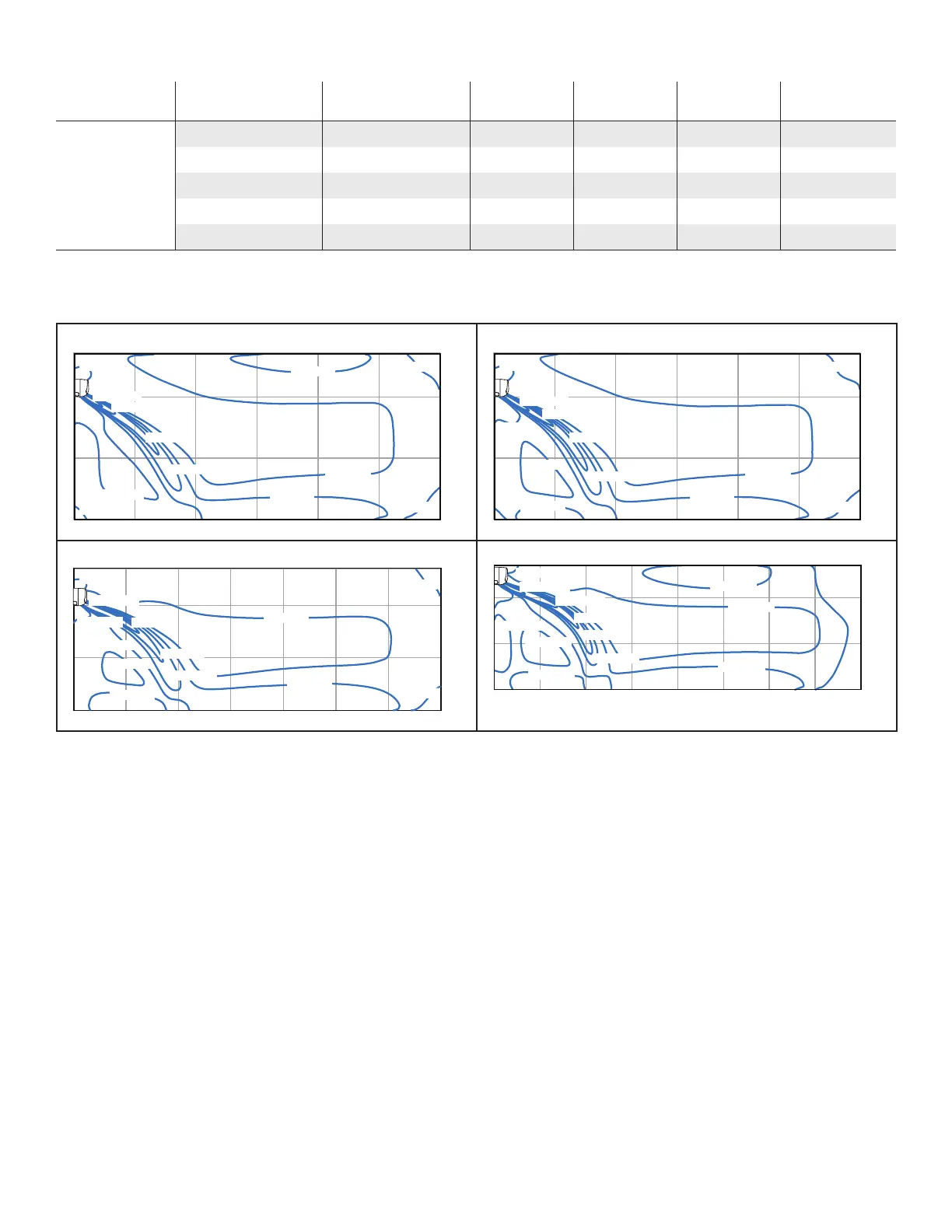

3. Air Throw Data
8 ft. 9 in.
6 ft. 6 in.
3 ft. 3 in.
0 ft. 0 in.
0 ft. 0 in. 3 ft. 3 in. 6 ft. 6 in. 9 ft. 8 in. 13 ft. 1 in. 19 ft. 7 in.
MWCA009S4 - COOLING
16 ft. 4 in.
1.6 ft./sec.
3.2 ft./sec.
4.9 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
3.2 ft./sec.
6.6 ft./sec.
8.2 ft./sec.
11.5 ft./sec.
8 ft. 9 in.
6 ft. 6 in.
3 ft. 3 in.
0 ft. 0 in.
0 ft. 0 in. 3 ft. 3 in. 6 ft. 6 in. 9 ft. 8 in. 13 ft. 1 in. 19 ft. 7 in.
MWCA012S4 - COOLING
16 ft. 4 in.
1.6 ft./sec.
3.2 ft./sec.
4.9 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
3.2 ft./sec.
6.6 ft./sec.
8.2 ft./sec.
11.5 ft./sec.
1.6 ft./sec.
8 ft. 9 in.
6 ft. 6 in.
3 ft. 3 in.
0 ft. 0 in.
0 ft. 0 in. 3 ft. 3 in. 6 ft. 6 in. 9 ft. 8 in. 13 ft. 1 in. 19 ft. 7 in.
MWCA018S4 - COOLING
16 ft. 4 in. 23 ft. 0 in.
13.4 ft./sec.
7.5 ft./sec.
9.2 ft./sec.
1.6 ft./sec.
3.0 ft./sec.
1.6 ft./sec.
4.9 ft./sec.
3.0 ft./sec.
3.0 ft./sec.
1.6 ft./sec.
3.0 ft./sec.
1.6 ft./sec.
1.6 ft./sec.
8 ft. 9 in.
6 ft. 6 in.
3 ft. 3 in.
0 ft. 0 in.
0 ft. 0 in. 3 ft. 3 in. 6 ft. 6 in. 9 ft. 8 in. 13 ft. 1 in. 19 ft. 7 in.
MWCA024S4 - COOLING
16 ft. 4 in. 23 ft. 0 in. 26 ft. 2 in.
14.8 ft./sec.
8.2 ft./sec.
9.8 ft./sec.
6.6 ft./sec.
4.3 ft./sec.
4.3 ft./sec.
4.3 ft./sec.
2.3 ft./sec.
11.5 ft./sec.
2.3 ft./sec.
4.3 ft./sec.
4.3 ft./sec.
