Lennox MCFA036S4-*P

101
22. Multi-Zone Outdoor Unit LEDs and SW1 Locations
PushtheswitchSW1tocheckthestatesoftheunitwhenitisoperational.Thedigitaldisplaywilltogglethroughhestates
whenSW1ispressed.

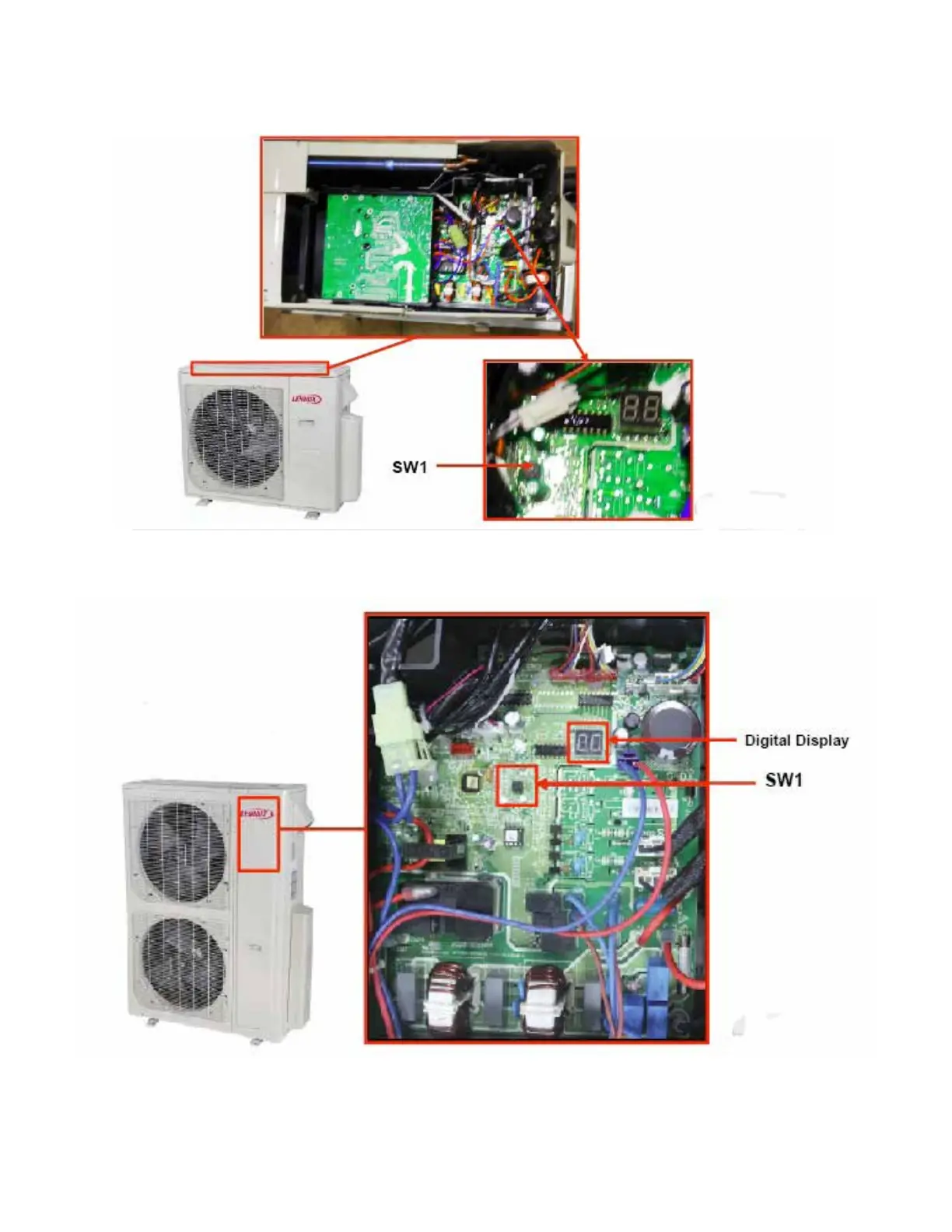

Figure 69. Typical Location of LEDs and SW1 - 18K and 30K Multi-Zone Outdoor Units
Figure 70. Typical Location of LEDs and SW1 - 36K and 48K Multi-Zone Outdoor Units
