158

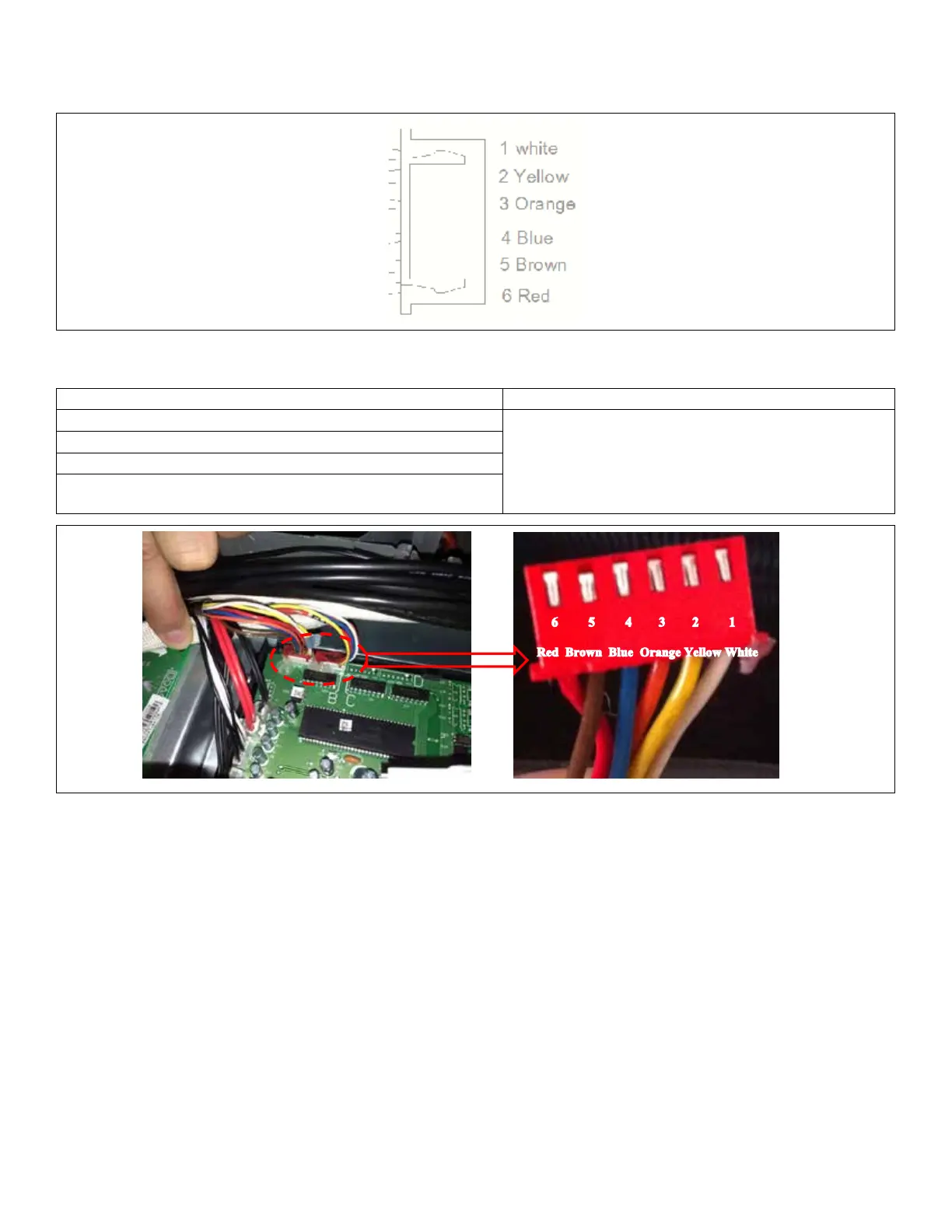

29.5. EXV Check

Disconnecttheconnectors.

Figure 80. Connector Pin-Out

Table 19. Resistance

Color of lead wire Normal Value

Red-Blue

About50Ω

Red-Yellow

Brown-Orange

Brown-White

Figure 81. Connector Pin-Out
