4

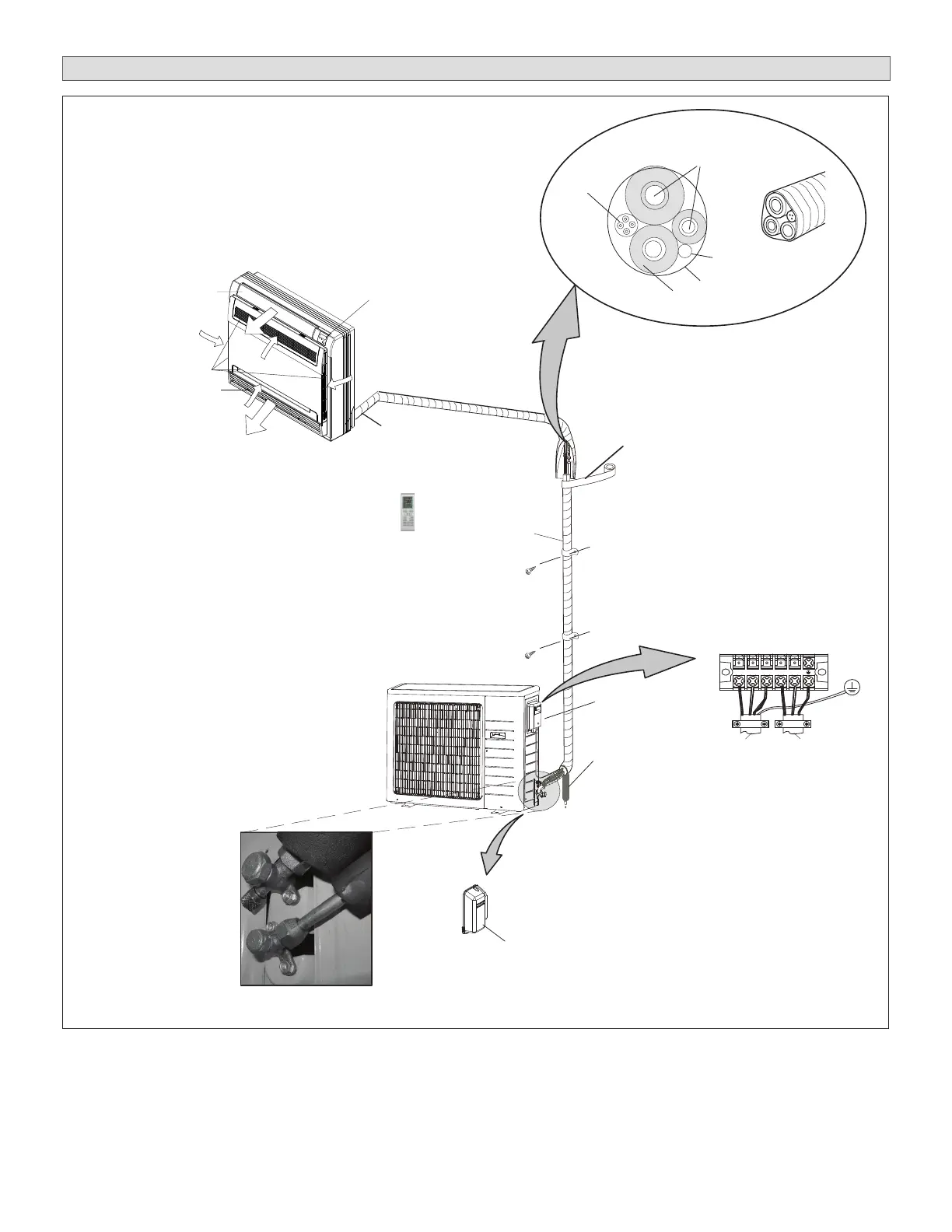

Typical Single-Zone System Components
Wireless Remote
Control
Outdoor Unit
012-036 shown
Utility
Bundle
208/230V Outdoor Unit
Terminal Block
To Indoor
Unit
To Power
Supply
Access cover
for valves
IMPORTANT - The refrigerant
metering device for this system is
located in the outdoor unit. This
makes it necessary to insulate the
refrigerant lines individually to
prevent sweating.
UV-rated tape (field-provided)
Wiring
Condensate drain line
(wrapped in foam insulation)
Refrigerant Line Set, Condensate Line
And Indoor / Outdoor Cable
(field-provided)
Tape
Line set
(wrapped in foam insulation)
Communication cable
036 and 048 only
1 2 3 L1 L2
Condensate drain
from Indoor Unit
Liquid and vapor shut off valves
IMPORTANT - Condensate drain line must always
be located at the bottom of the
bundle.)
Refrigerant connecting
pipe and drain hose
Display panel
Air inlet (with air filter installed)
Air flow louver (at air outlet)
Air flow louver (at air outlet)
Figure 1. Typical System Shown
