6

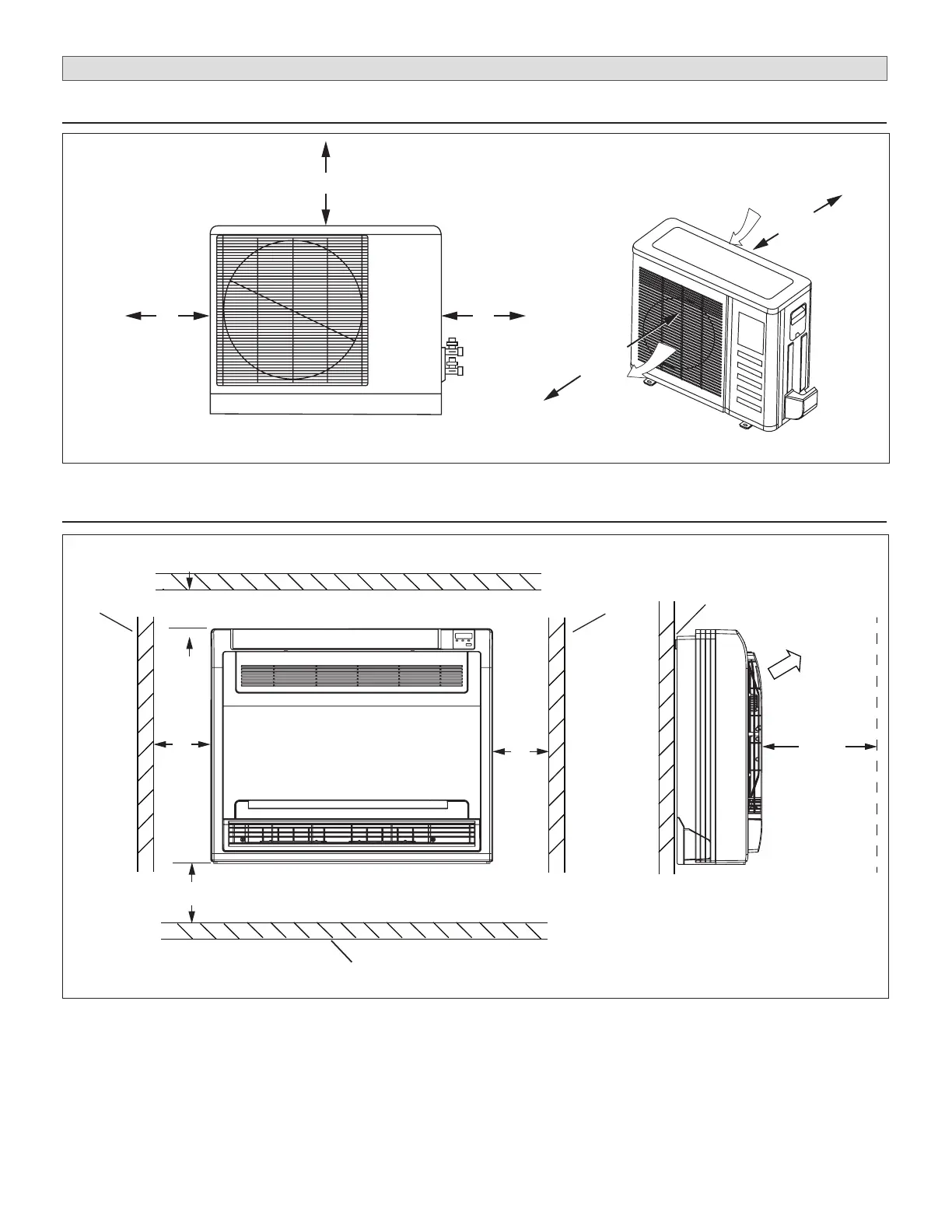

System Clearances
Outdoor Unit
24 (610)
Air Outlet
Air Inlet
24
(610)
12
(305)
79
(2007)
1
12
(305)
1
Minimum rear clearance can be 6 inches (152 mm) when mounted on brackets
and with no obstructions on the other three sides.
Figure 3. Outdoor Unit Clearances - Inches (mm)
Indoor Unit
FRONT VIEW
SIDE VIEW
4
(102)
WALL
SUPPLY
AIR
40 (1016)
(Service
Clearance
Front of Unit)
Unit Flush with Wall
4
(102)
WALL
4
(102)
FLOOR
6
(152)
Figure 4. Indoor Unit Clearances - Inches (mm)
