Lennox MLA Series User Manual

5

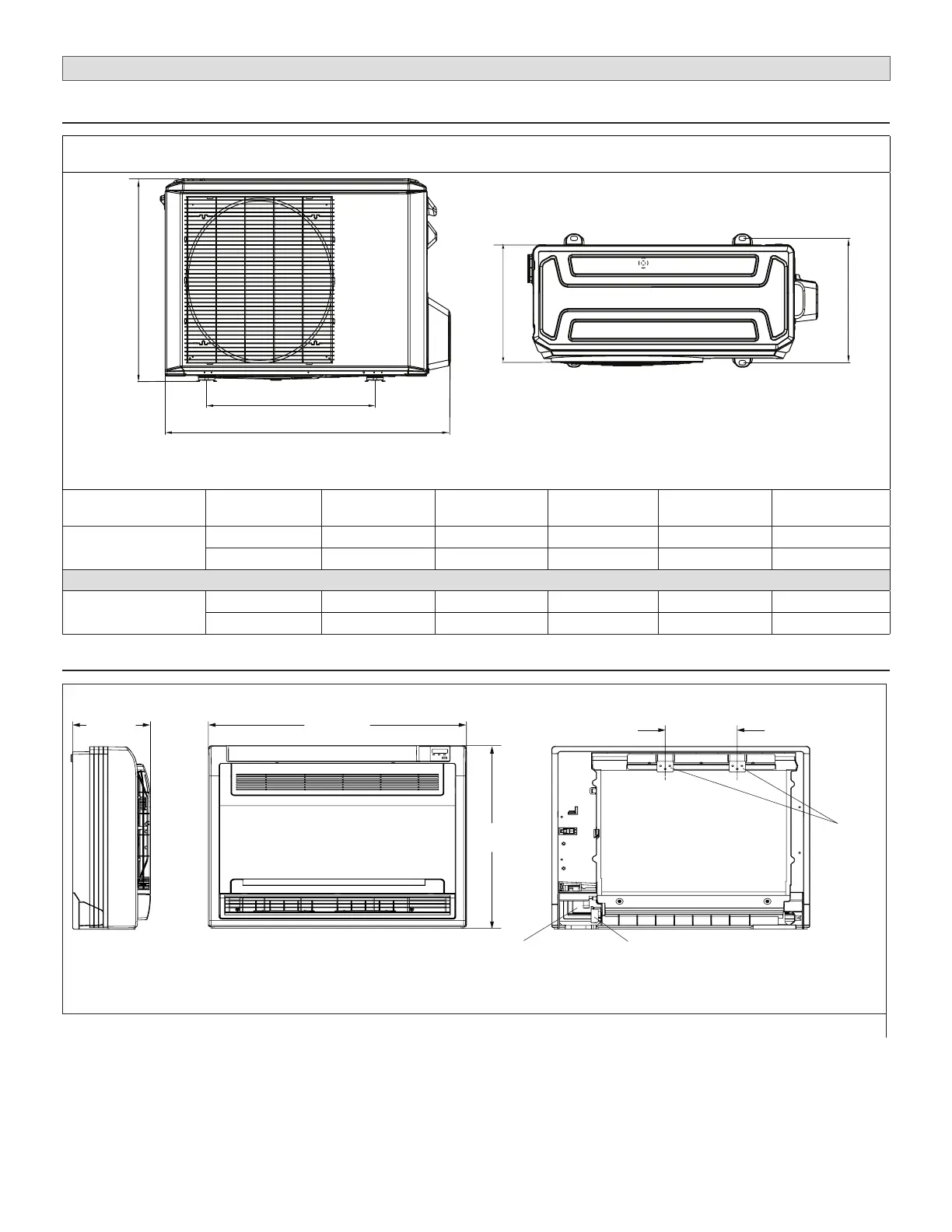

System Dimensions
Outdoor Units
Table 1. Outdoor Unit Dimensions - Inches (mm)
A
E
D
B
C
TYPICAL APPEARANCE OF UNITS
Model
Unit of
Measurement
A B C D E
MPB012S4S-*P
inches 34-1/4 20-1/4 21-7/8 13-1/8 13-3/8
mm 870 514 556 333 340
MLA012S4S-*P
inches 34-1/4 20-1/4 21-3/4 12-1/4 13-3/8
mm 870 514 552 311 594
Indoor Units
Hanging
Brackets (2)
FRONT VIEW
SIDE VIEW
BACK VIEW
MFMA012S4
27-1/2 (699)8-1/4 (210)
23-5/8
(600)
7-11/16 (195)
Condensate Drain
Outlet
Refrigerant
Piping
Figure 2. MFMA Indoor Unit Dimensions - Inches (mm)
