Lennox SIGNATURE SLP99DFV

Page 3

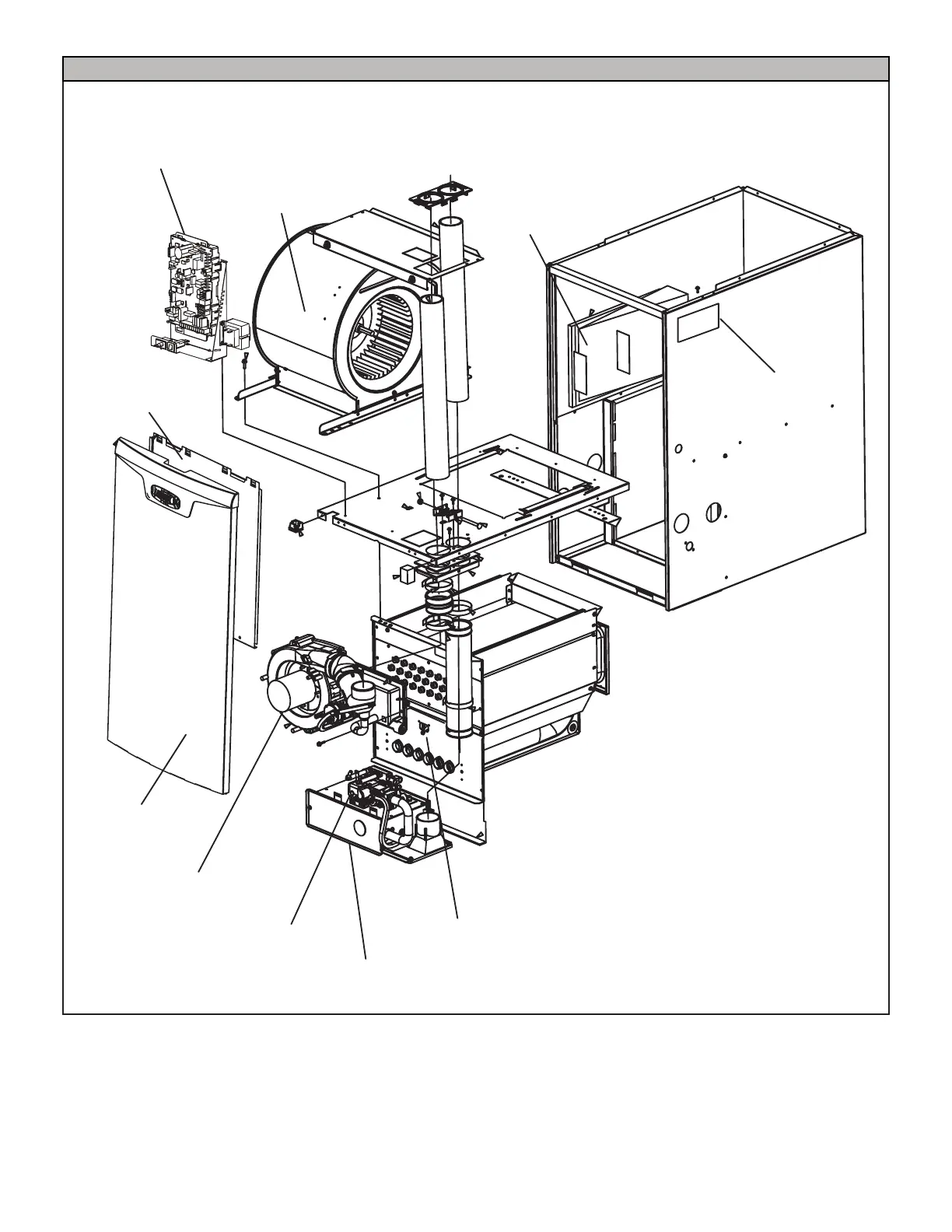

Parts Arrangement
BURNER BOX ASSEMBLY
GAS VALVE
ACCESS PANEL
COMBUSTION AIR INDUCER
BLOWER
ACCESS
PANEL
BLOWER ASSEMBLY
(Variable Speed Blower
Motor Is Hidden)
BAG ASSEMBLY
CONTROL BOX
(includes variable capacity
integrated control,
transformer, circuit breaker
and door switch)
PRIMARY LIMIT
SIDE VENT
PATCH PLATE
FIGURE 1
