Lennox VRF VEWCL1B - 5 Installation and Commissioning

8

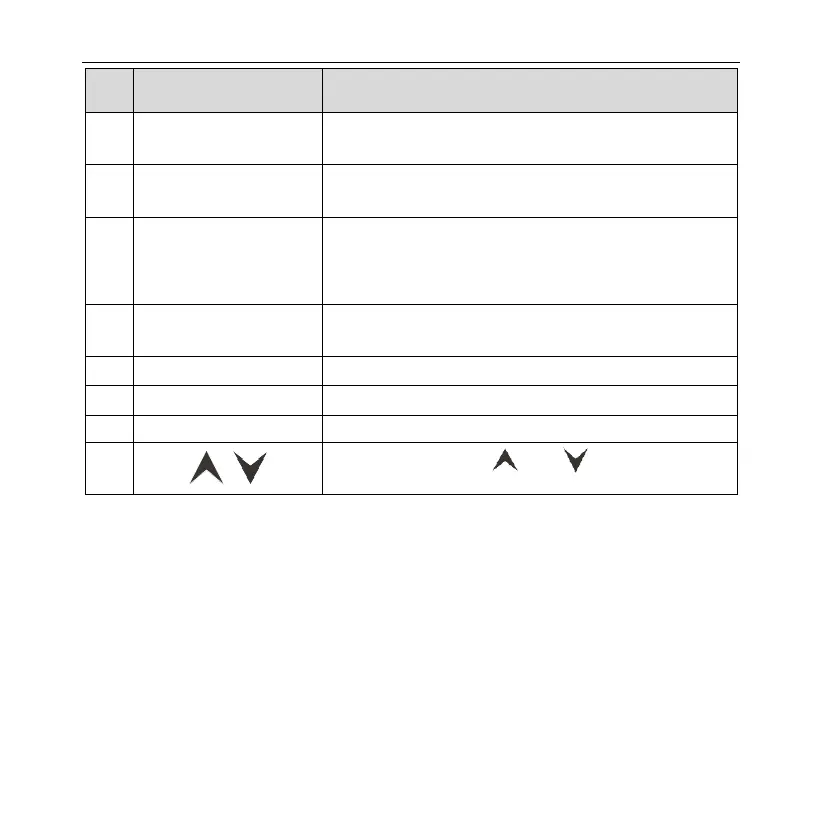

No.
Buttons
Instructions
3
SLEEP
Set Sleep mode
4
FAN
Switch among auto, low speed, low-medium speed,
medium speed, medium-high speed, high speed and
turbo status
6
MODE
Switch Auto,Cooling, Dry, Fan, Heating, Floor Heating,
3D Heating and Space Heating modes for indoor unit.
(Note: The Floor Heating, 3D Heating and Space Heating
function icon will show up when the unit has those
functions.)
7
FUNCTION
Switch among Air, Quiet, Light, Health, Absence, Save,
Clean, and X-fan functions.
8
TIMER
Timer setting
9
SWING
Set up and down swing status
10
ON/OFF
Indoor unit On/Off
2+5
+
Simultaneously press “ ” and “ ” for 5s to enter or
cancel the Child Lock function.
5 INSTALLATION AND COMMISSIONING
There’re two editions of wired controller. The parts of wired controller are
different.
Edition one :
Wired Controller VEWCL1B
