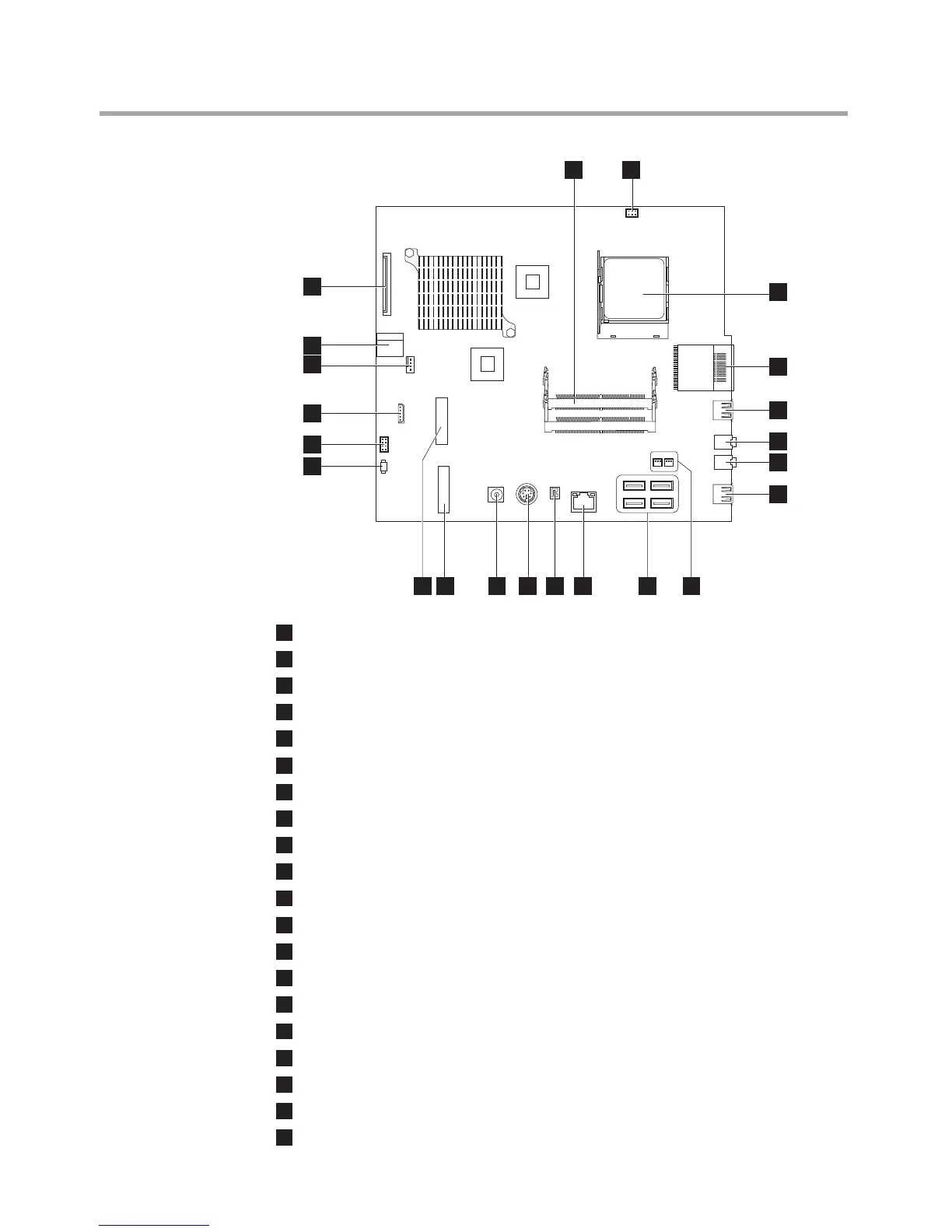

Chapter 7. Locations
27
18
19
20
21
22
17
3
1 2
4
5
6
7
8
910111213141516
1
Memory module connector
2
Camera connector
3
Microprocessor
4
Card reader connector
5
USB connector
6
Headphone connector
7
Microphone connector
8
USB connector
9
Speaker connectors
10
USB connectors (4)
11
Ethernet connector
12
1394 connector
13
PS/2 keyboard connector
14
Power connector
15
WLAN connector
16
TV tuner card connector
17
Power button connector
18
Function panel connector
19
SATA power connector
20
System fan connector
