1030 Sub Board and RF Wire
Foraccess,removetheseFRUsinorder:
• “1010BackCover”onpage 27
• “1020Battery”onpage 29

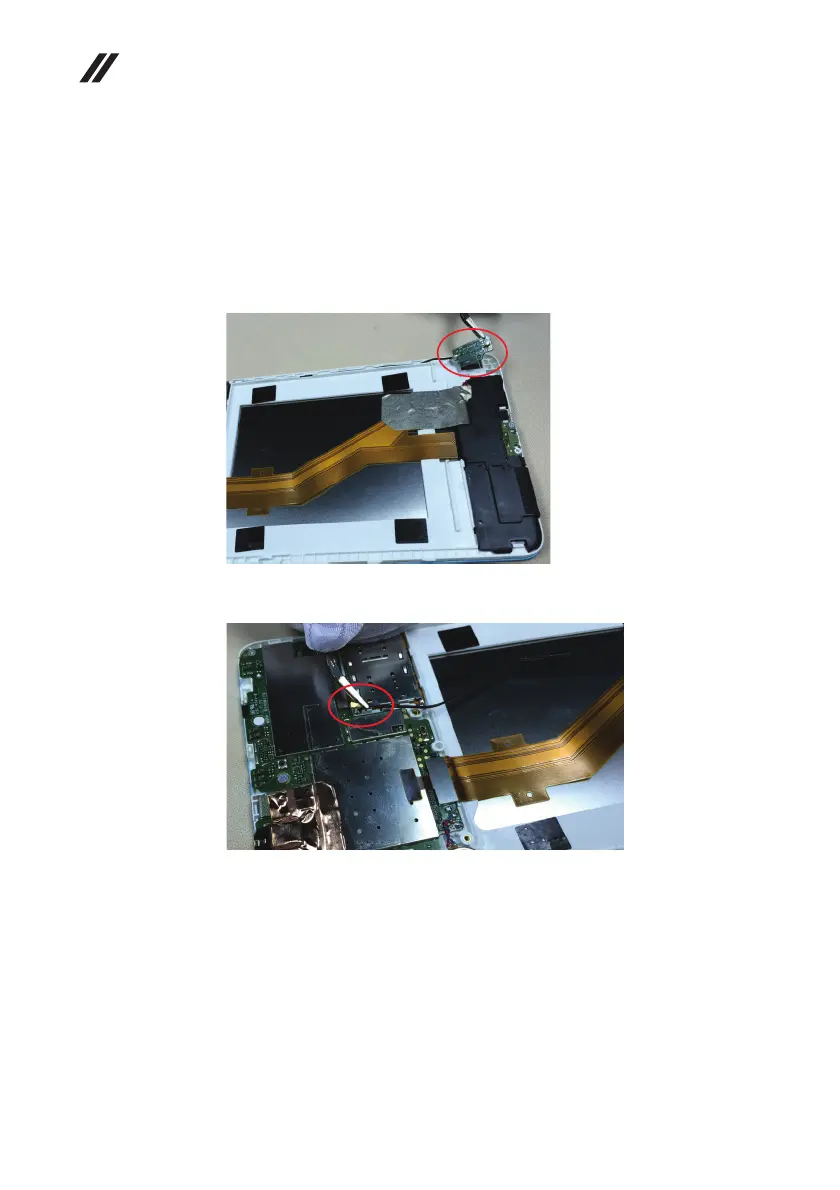

Figure3.RemovalstepsofsubboardandRFwire
Usetweezerstopryupthesubboard.
CarefullypryofftheRFwireterminalsfromtheRFconnectoronthemainboard,
andremovetheRFwiresandsubboard.
Note:theWi‐FiboarddoesnothaveRFwireterminals,anRFwireorminiboard.
