Lenovo TAB3 7 Plus - 1050 USB Board and Speaker Box

LenovoTAB37PlusHardwareMaintenanceManual
34
1050 USB Board and Speaker Box
Foraccess,removetheseFRUsinorder:
• “1010BackCover”onpage 27
• “1020Battery”onpage 29

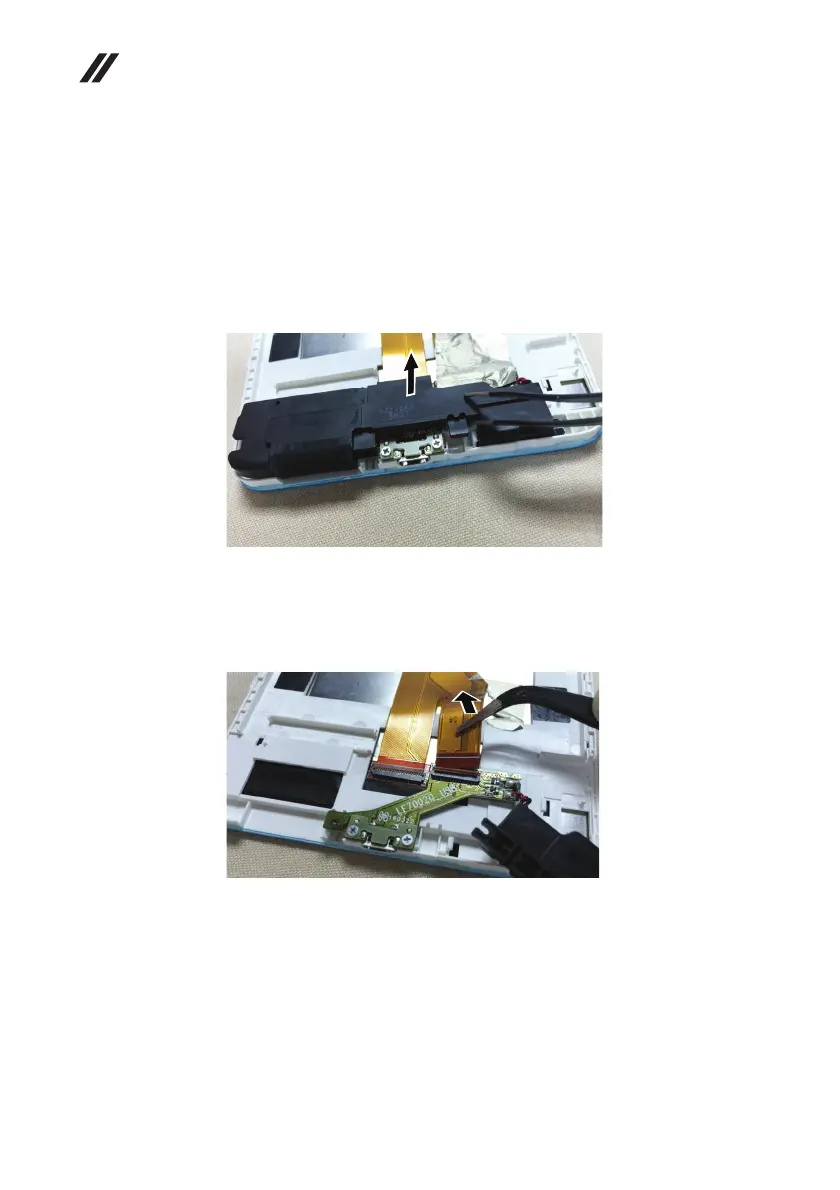

Figure5.RemovalstepsofUSBboardandspeakerbox
Usetweezerstogentlypryoffthespeakerbracketcomponentsandsettoone
side.
Note:becarefulnottodisconnectthesolderedwiretotherightofthespeakerbracket
component.
TearoffthesilveradhesivetapeandusetweezerstopryofftheZIPconnector
coverinordertodisconnecttheFPCandminiboardconnector.
