Lenovo TAB3 7 Plus - 1060 Main FPC

LenovoTAB37PlusHardwareMaintenanceManual
36
1060 Main FPC
Foraccess,removetheseFRUsinorder:
• “1010BackCover”onpage 27
• “1020Battery”onpage 29
• “1050USBBoardandSpeakerBox”onpage 34

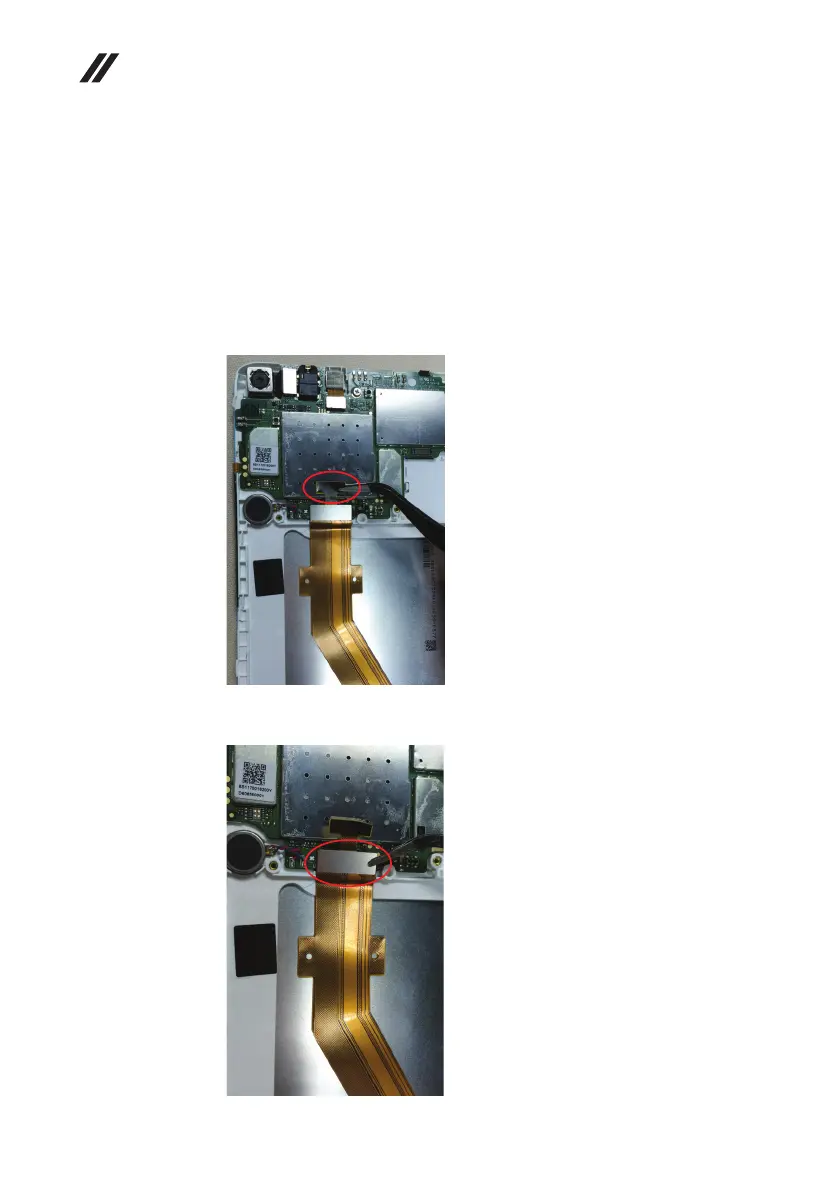

Figure6.RemovalstepsofmainFPC
Detachthegroundingdouble‐sidedadhesiveonthetopterminalsofthemain
FPC.
UsetweezerstogentlypryaparttheB2Bconnectoronthemainboard,and
removetherigid‐flexPCB.
