Lenovo TAB3 7 Plus - 1090 Receiver

LenovoTAB37Plus
43
1090 Receiver
Foraccess,removetheseFRUsinorder:
• “1010BackCover”onpage 27
• “1020Battery”onpage 29
• “1030SubBoardandRFWire”onpage 32
• “1040SIMCardHolderFPC”onpage 33
• “1050USBBoardandSpeakerBox”onpage 34
• “1060MainFPC”onpage 36
• “1070Camera”onpage 38
• “1080MainBoard”onpage 40

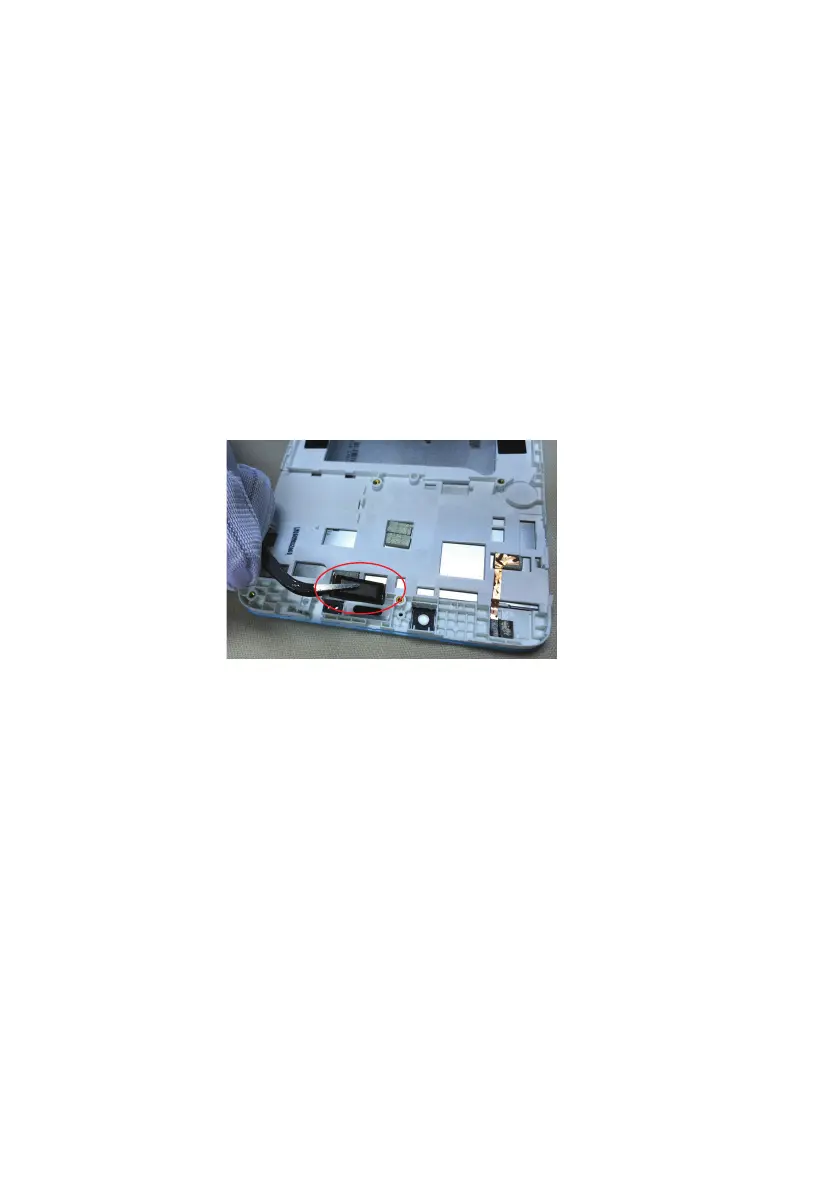

Figure9.Removalstepsofreceiver
Usetweezerstocarefullyremovethereceiver.
Note:thereceiverisconnectedtothefrontcasewithdouble‐sidedadhesion.When
removing,pleasebecarefulnottodamagethereceiver.
