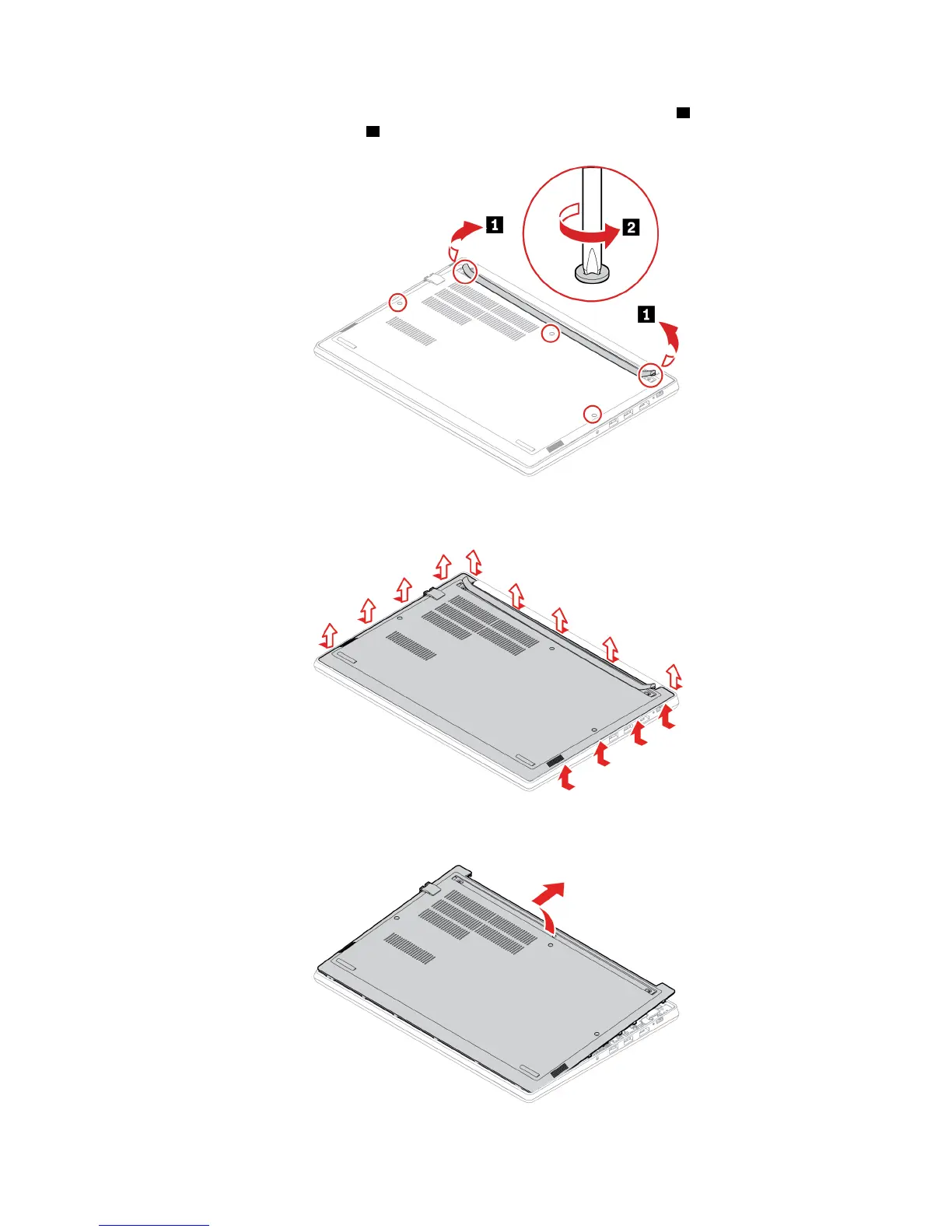

4. Pivot the two ends of the rubber foot upward to reveal the screws underneath 1 . Loosen the screws that
secure the base cover assembly
2 .
5. Pivot the hook upward to disengage the hook from the chassis as shown.
6. Remove the base cover assembly.
Chapter 6. CRU replacement 41
