Lenovo ThinkPad E490 - Page 64

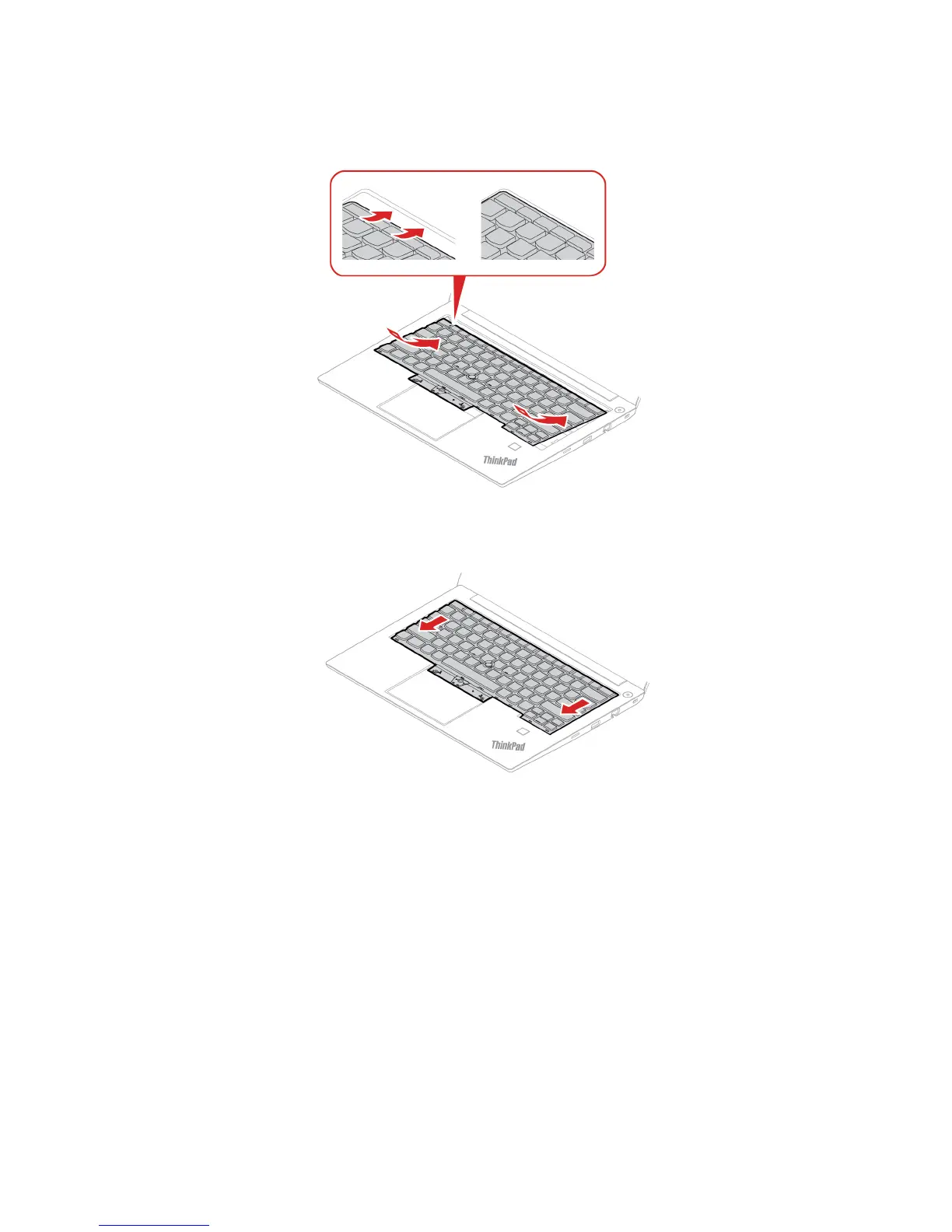

10. Insert the keyboard into the keyboard bezel as shown. Ensure that the front edge of the keyboard (the
edge that is close to the display) is under the keyboard bezel.
11. Slide the keyboard in the direction as shown by the arrows. Ensure that the latches are secured under
the keyboard frame.
58 E490/E490s/R490 User Guide
