4
4
1190

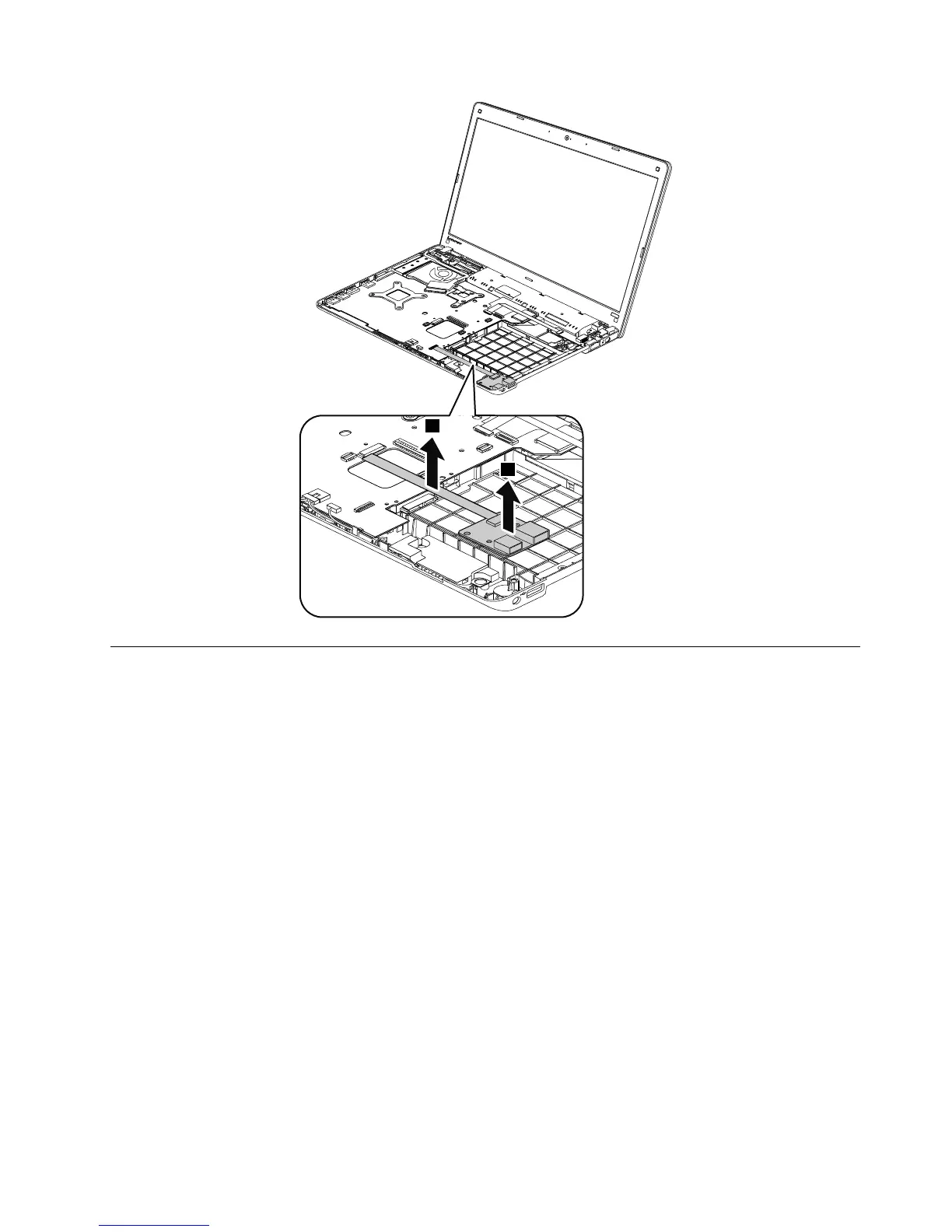

RJ45
sub
card
F
or
access,
remove
these
FRUs
in
or
der:
•
“1010
Battery
pack”
on
page
62
•
“1020
Large
bottom
cover”
on
page
63
•
“1040
Optical
drive
or
blank
bez
el”
on
page
65
•
“1120
Keyboard”
on
page
76
•
“1130
Keyboar
d
bezel”
on
page
80
Chapter
9
.
Removing
or
replacing
a
FRU
91
96
98
Table of Contents
Default Chapter
3
Table of Contents
3
About this Manual
5
Chapter 1. Safety Information
7
General Safety
7
Electrical Safety
8
Safety Inspection Guide
9
Handling Devices that Are Sensitive to Electrostatic Discharge
9
Grounding Requirements
10
Safety Notices (Multilingual Translations)
10
Laser Compliance Statement (Multilingual Translations)
23
Chapter 2. Important Service Information
29
Strategy for Replacing Frus
29
Strategy for Replacing a Hard Disk Drive
30
Important Notice for Replacing a System Board
30
How to Use Error Codes
30
Strategy for Replacing Frus for CTO, CMV, and GAV Products
30
Product Definition
30
FRU Identification for CTO, CMV, and GAV Products
31
Chapter 3. General Checkout
33
What to Do First
33
Checkout Guide
34
Lenovo Solution Center
34
Quick Test Programs
34
UEFI Diagnostic Program
35
Bootable Diagnostic Programs
35
Power System Checkout
36
Checking the Ac Power Adapter
36
Checking Operational Charging
37
Checking the Battery Pack
37
Checking the Backup Battery
38
Chapter 4. Related Service Information
39
Restoring the Factory Contents Using the Recovery Disc Set
39
Using the Windows Recovery Programs on the Windows 8 Operating System
40
Passwords
41
Power-On Password
41
Hard Disk Password
41
Supervisor Password
42
How to Remove the Power-On Password
42
How to Remove the Hard Disk Password
42
Power Management
43
Screen Blank Mode (for the Windows 7 Operating System Only)
43
Sleep Mode
43
Hibernation Mode
43
Symptom-To-FRU Index
44
Numeric Error Codes
44
Error Messages
45
No-Beep Symptoms
45
LCD-Related Symptoms
45
Intermittent Problems
46
Undetermined Problems
46
Copyright Lenovo
49
Chapter 5. Status Indicators
49
Chapter 6. Special Keys
51
Chapter 7. Locations
53
Locating Computer Controls, Connectors, and Indicators
53
Front View
54
Rear View
56
Bottom View
56
Locating Frus and Crus
56
Major Frus and Crus
58
LCD Frus and Crus
60
Looking up FRU Information
61
Chapter 8. FRU Replacement Notices
63
Screw Notices
63
Retaining Serial Numbers
64
Restoring the Serial Number of the System Unit
64
Retaining the UUID
65
Reading or Writing the ECA Information
65
Chapter 9. Removing or Replacing a FRU
67
General Guidelines
67
Before Servicing Thinkpad Edge E530 and E530C Models
68
1010 Battery Pack
68
1020 Large Bottom Cover
69
1030 Small Bottom Cover
70
1040 Optical Drive or Blank Bezel
71
1050 Memory Modules
71
1060 Hard Disk Drive Assembly
72
1070 PCI Express Mini Card for Wireless LAN
74
1080 PCI Express Mini Card for Wireless WAN or Msata Solid State Drive
75
Step Screw (Quantity)
78
M2 × 3 MM, Wafer-Head, Nylon-Coated
78
1090 Backup Battery
79
For Access, Remove These Frus in Order
79
1010 Battery Pack
79
1030 Small Bottom Cover
79
1100 Thermal Fan
80
1110 Thermal Pipes
80
1120 Keyboard
82
1130 Keyboard Bezel
86
1140 Cpu
88
1150 System Board Assembly
89
1160 Speaker Assembly
92
1170 Power Button Sub Card
95
Color Torque Black 0.181 Nm (1.85 Kgf-CM)
95
1180 I/O Sub Card with USB Connector and Audio Jack
96
1190 RJ45 Sub Card
97
1200 Optical Drive Sub Card
99
1210 LCD Unit
100
1220 Base Cover Assembly and DC-In Connector
103
2010 LCD Bezel Assembly
105
2020 LCD Panel and Hinges
107
2030 Integrated Camera and LCD Cables
109
2040 Wireless Antenna Assembly and LCD Rear Cover Assembly
111
Appendix A. Notices
115
Electronic Emission Notices
116
Trademarks
116
