1140 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1030 Hard disk drive” on page 79
v “1050 Keyboard” on page 82
v “1100 Keyboard bezel” on page 92
v “1130 Fan assembly” on page 103

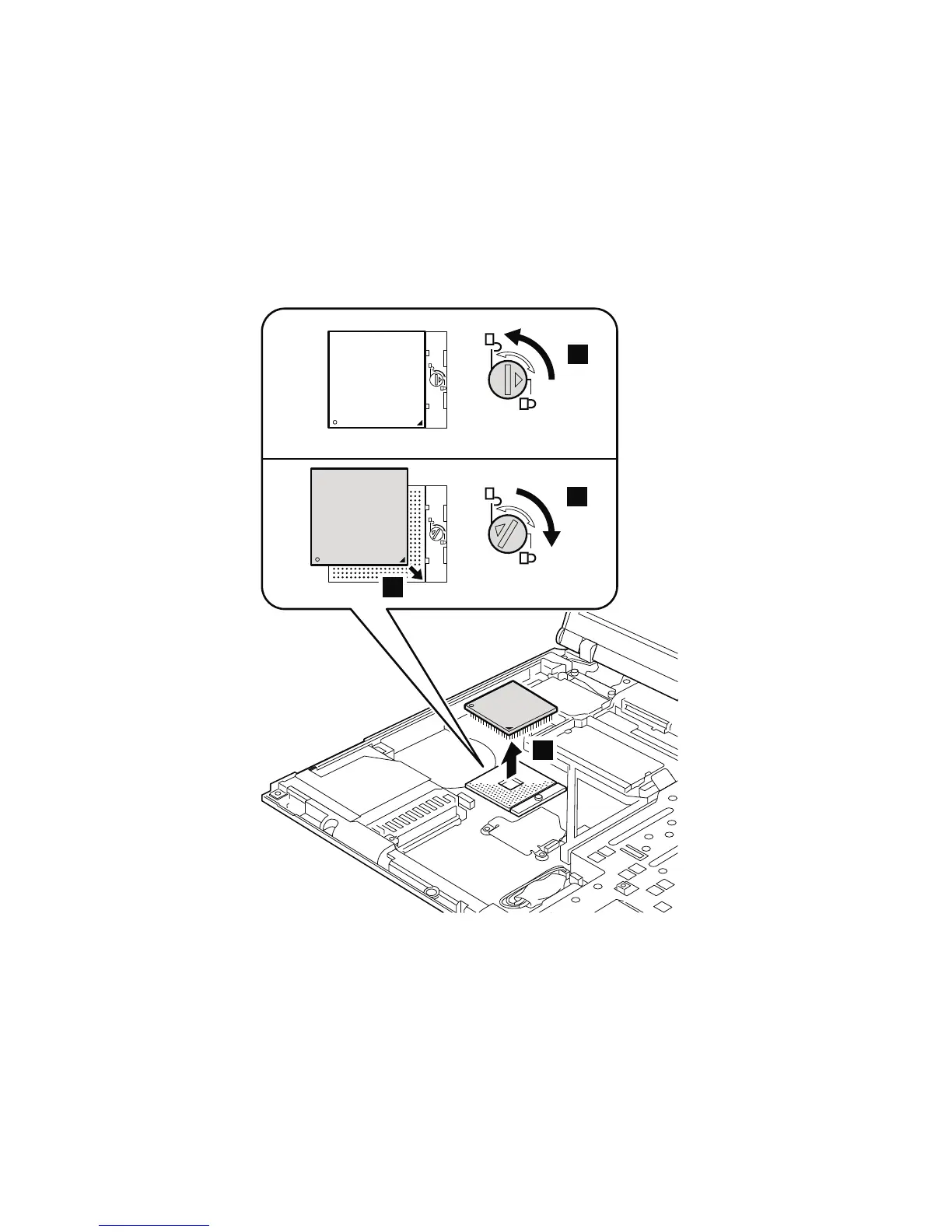

Rotate the head of the screw in the direction of arrow 1
to release the lock; then remove the CPU 2.
2
1
b
a
When installing: Place the CPU on the CPU socket a,
and then rotate the head of the screw in
the direction of arrow b to secure the
CPU.
Removing and replacing a FRU
104 R50e, R51e and R52 Series
